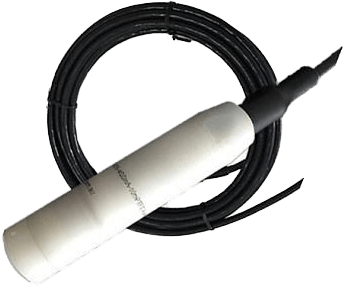

ULB7 PVDF Housing Level Transmitter is made by using imported high accuracy and stable ceramic sensors.

Through precise structural design and temperature compensation, signal amplified and V/I transforming. Its PVDF material housing is full sealed design.

The cable of ULB7 is put in PTFE pipe, simultaneously with breathing pipe which makes sensor's back pressure intensity connect to atmosphere pressure.

To assure ULB7 PVDF Housing Level Transmitters have long life, all outside linking parts on housing and cables have been sealed. The unique internal structure of ULB7 to make it has function of against condensation.
Features
  • Protection: IP68
  • Suitable for corrosive media measurement like strong acid or strong alkali
  • Anti-interference, good long-term stability
  • PVDF housing, PTFE cable

Specifications

Measuring Ranges

  • 0 ~ 2 mH₂O...500 mH₂O

Overload Pressure

  • 200 % Full Scale

Output Signal

  • 4~20 mA, 0~5 V, 0~10 V, 1~5 V

Accuracy

  • 0.25 % Full Scale, 0.5 % Full Scale (Standard)

Load Resistance

  • RL = (U-12 V)/0.02 A (4~20 mA Current Output), U-Loop Voltage (V)

Supply Voltage

  • 12 ~ 36 Vdc

Compensated Temperature Range

  • -10° ~ 70° C

Storage Temperature Range

  • -40° to 100° C

Electrical Connection

  • Ø 9 mm Shielded Cable with Vent Hose (PTFE)

Material of Wetted Part and Housing

  • PVDF

Material of Pressure Membrane

  • Ceramic (Other Materials are available on request)

  • ULB7 PVDF Housing Level Transmitters have been widely used for Level Measurement of Corrosive Liquids as Strong Acid or Strong Alkali etc in Refinery, Chemical Plant etc.
