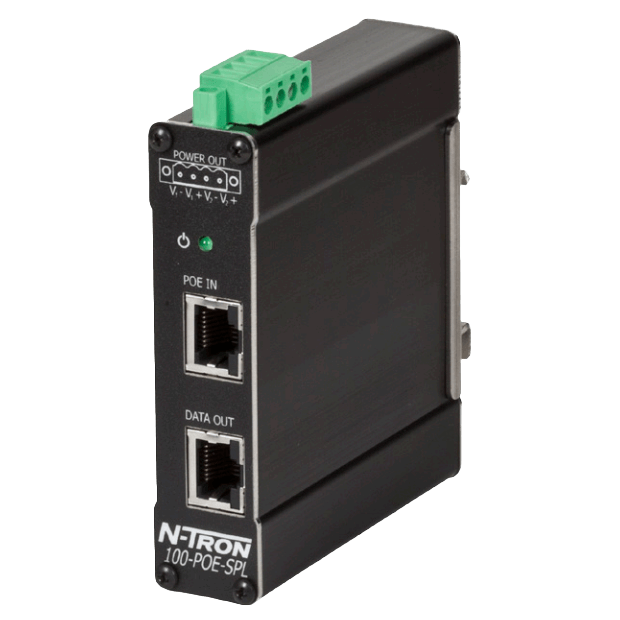

Red Lion 100-POE-SPL PoE Splitter

100-POE-SPL PoE Splitter

Brand: Red Lion Controls
Add Product to My Catalog

The N-Tron 100-POE-SPL is a Power over Ethernet splitter designed to accept Ethernet with PoE via Cat5 cable and output power via terminal block and Ethernet via RJ45.

This allows devices which are not PoE capable to be connected and powered by a Cat5 cable.

The 100-POE-SPL also allows legacy devices which are not PoE capable to be deployed without the need to provide a dedicated power supply.

The 100-POE-SPL is ideal for use with N-Tron’s 105TX-POE, 105FX-POE, 100-POE4 or other PoE sourcing equipment.

The 100-POE-SPL can be ordered with 12, 24, or 48 Volt DC output.
Features
  • Compact, space saving package
  • IEEE 802.3af compliant
  • One RJ-45 PoE Port (Data & Power In)
  • One RJ-45 Port (Data Out)
  • Unmanaged operation
  • Extended environmental specifications
    • -40º to 85º C (-40° to 185° F) operating temperature
  • Supports up to 15.4 Watts (cable and PSE dependent)
  • Full wire speed communications
  • Built in transient voltage suppression
  • Power status LED
  • Hardened metal DIN-Rail enclosure

1 - 3 of 3 Part Numbers
100-POE-SPL-12
100-POE-SPL-12
  • Model - Ethernet PoE Splitter, 12 Vdc Output
100-POE-SPL-24
100-POE-SPL-24
  • Model - Ethernet PoE Splitter, 24 Vdc Output
100-POE-SPL-48
100-POE-SPL-48
  • Model - Ethernet PoE Splitter, 48 Vdc Output
1 - 3 of 3 Part Numbers

View_Details

Specifications

Brand

Applications

  • Alternative Energy
  • Factory Automation
  • SCADA Systems
  • Security Surveillance
  • Transportation
  • Utilities

Approvals & Certifications

  • EN 55011 (Emissions), EN 61000-6-2,4 (Immunity)

Approvals & Certifications

  • ABS for Shipboard Applications
  • CE
  • DNV
  • FCC (CFR 47, Part 15, Subpart B, Class A)
  • GOST
  • IEC 61000-4-2, 3, 4, 5, 6
  • IEEE 1613 for Electric Utility Substations, 802.3, 802.3 u, 802.3ab, 802.3x, 802.3af/at, 802.1d/D/w, 802.1p, 802.1Q, 802.1x
  • RoHS
  • UL (C,US) 508 Class I, Div. 2, Groups A, B, C, D, T4, ICE

Circuit Protection

  • ESD Protection
  • Surge Protection

Electrical Connectors

  • 10/100Base-TX: Two (2) RJ45 Copper Ports

Environmental Protection

  • NEMA TS1
  • NEMA TS2

Indication

  • LED

Input

  • 10 mA at 48 V (No Load)
  • 46-54 Vdc

Mounting

  • DIN Rail Mounting

Operating Temperature

  • -40° to 85° C (-40° to 185° F)

Output

  • Steady Output Current: 320 mA at 48 Vdc (Full Load)

Power

  • 15.4 Watts (Cable & PSE Dependent)

Wiring

  • Wiring Clearance Front: 2” (5.08 cm)
  • Wiring Clearance Top: 1” (2.54 cm)
