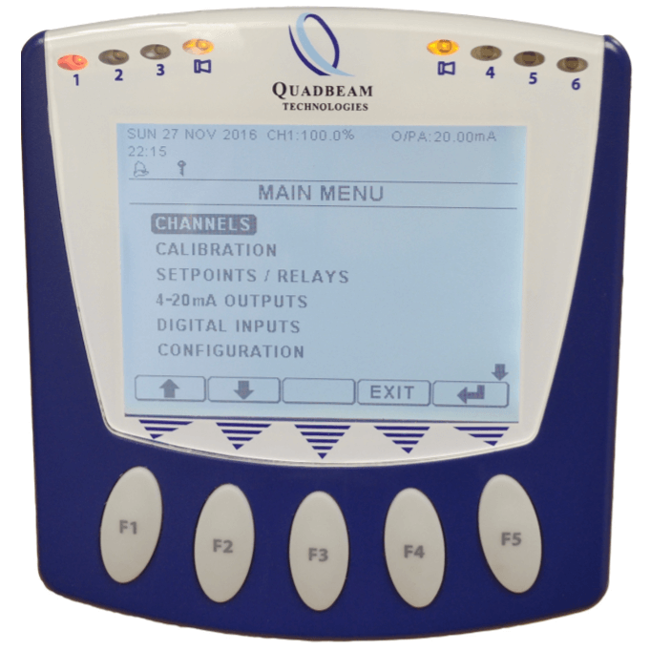

MXD73 Suspended Solids & Turbidity Transmitter

Brand: Quadbeam Technologies

Provides accurate, repeatable and reliable process monitoring of Suspended Solids and Turbidity using Quadbeam Technologies S10, S20, S40 or T30 sensors.
Features
  • Compact 96 DIN IP66 Panel Mount
  • Up to 3 Sensors per Transmitter.
  • Parameters include Suspended Solids, Turbidity, Conductivity, pH/Redox and DO.
  • Multiple measurements can be selected and displayed.
  • Simple menu driven interface.
  • User selectable bar graph display option.
  • SD card interface allows trouble free saving of configuration and simplifies software upgrades.
  • Base model includes 2 relays and a single 4-20mA output. Can be expanded to a 6 relay outputs and 6 isolated 4-20mA outputs.
  • Simple 2 point or up to 9 point lineariser. Manual or automatic linearisation sample data input, making the process simple and fast.
  • 8 independent programmable digital inputs with user selectable operations.
  • Options include Data Logging with Live Trending and Modbus RS485

Specifications

Ambient Temperature Range

  • -20° to 50° C (-4° to 122° F)

Applications

  • Dairy Processing
  • Food & Beverage Processing
  • Mining
  • Pulp & Paper
  • Wastewater Monitoring & Treatment

Approvals & Certifications

  • 2004/108/EC Using BS EN 61326-1: 2013

Communication

  • ASCII Protocol
  • Baud Rate: 300, 600, 1,200, 2,400, 4,800, 9,600, 19,200, 31,250, 38,400
  • RS-485
  • RTU

Display

  • 95 mm, LCD Display

Electrical Rating

  • 5 A at 250 Vac
  • 5 A at 30 Vdc

Environmental Protection

  • IP66

Linearity

  • 0.1 % of Range

Mounting

  • Panel Mount

Output

  • 0-20 mA, 1,000 ohms
  • 2 kV, Fully Isolated

Repeatability

  • 0.1 % of Range

Supply Voltage

  • 18-36 Vdc, 20 W, Max.
  • 80-265 Vac/dc, 15 W, Max.
