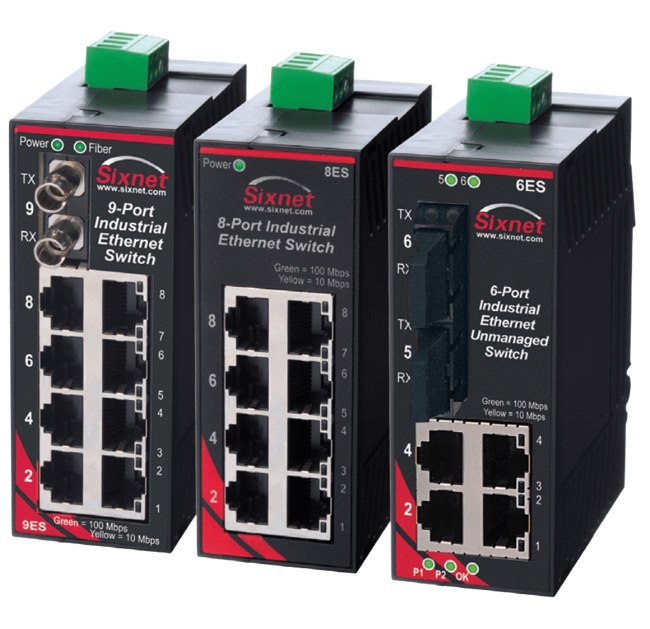

Model SL/SLX Unmanaged Industrial Ethernet Switch
Brand: Red Lion Controls
Red Lion's Sixnet® Series SLX Unmanaged Industrial Ethernet Switches are designed to meet the highest demands of extreme applications. Available with Ethernet and fiber options, the unmanaged SLX switches offer protected circuitry and tough metal DIN-rail mountable enclosures to ensure rugged reliability.
Connectivity
The SLX unmanaged ethernet switches offer up to nine Ethernet ports with a combination of 10/100Base-T(X) and 10/100/1000Base-T(X) port speeds and are available with copper, fiber and SFP port combinations. Power over Ethernet (PoE) capable models are also available.
Performance
SLX ethernet switches provide uncompromising performance in harsh environments. Featuring redundant power input terminals, plug-and-play operation and 1,000,000 hour MTBF, the SLX series provides best-in-class uptime performance.
Environmental
Housed in metal IP40 protected enclosures, Sixnet series SLX unmanaged Ethernet switches have a -40° to 85°C operating temperature range. With UL Class I, Div. 2 listing, CSA and CE certifications, these Ethernet switches are built to last in the most demanding environments.
Features- Slim packaging fits on your DIN-Rail
- High performance and value
- Truly industrial hardened design
- Plug & play saves you time and money
1 - 12 of 22 Part Numbers
ET-PS-024-02
- Product - 2 A, AC to 24 Vdc Power Supply
SL-5ES-1
- Product - SL - Operating Temperature: -40° to 60° C with Lexan Case & IP30
- Model - 5 RJ45 10/100 Ports
SL-5ES-2SC
- Product - SL - Operating Temperature: -40° to 60° C with Lexan Case & IP30
- Model - 4 RJ45-Ports & 1 mm Fiber SC, 4 km
SL-5ES-2ST
- Product - SL - Operating Temperature: -40° to 60° C with Lexan Case & IP30
- Model - 4 RJ45-Ports & 1 mm Fiber ST, 4 km
SL-5ES-3SC
- Product - SL - Operating Temperature: -40° to 60° C with Lexan Case & IP30
- Model - 4 RJ45-Ports & 1 sm Fiber SC, 20 km
SL-5ES-3ST
- Product - SL - Operating Temperature: -40° to 60° C with Lexan Case & IP30
- Model - 4 RJ45-Ports & 1 sm Fiber ST, 20 km
SL-8ES-1
- Product - SL - Operating Temperature: -40° to 60° C with Lexan Case & IP30
- Model - 8 RJ45 10/100 Ports
SL-9ES-2SC
- Product - SL - Operating Temperature: -40° to 60° C with Lexan Case & IP30
- Model - 8 RJ45-Ports & 1 mm Fiber SC, 4 km
SL-9ES-2ST
- Product - SL - Operating Temperature: -40° to 60° C with Lexan Case & IP30
- Model - 8 RJ45-Ports & 1 mm Fiber ST, 4 km
SL-9ES-3SC
- Product - SL - Operating Temperature: -40° to 60° C with Lexan Case & IP30
- Model - 8 RJ45-Ports & 1 sm Fiber SC, 20 km
SL-9ES-3ST
- Product - SL - Operating Temperature: -40° to 60° C with Lexan Case & IP30
- Model - 8 RJ45-Ports & 1 sm Fiber ST, 20 km
SLX-5ES-1
- Product - SLX - Operating Temperature: -40° to 85° C with Aluminum Case & IP40
- Model - 5 RJ45 10/100 Ports
1 - 12 of 22 Part Numbers
Specifications
Brand
Approvals & Certifications
- ABS for Marine & Offshore
- ANSI/ISA 12.12.01, CSA C22.2/213 (Class I, Div. 2), EN 60079-15 (Zone 2, Category 3), CE (ATEX)
- CE
- EMC - FCC Part 15, ICES-003, EN 61000-6, CE
- IEEE 802.3, 802.3 u, 802.3x
- UL 508, 94V0
Approvals & Certifications
- EN 61010-1, 61000-6, 60079-15 (Zone 2, Category 3)
- IEC 60825-1, Class 1, FDA 21 CFR 1040.10 & 1040.11
Bandwidth
- Memory Bandwidth: 3.2 Gbps
Enclosure, Body Material
- Aluminum
- Lexan
Environmental Protection
- IP30
- IP40
Humidity
- 5 to 95 % Relative Humidity, Non-Condensing
Input
- 10-30 Vdc
- 2 to 5 W Typical (All Ports Active at 100 Mbps)
- Spike Protection: 5,000 W (10 x for 10 μS)
- Transient Protection: 15,000 W Peak
Isolation
- Ethernet: 1,500 Vrms 1 Minute
Mounting
- DIN Rail Mounting
- Direct Panel Mounting
Operating Temperature
- -40° to 60° C (-40° to 140° F) - SL Models
- -40° to 85° C (-40° to 185° F) - SLX Models
Shock
- IEC 60068-2-6
Storage Temperature
- -40° to 85° C (-40° to 185° F)
Vibration
- IEC 60068-2-6
Wavelength
- 1,300 Nm Typical
