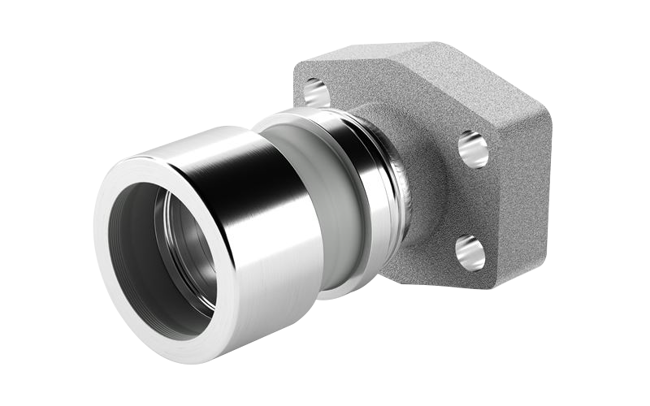

SAE61 Solid Flange - Stainless Steel Pipe
Brand: LokringSAE61 Solid Flange - Stainless Steel Pipe Solutions
Specifications
Brand
Nominal Pipe Size
- 1/2 in
- 3/4 in
- 1 in
- 1 1/4 in
- 1 1/2 in
- 2 in
- 3 in
Fitting Bore I.D. for Pipe/Tube
- 0.86 in 21.8 mm
- 1.07 in 27.2 mm
- 1.33 in 33.8 mm
- 1.69 in 42.9 mm
- 1.92 in 48.8 mm
- 2.42 in 61.5 mm
- 3.54 in 89.9 mm
Fitting Size
- P08
- P12
- P16
- P20
- P24
- P32
- P48
Fitting Type
- Adapter
Fitting Material
- Stainless Steel
Part Length (Uninstalled) L
- 3.41 in 86.6 mm
- 3.74 in 95.0 mm
- 3.99 in 101.3 mm
- 4.51 in 114.6 mm
- 4.92 in 125.0 mm
- 5.47 in 138.9 mm
- 7.11 in 180.6 mm
Part Length (Installed) L
- 2.97 in 75.4 mm
- 3.25 in 82.6 mm
- 3.44 in 87.5 mm
- 3.87 in 98.2 mm
- 4.22 in 107.1 mm
- 4.64 in 117.9 mm
- 5.75 in 145.9 mm
Installation Tool Kit
- IT30/IT45
- IT45/IT60
- IT60
- IT100/IT140
Weight
- 0.20 kg 0.45 lb
- 0.26 kg 0.58 lb
- 0.39 kg 0.87 lb
- 0.58 kg 1.27 lb
- 0.73 kg 1.60 lb
- 1.26 kg 2.78 lb
- 2.80 kg 6.18 lb
Certifications/Approvals
- ABS
- CRN
- CARB
- USCG
