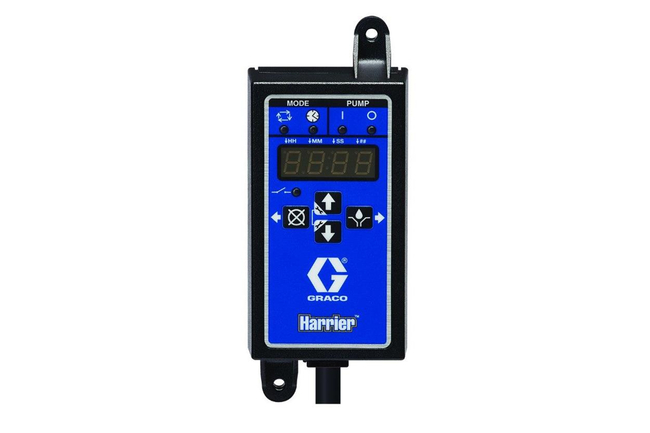

Harrier Controllers
Brand: Graco, IncClosely control and monitor chemical critical operating information for reducing costs and improving processes.
It's easy, efficient and productive – saving you time and money.
Features- Simple user interface for setup and control. Enter your desired injection rate and let Graco do the rest.
- The Harrier+ control includes remote connectivity, allowing you to monitor, control and calibrate your system away from your injection site via cellular or Modbus.
- Easily monitors your system for control, troubleshooting, maintenance needs and alerts.
- Patent pending adaptive flow control technology maintains a consistent injection rate, regardless of system variables, reducing waste and costs.
- Multiple inputs for system controls allow you to only run when it’s necessary. Harrier EZ and Harrier:
- Used for DC pumps.
- Control injection rates via timer or cycle count.
- ETL listed for electrical safety: UL 508 and CSA 22.2 No. 14.
- On/Off time setting intervals from 0-999 seconds.
- Built-in low voltage disconnect functionality.
- Battery voltage display.
- Prime mode for pump priming during setup. Harrier AC :
- Used with AC operated pumps.
- Pump-mount and wall-mount option.
- Control injection rates via timer or cycle count.
- Auxiliary input port.
- ETL listed for electrical safety to UL 508 and CSA 22.2 No. 14.
- NEMA 4X enclosure. Harrier+:
- Used for AC and DC pumps.
- Control injection rates via timer, cycle count or flow control.
- Easy to read display that operates at temperatures as low as -40°F (-40°C).
- CDMA and GSM cellular connectivity.
- ETL listed for electrical safety: UL 508 and CSA 22.2 No. 14.
Specifications
Brand
Auxiliary Input (Optional)
- Normally Open Switch
Cycle / Pressure Control Input (Optional)
- 9 - 26 Vdc, Normally Open or Cycle Switch
Enclosure Material
- Polycarbonate + PET
Input Contact - Power Source DC
- 9 - 26 Vdc
IP Protection Rating
- IP54 for Indoors
Maximum Humidity
- 90 % Relative Humidity, Non-Condensing
Membrane Material
- Polyester
Operating Temperature Range
- -40° to 55° C
Outputs - Maximum Switching Current
- 16 A (DC)
Outputs - Maximum Switching Voltage
- 26 Vdc
Outputs - Minimum Switching Current
- 100 mA (DC)
Outputs - Pump Control
- Pump Control Voltage = Power Source
Outputs - Voltage
- Pump Control Voltage = Power Source
Power Consumption
- 1 Watt
Power Source DC
- 9 - 26 Vdc
Storage Temperature
- -40° to 80° C)
Documentation
Brochure
- 345075EN Chemical Injection Brochure Arabic pdf 1.8 MB
- 345075EN Chemical Injection Brochure Chinese pdf 1.3 MB
- 345075EN Chemical Injection Brochure Deutsch pdf 5.3 MB
- 345075EN Chemical Injection Brochure En pdf 5.4 MB
- 345075EN Chemical Injection Brochure Español pdf 1.7 MB
- 345075EN Chemical Injection Brochure French pdf 1.8 MB
- 345075EN Chemical Injection Brochure Norwegian pdf 992 KB
- 345075EN Chemical Injection Brochure Russian pdf 5.3 MB
Document
Instructions
- 334993B Harrier Chemical Injection Controller Instructions Eng En pdf 2.3 MB
- 3A4047D Harrier AC Chemical Injection Controller Instructions En pdf 3.9 MB
- 3A4130E Harrier Chemical Injection Controller Instructions En En pdf 2.7 MB
- 3A4700D Harrier EZ Chemical Injection Controller Instructions En pdf 1.2 MB
