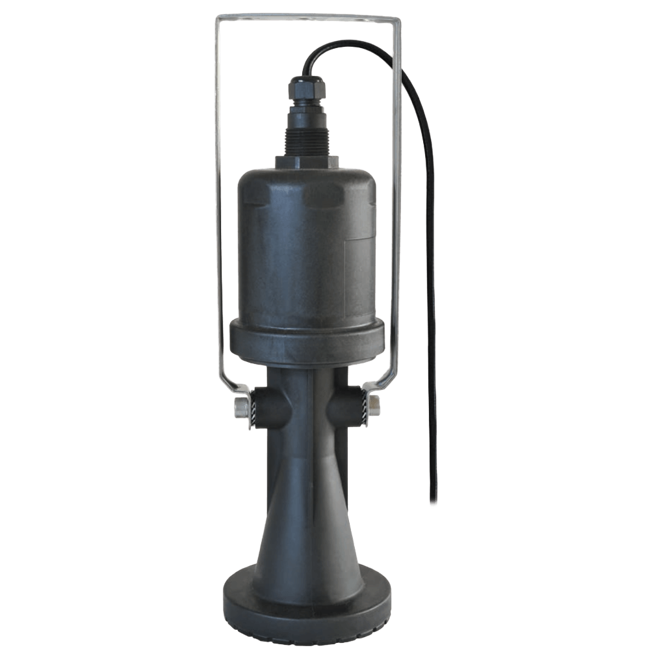

EchoPulse LR30 Pulse Radar Level Transmitter
Brand: Flowline
The general-purpose 26 GHz, pulse radar transmitter provides continuous level measurement up to 98.4 feet (30 meters) with a 4-20 mA signal output, and is configured via its remote push button display module.
The non-contact liquid level sensor is intended for industrial wastewater, municipal storm or sewer lift station, reservoir, river, canal or open channel applications located below or above grade.
Select this sensor for challenging process conditions that may include light surface foam or agitation, small trash or plant material, wind, condensation or vapor.
Each comes with a 32.8 feet (10 meters) cable, mounting bracket and display module. The sensor is designed for bracket mount installation suspended above the liquid level.
Features- Rugged IP68 sensor enclosure with 304 stainless steel mounting bracket
- Simple configuration via remote push button display module
- 26 GHz, pulse radar is unaffected by sump process conditions
- Wall mounted display with windowed enclosure rated IP 67
- 12" (30 cm) dead band enables utilization of the entire sump
- LCD displays level in feet or meters with percent of span bar
- Optional display mode indicates the echo signal return curve
- Auto-temperature compensation for accurate measurement
- Self diagnostics with selectable fail-safe signal outputs
- Recognition, storage and rejection of false echo signal returns
- Beam Angle: 12°
Specifications
Brand
Accuracy
- ± 3 mm
Approvals & Certifications
- CE
- cTÜVus
- FCC
- RoHS
Cable Length
- 32.81 ft (10 metres)
Cable Material
- PVC - Cable Jacket Material
Cable Type
- 6-Conductor, Shielded
Conduit Connection
- 1/2" NPT Connector
Configuration
- Push Button
Consumption
- Maximum
Deadband
- 12" (304.8 mm)
Display
- Dot Matrix LCD
Enclosure, Body Material
- Nylon - Sensor Enclosure
- Polycarbonate - Display Enclosure
Environmental Protection
- IP67
- IP68
Frequency
- 26 GHz
Materials of Construction
- Bracket: 304 Stainless Steel
Media
- Liquids
Mounting
- Wall Mounted - Display
NPT Connection
- 1" NPT Male
Output
- 4-20 mA, 2-Wire
Process Temperature
- -40° to 100° C (-40° to 212° F)
Range
- 1 to 98.4 ft (0.30 to 30 metres)
Storage Temperature
- -40° to 80° C (-40° to 176° F)
Supply Voltage
- 16-26 Vdc
- Industrial Wastewater, Municipal Storm
- Sewer Lift Stations, Reservoir, River, Canal or Open Channel Applications
