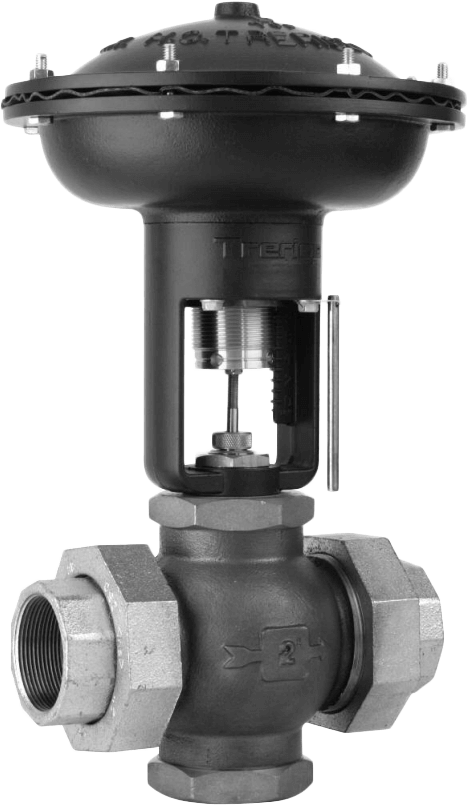

910 Series Compact Control Valve

Brand: Trerice Gauges & Valves
Add Product to My Catalog

The Trerice 910 Series Pneumatic Control Valve offers high quality at an economical price, incorporating many features found only on more expensive units.

Models are available to provide the proper flow response required by the application.

The 910A, 910B & 910C are used for On/Off control applications, providing a quick-opening flow response when used with single or double seated valves.

The 910TB is used for proportional or PID control applications, providing a throttling flow response when used with double seated or 3-way valves.

The 910EPA & 910EPC is used for proportional or PID control applications, providing an equal percentage flow response when used with single seated valves.

For optimal performance, the service conditions (medium, flow, temperature, inlet and outlet pressures) of the application must be considered when selecting a valve.

Please refer to the Valve Selection Section of this catalog. Consult the Valve Selection tables for the capabilities of a particular valve/actuator assembly.

Improper application may cause failure of the valve, resulting in possible personal injury or property damage.
Features
  • Diaphragm Actuated
  • 7", 9" & 12" Actuator Sizes
  • Heavy Duty Die Cast Housing
  • ½" - 4" Valve Sizes

View_Details

Specifications

Brand

Models

  • 910A, 910B, 910C, 910TB, 910EPA & 910EPC

Diaphragm Size

  • 7" - 12"

Control Action

  • ON/OFF
  • Throttling
  • Equal Percentage

Input Signal

  • 0/15 psi
  • 3-15 psi

Housing

  • Die Cast Aluminum, Epoxy Powder Coated Blue Finish

Setting Scale

  • Integral to Housing

Adjustment Screw

  • Brass

Adjustment Screw Bushing

  • Lubricant Impregnated Sintered Bronze

Range Adjustment Spring

  • Cadmium-Plated

Pressure Plate

  • Aluminum

Diaphragm

  • Nylon Reinforced EDPM

Air Pressure to Diaphragm

  • 30 psig Max.

Air Pressure Connection

  • 1/8" NPT Female

Operating Temperature

  • Ambient: -40° F (-40° C) to 180° F (82° C)
  • Process Flow: -40° F (-40° C) to 410° F (210° C)

Approximate Shipping Weight

  • 6.6 - 13.1 lb (2.97 - 5.90 kg)
