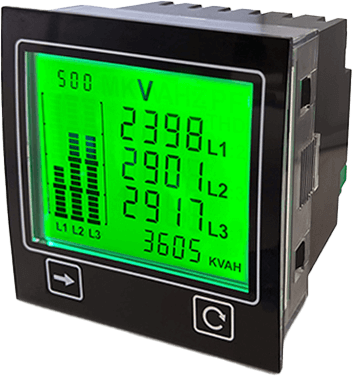

Power Meter
Brand: TrumeterThis panel-mounted power meter is designed for use on mains circuits, potential transformers and current transformers.
As a 3 phase power meter, its multi-measurement capability of active and reactive power makes it ideal for a wide range of power monitoring applications and the most flexible panel power meter for electrical monitoring.
Like the rest of our power meters, this panel power meter is customizable to your needs.
Features- Works with potential and current transformers
- Modbus RTU
- 10 alarm set points
Specifications
Brand
Input
- 100 - 277 Vac
Networks
- IP2W, IP3W, 3P3W, 3P4W
Temperature
- Operating: -10 - 50° C, Storage: -40 - 70° C
Power Supply
- Input: 100 - 277 Vac, Supply Frequency: 50/60 Hz, Max. Power: 2W
Outputs
- Maximum Sink Current: 15 mA, Maximum Voltage: 24 Vdc, Output 1: Digital (opto-Isolated), Output 2: Digital (opto-Isolated), Output 3: Analog (4-20 mA)
Communication
- Includes Modbus RTU
Dimensions
- Overall: 72 mm x 72 mm x 74 mm, Screen: 57 mm x 44.7 mm
Backlight Colors
- Green, Red, White
Accuracy
- 1.0%
Certifications
- CE, cUL, IP65, NEMA 4 & 12, ROHS, UL
