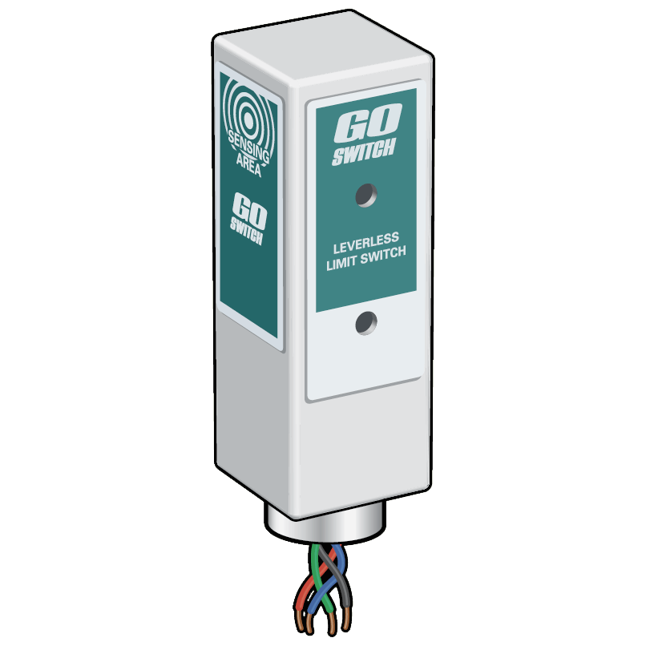

Model 11/21 Long & Side Sensing Proximity
Brand: TopWorxGO Switch Model 11 and 21 is the ideal replacements for traditional mechanical limit switches.
Sealed contacts, rugged housings, non-contact detection of ferrous metal & magnetic targets, and snap action response make these switches the ultimate problem solvers for troublesome mechanical limit switch applications.
Some features common to the Model 11 and 21 include a standard operating temperature range of -58°F to 221°F (-50°C to 105°C) and gold-plated SPDT dry contacts.
Features- Single Pole Double Throw (SPDT) 5 A / 240 Vac, 10 A / 120 Vac, 3 A / 24 Vdc
- AC/DC, NO/NC Wiring Flexibility
- -50°C to 105°C (-58°F to 221°F)
- 3/8" (10 mm) sensing distance (ferrous metal)
- Dry contact
- Intrinsically safe
- End sensing
- Gold plated contacts
Specifications
Brand
Approvals & Certifications
- CSA
- FM
- UL
Enclosure, Body Material
- 304 Stainless Steel
- Brass
