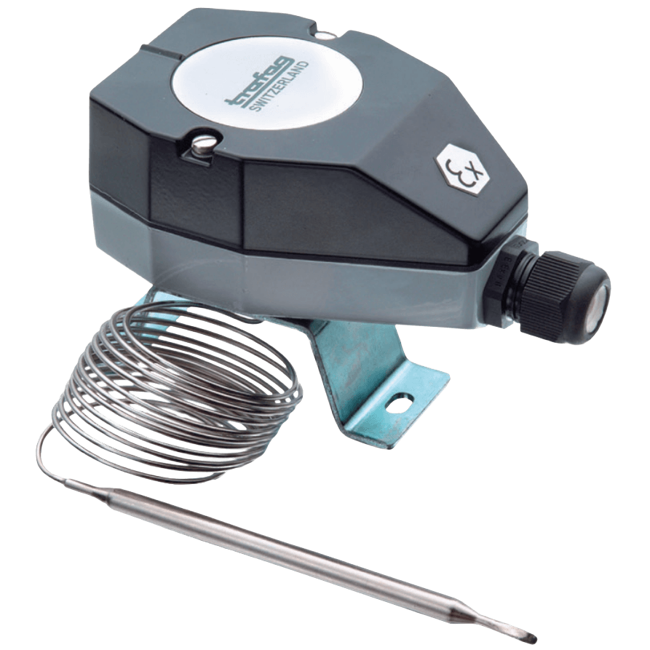

EXS 404/414 Ex Industat
Brand: Trafag Sensors & ControlsSwiss based trafag is a leading international supplier of high quality sensors and monitoring instruments for the measurement of pressure and temperature.
Features- Compact design
- Rugged housing
- Any mounting position possible
- Ex db eb IIC T6 Gb
- Ex tb IIIC T80° C Db
Specifications
Accuracy
- ± 2 % of Full Scale - Typical
Ambient Temperature Range
- -30° to 60° C (-22° to 140° F)
Applications
- Ex Industrial Thermostat with Remote Sensor
Approvals & Certifications
- IECEx SEV 17.0010X
- SEV 15-ATEX-0156 X
Capillary Length
- Capillary Length Tube: 0 to 5,000 mm
Electrical Connectors
- M20 x 1.5 / SW24
- Terminal Screw: 3 x 1 to 2.5 mm²
Electrical Rating
- 0.25 (0.03) A at 250 Vdc
- 0.5 (0.06) A at 125 Vdc
- 0.75 (0.25) A at 75 Vdc
- 1 (1) A at 50 Vdc
- 5 (3) A at 15 Vdc
- 5 (3) A at 30 Vdc
- 5 (5) A at 125 Vac
- 5 (5) A at 250 Vac
Enclosure, Body Material
- Aluminum (ALSI9Cu3) Coated
Environmental Protection
- IP65
Fill Material
- Liquid
Gland Material
- Screwed Cable Gland: Polyamide (PA)
Humidity
- Maximum
Insulation Resistance
- > 2 MΩ
Measuring Range
- -30° to 350° C (-22° to 662° F)
Mounting Position
- Any Orientation
Repeatability
- ± 0.5 % of Full Scale
Sensor, Probe Material
- Sensor: Copper
- Sensor: Copper Nickel-Plated
- Sensor: Stainless Steel
Set Point - Decreasing
- -30° to 115° C (-22° to 239° F)
Set Point - Increasing
- -30° to 115° C (-22° to 239° F)
Shock
- 50 G, 11 ms
Storage Temperature
- -30° to 60° C (-22° to 140° F)
Vibration
- ± 1.6 mm (5 to 25 Hz)
- 4 G (25 to 100 Hz)
Voltage
- Dielectric Strength: 1.5 kV
