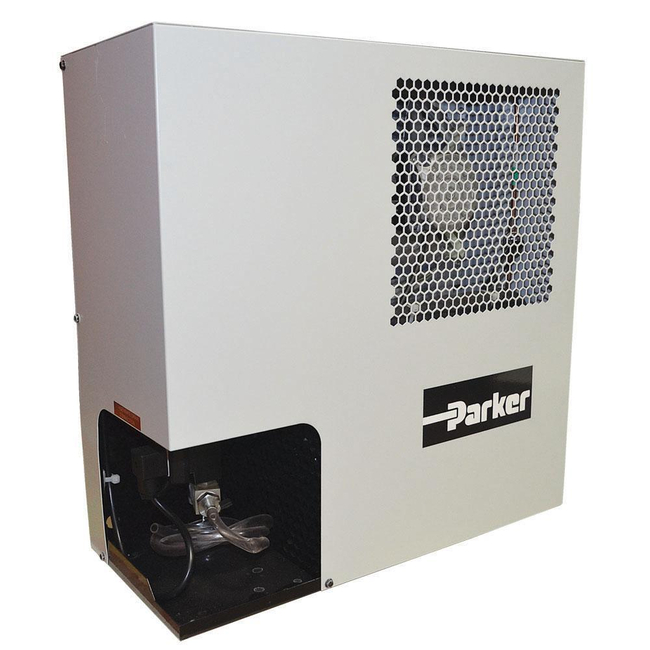

PRD Series Non-Cycling Refrigerated Air Dryers

Obsolete: PRD Series Non-Cycling Refrigerated Air Dryers

Brand: Parker Hannifin
Add Product to My Catalog

The importance of compressed air as a provider of energy for modern industrial processes is widely known.

What is often overlooked is the need to provide quality treatment for this air.

In fact, the air entering the system contains moisture which, when cooled, will turn into water, causing extensive damage not only to the compressed air network, but also to the finished product.

These costly contamination problems can be avoided by installing a PRD Series non-cycling refrigerated dryer (ranging from 10 - 175 scfm) package complete with Parker high efficiency filtration.

Parker’s revolutionary 3-in-1 heat exchanger (PRD10 - PRD175) features a 3-in-1 aluminium design with integral air connections.

All models include an air-to-air freecooler, while the unique “slowflow” demister ensures perfect dewpoints whatever the operating conditions.

Compressed air purification equipment must deliver uncompromising performance and reliability while providing the right balance of air quality with the lowest cost of operation.
Features
  • “Plug and Play” design for easy installation
  • Robust timed solenoid drain equals improved reliability (PRD15 - PRD175)
  • Unique 3-in-1 heat exchanger
  • Oversized demister separator resulting in excellent liquid removal overall operating conditions
  • Oversized condenser to operate in ambients to 122°F (50°C)
  • Fan cycling ensures stable operation
  • All models incorporate a dewpoint indicator
  • Extremely compact footprint
  • Low pressure differential across dryer (1.45 psi average)
  • CETLU listed complete unit
  • CRN registered all provinces
  • Dryers manufactured in facility certified to ISO9001 and ISO14001

Specifications

Brand

Applications

  • Compressed Air

Approvals & Certifications

  • cETLus

Dew Point (°C)

  • =10

Dew Point (°F)

  • 50

Drain

  • Float Drain, Timed Drain

Maximum Ambient Temperature (°C)

  • 50° C

Maximum Ambient Temperature (°F)

  • 122° F

Maximum Operating Pressure (bar)

  • 16

Maximum Operating Pressure (psi)

  • 232

Maximum Operating Temperature (°C)

  • 65° C

Maximum Operating Temperature (°F)

  • 149° F

Minimum Ambient Temperature (°C)

  • 5° C

Minimum Ambient Temperature (°F)

  • 41° F

Minimum Operating Pressure (bar)

  • 3.5

Minimum Operating Pressure (psi)

  • 50

Minimum Operating Temperature (°C)

  • 5° C

Minimum Operating Temperature (°F)

  • 41° F

Rated Inlet Pressure (bar)

  • 7

Rated Inlet Pressure (psi)

  • 100100

Replacement After-Filter Element

  • Replacement after Filter Element Dependent on Model Chosen

Replacement Prefilter Element

  • Replacement Prefilter Element Dependent on Model Chosen
