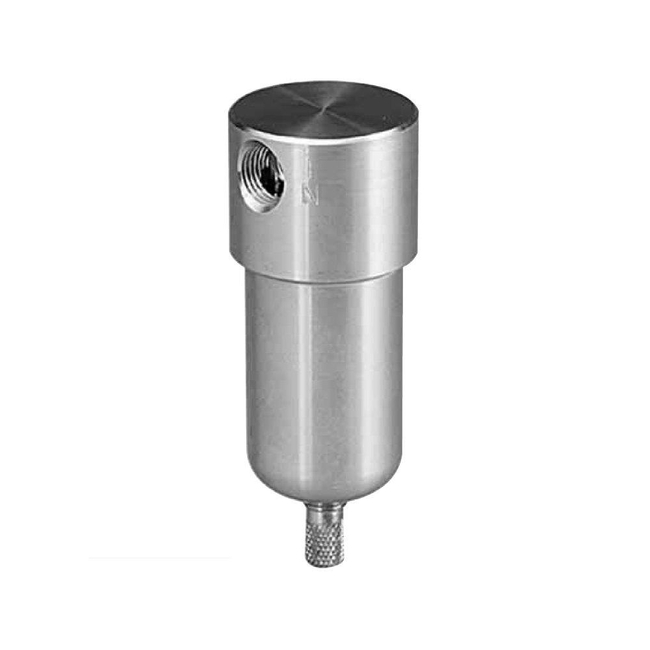

Stainless Steel Particulate Filter - PF504 (Miniature) - Pneumatic Division Europe

Stainless Steel Particulate Filter - PF504 (Miniature) - Pneumatic Division Europe

Brand: Parker Hannifin
Add Product to My Catalog

PF504 is a 40 mm S/Steel (316) particulate filter, 1/4" ported BSPP/NPT, 5µ & 20µ element, metal bowl without sight gauge and manual/auto drain. Max P1 pressure 20.7 bar (manual drain). Temp from -18°C to 82°C.

Parker's PF504 is a stainless steel miniature filter that delivers high moisture removal in a compact package.

The PF504 is used for the removal of solid particle contaminants down to 5 & 20 micron and the separation of bulk liquids.

This type of filter is generally used in industrial applications where harmful dirt particles must be removed from the compressed air system.

For specific flow and space restricted applications, this product can provide a solution that does not sacrifice performance. The PF504 meets NACE specifications MR-01 / ISO 15156.
Features
  • Stainless steel construction handles most corrosive environments
  • Fluorocarbon seals standard
  • Meets NACE specifications MR-01-75/ISO 15156
  • 1/8" female threaded drain
  • High Flow: ¼" - 23 SCFM

1 - 1 of 1 Part Numbers
PF504G02DHSS
PF504G02DHSS
Stainless Steel Particulate Filter - PF504 (Miniature) - Pneumatic Division Europe
1 - 1 of 1 Part Numbers

Specifications

Brand

Approvals & Certifications

  • N/A

Body Material

  • Stainless Steel

Bowl Material

  • Stainless Steel

Drain Option

  • Manual Drain

Element

  • 20 micron

Flow Rate (dm3/sec)

  • 10.85

Flow Rate (scfm)

  • 23

Inlet Pressure Range (bar)

  • 20.7

Inlet Pressure Range (psig)

  • 300

Operating Temperature (°C)

  • -18° to 82° C

Operating Temperature (°F)

  • 0° to 180° F

Port Size

  • 1/4”

Port Type

  • BSPP

Product Type

  • Stainless Steel Miniature

Seal Material

  • Fluorocarbon

Weight (kg)

  • 0.27 kg

Weight (Lbs)

  • 0.6 lbs

  • Food, Beverage, Process Engineering
  • Shipping and Yachting
  • Chemical Environments and Processing
  • Oil and Gas Applications
  • Pharmaceutical and Human Medicine Application
  • Pulp and Paper Applications
  • Markets:
    • Medical Applications
    • Life Sciences
    • Onshore
    • Offshore
    • Maritime Sector
    • Aggressive Environment
    • Food & Beverage
