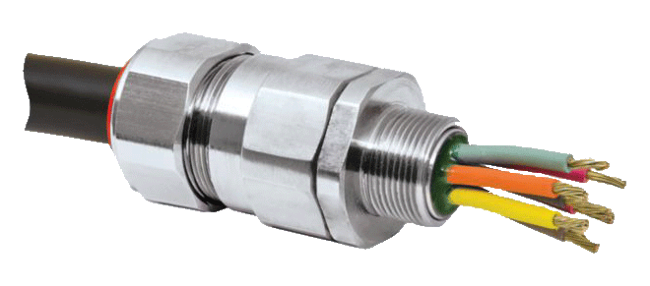

Cable Glands Ex e & Ex d & Ex nR & Ex ta Series PX2K REX

Cable Glands Ex e & Ex d & Ex nR & Ex ta Series PX2K REX

Brand: R. STAHL AG
Add Product to My Catalog

PX2K REX series metal Ex d and Ex e barrier cable entries are suitable for cables with SWA, braid- and tape-type steel and aluminium armoring. They are sealed by means of a liquid compound barrier (RapidEx), which reduces the amount of time, the costs and the risks involved in installation and affords increased reliability.

They feature a multi-functional holder for the armoring and various seals. They are also EMC-tested.
Features
  • Greater reliability: Flood seal with integral protection, controlled outer load retention seal and over-rotation protection
  • RapidEx compound barrier for easy installation and greater reliability
  • Worldwide certification in accordance with IECEx, ATEX and cCSAus, EMC-tested

1 - 12 of 20 Part Numbers
246648
246648
R. STAHL Cable Gland with RapidEx Compound
Greater reliability: Flood seal with integral protection, controlled outer load retention seal and over-rotation protection

RapidExcompound barrier for easy installation and greater reliability

Worldwide certification in accordance with IECEx, ATEX and cCSAus, EMC-tested

Ambient Conditions

  • Ambient temperature - -60 °C ... +85 °C
  • Ambient temperature max. - +85 °C
  • Ambient temperature min. - -60 °C

Electrical Data

  • Ex version - Ex e & Ex d & Ex nR & Ex ta

Explosion Protection

  • Ambient temperature °C - -60 - 85 °C
  • Application range (zones) - 1, 2, 20, 21, 22
  • ATEX dust certificate - SIRA 13 ATEX 1072 X
  • ATEX firedamp certificate - SIRA 13 ATEX 1072 X
  • ATEX gas certificate - SIRA 13 ATEX 1072 X
  • ATEX restricted breathing certificate - SIRA 13 ATEX 4078 X
  • Certificate EAC - TS RU S-GB.AA87.B.00487
  • Dust explosion protection ATEX - II 1 D Ex ta IIIC Da
  • Dust explosion protection EAC - Ex ta IIIC Da X
  • Dust explosion protection IECEx - Ex ta IIIC Da
  • Firedamp protection ATEX - I M2 Ex d I Mb
  • Firedamp protection ATEX 2 - I M2 Ex e I Mb
  • Firedamp protection IECEx - Ex d I Mb
  • Firedamp protection IECEx 2 - Ex e I Mb
  • Gas explosion protection ATEX - II 2 G Ex d IIC Gb
  • Gas explosion protection ATEX 2 - II 2 G Ex e Gb
  • Gas explosion protection EAC - 1 Ex d e IIC Gb X 2 Ex nR IIC Gc X
  • Gas explosion protection IECEx - Ex d IIC Gb
  • Gas explosion protection IECEx 2 - Ex e Gb
  • IECEX dust certificate - IECEx SIR 13.0027 X
  • IECEx firedamp certificate - IECEx SIM 14.0008 X
  • IECEX gas certificate - IECEx SIR 13.0027 X
  • IECEx restricted breathing certificate - IECEx SIR 13.0027 X
  • Note - The product certification and certificates can be downloaded from the manufacturer’s homepage (www.cmp-products.com)
  • Restricted breathing ATEX - II 3 G Ex nR IIC Gc
  • Restricted breathing IECEx - Ex nR IIC Gc

General

  • Functional Description - PX2K REX series metal Ex d and Ex e barrier cable entries are suitable for cables with SWA, braid- and tape-type steel and aluminium armouring. They are sealed by means of a liquid compound barrier ( RapidEx ), which reduces the amount of time, the costs and the risks involved in installation and affords increased reliability. They feature a multi-functional holder for the armouring and various seals. They are also EMC-tested.
  • Highlights - Greater reliability: Flood seal with integral protection, controlled outer load retention seal and over-rotation protection RapidEx compound barrier for easy installation and greater reliability Worldwide certification in accordance with IECEx, ATEX and cCSAus, EMC-tested
  • Product Description - Cable gland With RapidEx compound
  • Product Type - CMP-20S16-PX2KREX
  • Title Product Variant Technical Data - CMP-20s/16PX2K-REX gland NB M20
  • WebCode - PX2KB

Mechanical Data

  • Armouring type - All armouring
  • Armouring type 2 - without lead sheath
  • Armouring type 3 - with barrier seal
  • Clamping range - 6.10 - 13.10 mm
  • Clamping range max. - 13.10 mm
  • Clamping range min. - 6.10 mm
  • Construction type - BS 6121, IEC/EN 62444
  • Degree of protection (IP) - IP66
  • Degree of protection note - IP67 and IP68 mounting in accordance with the specifications of the manufacturer, CMP
  • Gland size - 20s/16
  • Grooved cone - 0.30 … 1.00 mm
  • Inner conduit diameter max. - 11.70 mm
  • Inner sheath - 11.70 mm
  • Lot size - 1
  • Material - Nickel-plated brass
  • Material sealing ring - Viton
  • Max. number of cores - 11
  • Outer sheath - 6.10 … 13.10 mm
  • Protrusion length - 62.00 mm
  • PVC-shroud - PVC06
  • Sealing material - SOLO LSF
  • Silicone-free - No
  • Stepped cone - 0.80 … 1.25 mm
  • Thread length - 15.000 mm
  • Thread pitch - 1,5
  • Thread size - M20
  • Thread standard - metric
  • Weight - 0.240 kg
  • Width across corners - 33.60 mm
  • Width across flats - 30.50 mm
246649
246649
R. STAHL Cable Gland with RapidEx Compound
Greater reliability: Flood seal with integral protection, controlled outer load retention seal and over-rotation protection

RapidExcompound barrier for easy installation and greater reliability

Worldwide certification in accordance with IECEx, ATEX and cCSAus, EMC-tested

Ambient Conditions

  • Ambient temperature - -60 °C ... +85 °C
  • Ambient temperature max. - +85 °C
  • Ambient temperature min. - -60 °C

Electrical Data

  • Ex version - Ex e & Ex d & Ex nR & Ex ta

Explosion Protection

  • Ambient temperature °C - -60 - 85 °C
  • Application range (zones) - 1, 2, 20, 21, 22
  • ATEX dust certificate - SIRA 13 ATEX 1072 X
  • ATEX firedamp certificate - SIRA 13 ATEX 1072 X
  • ATEX gas certificate - SIRA 13 ATEX 1072 X
  • ATEX restricted breathing certificate - SIRA 13 ATEX 4078 X
  • Certificate EAC - TS RU S-GB.AA87.B.00487
  • Dust explosion protection ATEX - II 1 D Ex ta IIIC Da
  • Dust explosion protection EAC - Ex ta IIIC Da X
  • Dust explosion protection IECEx - Ex ta IIIC Da
  • Firedamp protection ATEX - I M2 Ex d I Mb
  • Firedamp protection ATEX 2 - I M2 Ex e I Mb
  • Firedamp protection IECEx - Ex d I Mb
  • Firedamp protection IECEx 2 - Ex e I Mb
  • Gas explosion protection ATEX - II 2 G Ex d IIC Gb
  • Gas explosion protection ATEX 2 - II 2 G Ex e Gb
  • Gas explosion protection EAC - 1 Ex d e IIC Gb X 2 Ex nR IIC Gc X
  • Gas explosion protection IECEx - Ex d IIC Gb
  • Gas explosion protection IECEx 2 - Ex e Gb
  • IECEX dust certificate - IECEx SIR 13.0027 X
  • IECEx firedamp certificate - IECEx SIM 14.0008 X
  • IECEX gas certificate - IECEx SIR 13.0027 X
  • IECEx restricted breathing certificate - IECEx SIR 13.0027 X
  • Note - The product certification and certificates can be downloaded from the manufacturer’s homepage (www.cmp-products.com)
  • Restricted breathing ATEX - II 3 G Ex nR IIC Gc
  • Restricted breathing IECEx - Ex nR IIC Gc

General

  • Description - RapidEx liquid pour sealing system Cable entry with compound CMP-20PX2K-REX KLE MsNi M20 for reinforced conductors
  • Functional Description - PX2K REX series metal Ex d and Ex e barrier cable entries are suitable for cables with SWA, braid- and tape-type steel and aluminium armouring. They are sealed by means of a liquid compound barrier ( RapidEx ), which reduces the amount of time, the costs and the risks involved in installation and affords increased reliability. They feature a multi-functional holder for the armouring and various seals. They are also EMC-tested.
  • Highlights - Greater reliability: Flood seal with integral protection, controlled outer load retention seal and over-rotation protection RapidEx compound barrier for easy installation and greater reliability Worldwide certification in accordance with IECEx, ATEX and cCSAus, EMC-tested
  • Product Description - Cable gland With RapidEx compound
  • Product Type - CMP-20-PX2KREX
  • Product Variant - Cable glands made of metal
  • Title Product Variant Technical Data - CMP-20PX2K-REX gland NB M20
  • WebCode - PX2KB

Mechanical Data

  • Armouring type - All armouring
  • Armouring type 2 - without lead sheath
  • Armouring type 3 - with barrier seal
  • Clamping range - 12.50 - 20.90 mm
  • Clamping range max. - 20.90 mm
  • Clamping range min. - 12.50 mm
  • Construction type - BS 6121, IEC/EN 62444
  • Degree of protection (IP) - IP66
  • Degree of protection note - IP67 and IP68 mounting in accordance with the specifications of the manufacturer, CMP
  • Gland size - 20
  • Grooved cone - 0.40 … 1.00 mm
  • Inner conduit diameter max. - 12.90 mm
  • Inner sheath - 12.60 mm
  • Lot size - 1
  • Material - Nickel-plated brass
  • Material sealing ring - Viton
  • Max. number of cores - 11
  • Outer sheath - 12.50 … 20.90 mm
  • Protrusion length - 63.00 mm
  • PVC-shroud - PVC06
  • Sealing material - SOLO LSF
  • Silicone-free - No
  • Stepped cone - 0.80 … 1.25 mm
  • Thread length - 15.000 mm
  • Thread pitch - 1,5
  • Thread size - M20
  • Thread standard - metric
  • Weight - 0.240 kg
  • Width across corners - 33.60 mm
  • Width across flats - 30.50 mm
246650
246650
R. STAHL Cable Gland with RapidEx Compound
Greater reliability: Flood seal with integral protection, controlled outer load retention seal and over-rotation protection

RapidExcompound barrier for easy installation and greater reliability

Worldwide certification in accordance with IECEx, ATEX and cCSAus, EMC-tested

Ambient Conditions

  • Ambient temperature - -60 °C ... +85 °C
  • Ambient temperature max. - +85 °C
  • Ambient temperature min. - -60 °C

Electrical Data

  • Ex version - Ex e & Ex d & Ex nR & Ex ta

Explosion Protection

  • Ambient temperature °C - -60 - 85 °C
  • Application range (zones) - 1, 2, 20, 21, 22
  • ATEX dust certificate - SIRA 13 ATEX 1072 X
  • ATEX firedamp certificate - SIRA 13 ATEX 1072 X
  • ATEX gas certificate - SIRA 13 ATEX 1072 X
  • ATEX restricted breathing certificate - SIRA 13 ATEX 4078 X
  • Certificate EAC - TS RU S-GB.AA87.B.00487
  • Dust explosion protection ATEX - II 1 D Ex ta IIIC Da
  • Dust explosion protection EAC - Ex ta IIIC Da X
  • Dust explosion protection IECEx - Ex ta IIIC Da
  • Firedamp protection ATEX - I M2 Ex d I Mb
  • Firedamp protection ATEX 2 - I M2 Ex e I Mb
  • Firedamp protection IECEx - Ex d I Mb
  • Firedamp protection IECEx 2 - Ex e I Mb
  • Gas explosion protection ATEX - II 2 G Ex d IIC Gb
  • Gas explosion protection ATEX 2 - II 2 G Ex e Gb
  • Gas explosion protection EAC - 1 Ex d e IIC Gb X 2 Ex nR IIC Gc X
  • Gas explosion protection IECEx - Ex d IIC Gb
  • Gas explosion protection IECEx 2 - Ex e Gb
  • IECEX dust certificate - IECEx SIR 13.0027 X
  • IECEx firedamp certificate - IECEx SIM 14.0008 X
  • IECEX gas certificate - IECEx SIR 13.0027 X
  • IECEx restricted breathing certificate - IECEx SIR 13.0027 X
  • Note - The product certification and certificates can be downloaded from the manufacturer’s homepage (www.cmp-products.com)
  • Restricted breathing ATEX - II 3 G Ex nR IIC Gc
  • Restricted breathing IECEx - Ex nR IIC Gc

General

  • Functional Description - PX2K REX series metal Ex d and Ex e barrier cable entries are suitable for cables with SWA, braid- and tape-type steel and aluminium armouring. They are sealed by means of a liquid compound barrier ( RapidEx ), which reduces the amount of time, the costs and the risks involved in installation and affords increased reliability. They feature a multi-functional holder for the armouring and various seals. They are also EMC-tested.
  • Highlights - Greater reliability: Flood seal with integral protection, controlled outer load retention seal and over-rotation protection RapidEx compound barrier for easy installation and greater reliability Worldwide certification in accordance with IECEx, ATEX and cCSAus, EMC-tested
  • Product Description - Cable gland With RapidEx compound
  • Product Type - CMP-25-PX2KREX
  • Title Product Variant Technical Data - CMP-25PX2K-REX gland NB M25
  • WebCode - PX2KB

Mechanical Data

  • Armouring type - All armouring
  • Armouring type 2 - without lead sheath
  • Armouring type 3 - with barrier seal
  • Clamping range - 18.20 - 26.20 mm
  • Clamping range max. - 26.20 mm
  • Clamping range min. - 18.20 mm
  • Construction type - BS 6121, IEC/EN 62444
  • Degree of protection (IP) - IP66
  • Degree of protection note - IP67 and IP68 mounting in accordance with the specifications of the manufacturer, CMP
  • Gland size - 25
  • Grooved cone - 0.40 … 1.20 mm
  • Inner conduit diameter max. - 17.90 mm
  • Inner sheath - 17.50 mm
  • Lot size - 1
  • Material - Nickel-plated brass
  • Material sealing ring - Viton
  • Max. number of cores - 21
  • Outer sheath - 18.20 … 26.20 mm
  • Protrusion length - 69.50 mm
  • PVC-shroud - PVC09
  • Sealing material - SOLO LSF
  • Silicone-free - No
  • Stepped cone - 1.25 … 1.60 mm
  • Thread length - 15.000 mm
  • Thread pitch - 1,5
  • Thread size - M25
  • Thread standard - metric
  • Weight - 0.370 kg
  • Width across corners - 41.30 mm
  • Width across flats - 37.50 mm
246652
246652
R. STAHL Cable Gland with RapidEx Compound
Greater reliability: Flood seal with integral protection, controlled outer load retention seal and over-rotation protection

RapidExcompound barrier for easy installation and greater reliability

Worldwide certification in accordance with IECEx, ATEX and cCSAus, EMC-tested

Ambient Conditions

  • Ambient temperature - -60 °C ... +85 °C
  • Ambient temperature max. - +85 °C
  • Ambient temperature min. - -60 °C

Electrical Data

  • Ex version - Ex e & Ex d & Ex nR & Ex ta

Explosion Protection

  • Ambient temperature °C - -60 - 85 °C
  • Application range (zones) - 1, 2, 20, 21, 22
  • ATEX dust certificate - SIRA 13 ATEX 1072 X
  • ATEX firedamp certificate - SIRA 13 ATEX 1072 X
  • ATEX gas certificate - SIRA 13 ATEX 1072 X
  • ATEX restricted breathing certificate - SIRA 13 ATEX 4078 X
  • Certificate EAC - TS RU S-GB.AA87.B.00487
  • Dust explosion protection ATEX - II 1 D Ex ta IIIC Da
  • Dust explosion protection EAC - Ex ta IIIC Da X
  • Dust explosion protection IECEx - Ex ta IIIC Da
  • Firedamp protection ATEX - I M2 Ex d I Mb
  • Firedamp protection ATEX 2 - I M2 Ex e I Mb
  • Firedamp protection IECEx - Ex d I Mb
  • Firedamp protection IECEx 2 - Ex e I Mb
  • Gas explosion protection ATEX - II 2 G Ex d IIC Gb
  • Gas explosion protection ATEX 2 - II 2 G Ex e Gb
  • Gas explosion protection EAC - 1 Ex d e IIC Gb X 2 Ex nR IIC Gc X
  • Gas explosion protection IECEx - Ex d IIC Gb
  • Gas explosion protection IECEx 2 - Ex e Gb
  • IECEX dust certificate - IECEx SIR 13.0027 X
  • IECEx firedamp certificate - IECEx SIM 14.0008 X
  • IECEX gas certificate - IECEx SIR 13.0027 X
  • IECEx restricted breathing certificate - IECEx SIR 13.0027 X
  • Note - The product certification and certificates can be downloaded from the manufacturer’s homepage (www.cmp-products.com)
  • Restricted breathing ATEX - II 3 G Ex nR IIC Gc
  • Restricted breathing IECEx - Ex nR IIC Gc

General

  • Functional Description - PX2K REX series metal Ex d and Ex e barrier cable entries are suitable for cables with SWA, braid- and tape-type steel and aluminium armouring. They are sealed by means of a liquid compound barrier ( RapidEx ), which reduces the amount of time, the costs and the risks involved in installation and affords increased reliability. They feature a multi-functional holder for the armouring and various seals. They are also EMC-tested.
  • Highlights - Greater reliability: Flood seal with integral protection, controlled outer load retention seal and over-rotation protection RapidEx compound barrier for easy installation and greater reliability Worldwide certification in accordance with IECEx, ATEX and cCSAus, EMC-tested
  • Product Description - Cable gland With RapidEx compound
  • Product Type - CMP-40-PX2KREX
  • Title Product Variant Technical Data - CMP-40PX2K-REX gland NB M40
  • WebCode - PX2KB

Mechanical Data

  • Armouring type - All armouring
  • Armouring type 2 - without lead sheath
  • Armouring type 3 - with barrier seal
  • Clamping range - 27.90 - 40.40 mm
  • Clamping range max. - 40.40 mm
  • Clamping range min. - 27.90 mm
  • Construction type - BS 6121, IEC/EN 62444
  • Degree of protection (IP) - IP66
  • Degree of protection note - IP67 and IP68 mounting in accordance with the specifications of the manufacturer, CMP
  • Gland size - 40
  • Grooved cone - 0.40 … 1.60 mm
  • Inner conduit diameter max. - 30.30 mm
  • Inner sheath - 30.00 mm
  • Lot size - 1
  • Material - Nickel-plated brass
  • Material sealing ring - Viton
  • Max. number of cores - 59
  • Outer sheath - 27.90 … 40.40 mm
  • Protrusion length - 75.00 mm
  • PVC-shroud - PVC15
  • Sealing material - SOLO LSF
  • Silicone-free - No
  • Stepped cone - 1.60 … 2.00 mm
  • Thread length - 15.000 mm
  • Thread pitch - 1,5
  • Thread size - M40
  • Thread standard - metric
  • Weight - 0.800 kg
  • Width across corners - 60.50 mm
  • Width across flats - 55.00 mm
246653
246653
R. STAHL Cable Gland with RapidEx Compound
Greater reliability: Flood seal with integral protection, controlled outer load retention seal and over-rotation protection

RapidExcompound barrier for easy installation and greater reliability

Worldwide certification in accordance with IECEx, ATEX and cCSAus, EMC-tested

Ambient Conditions

  • Ambient temperature - -60 °C ... +85 °C
  • Ambient temperature max. - +85 °C
  • Ambient temperature min. - -60 °C

Electrical Data

  • Ex version - Ex e & Ex d & Ex nR & Ex ta

Explosion Protection

  • Ambient temperature °C - -60 - 85 °C
  • Application range (zones) - 1, 2, 20, 21, 22
  • ATEX dust certificate - SIRA 13 ATEX 1072 X
  • ATEX firedamp certificate - SIRA 13 ATEX 1072 X
  • ATEX gas certificate - SIRA 13 ATEX 1072 X
  • ATEX restricted breathing certificate - SIRA 13 ATEX 4078 X
  • Certificate EAC - TS RU S-GB.AA87.B.00487
  • Dust explosion protection ATEX - II 1 D Ex ta IIIC Da
  • Dust explosion protection EAC - Ex ta IIIC Da X
  • Dust explosion protection IECEx - Ex ta IIIC Da
  • Firedamp protection ATEX - I M2 Ex d I Mb
  • Firedamp protection ATEX 2 - I M2 Ex e I Mb
  • Firedamp protection IECEx - Ex d I Mb
  • Firedamp protection IECEx 2 - Ex e I Mb
  • Gas explosion protection ATEX - II 2 G Ex d IIC Gb
  • Gas explosion protection ATEX 2 - II 2 G Ex e Gb
  • Gas explosion protection EAC - 1 Ex d e IIC Gb X 2 Ex nR IIC Gc X
  • Gas explosion protection IECEx - Ex d IIC Gb
  • Gas explosion protection IECEx 2 - Ex e Gb
  • IECEX dust certificate - IECEx SIR 13.0027 X
  • IECEx firedamp certificate - IECEx SIM 14.0008 X
  • IECEX gas certificate - IECEx SIR 13.0027 X
  • IECEx restricted breathing certificate - IECEx SIR 13.0027 X
  • Note - The product certification and certificates can be downloaded from the manufacturer’s homepage (www.cmp-products.com)
  • Restricted breathing ATEX - II 3 G Ex nR IIC Gc
  • Restricted breathing IECEx - Ex nR IIC Gc

General

  • Functional Description - PX2K REX series metal Ex d and Ex e barrier cable entries are suitable for cables with SWA, braid- and tape-type steel and aluminium armouring. They are sealed by means of a liquid compound barrier ( RapidEx ), which reduces the amount of time, the costs and the risks involved in installation and affords increased reliability. They feature a multi-functional holder for the armouring and various seals. They are also EMC-tested.
  • Highlights - Greater reliability: Flood seal with integral protection, controlled outer load retention seal and over-rotation protection RapidEx compound barrier for easy installation and greater reliability Worldwide certification in accordance with IECEx, ATEX and cCSAus, EMC-tested
  • Product Description - Cable gland With RapidEx compound
  • Product Type - CMP-50S-PX2KREX
  • Title Product Variant Technical Data - CMP-50sPX2K-REX gland NB M50
  • WebCode - PX2KB

Mechanical Data

  • Armouring type - All armouring
  • Armouring type 2 - without lead sheath
  • Armouring type 3 - with barrier seal
  • Clamping range - 35.20 - 46.70 mm
  • Clamping range max. - 46.70 mm
  • Clamping range min. - 35.20 mm
  • Construction type - BS 6121, IEC/EN 62444
  • Degree of protection (IP) - IP66
  • Degree of protection note - IP67 and IP68 mounting in accordance with the specifications of the manufacturer, CMP
  • Gland size - 50s
  • Grooved cone - 0.40 … 1.60 mm
  • Inner conduit diameter max. - 36.90 mm
  • Inner sheath - 36.60 mm
  • Lot size - 1
  • Material - Nickel-plated brass
  • Material sealing ring - Viton
  • Max. number of cores - 89
  • Outer sheath - 35.20 … 46.70 mm
  • Protrusion length - 77.00 mm
  • PVC-shroud - PVC18
  • Sealing material - SOLO LSF
  • Silicone-free - No
  • Stepped cone - 2.00 … 2.50 mm
  • Thread length - 15.000 mm
  • Thread pitch - 1,5
  • Thread size - M50
  • Thread standard - metric
  • Weight - 0.900 kg
  • Width across corners - 66.00 mm
  • Width across flats - 60.00 mm
246654
246654
R. STAHL Cable Gland with RapidEx Compound
Greater reliability: Flood seal with integral protection, controlled outer load retention seal and over-rotation protection

RapidExcompound barrier for easy installation and greater reliability

Worldwide certification in accordance with IECEx, ATEX and cCSAus, EMC-tested

Ambient Conditions

  • Ambient temperature - -60 °C ... +85 °C
  • Ambient temperature max. - +85 °C
  • Ambient temperature min. - -60 °C

Electrical Data

  • Ex version - Ex e & Ex d & Ex nR & Ex ta

Explosion Protection

  • Ambient temperature °C - -60 - 85 °C
  • Application range (zones) - 1, 2, 20, 21, 22
  • ATEX dust certificate - SIRA 13 ATEX 1072 X
  • ATEX firedamp certificate - SIRA 13 ATEX 1072 X
  • ATEX gas certificate - SIRA 13 ATEX 1072 X
  • ATEX restricted breathing certificate - SIRA 13 ATEX 4078 X
  • Certificate EAC - TS RU S-GB.AA87.B.00487
  • Dust explosion protection ATEX - II 1 D Ex ta IIIC Da
  • Dust explosion protection EAC - Ex ta IIIC Da X
  • Dust explosion protection IECEx - Ex ta IIIC Da
  • Firedamp protection ATEX - I M2 Ex d I Mb
  • Firedamp protection ATEX 2 - I M2 Ex e I Mb
  • Firedamp protection IECEx - Ex d I Mb
  • Firedamp protection IECEx 2 - Ex e I Mb
  • Gas explosion protection ATEX - II 2 G Ex d IIC Gb
  • Gas explosion protection ATEX 2 - II 2 G Ex e Gb
  • Gas explosion protection EAC - 1 Ex d e IIC Gb X 2 Ex nR IIC Gc X
  • Gas explosion protection IECEx - Ex d IIC Gb
  • Gas explosion protection IECEx 2 - Ex e Gb
  • IECEX dust certificate - IECEx SIR 13.0027 X
  • IECEx firedamp certificate - IECEx SIM 14.0008 X
  • IECEX gas certificate - IECEx SIR 13.0027 X
  • IECEx restricted breathing certificate - IECEx SIR 13.0027 X
  • Note - The product certification and certificates can be downloaded from the manufacturer’s homepage (www.cmp-products.com)
  • Restricted breathing ATEX - II 3 G Ex nR IIC Gc
  • Restricted breathing IECEx - Ex nR IIC Gc

General

  • Functional Description - PX2K REX series metal Ex d and Ex e barrier cable entries are suitable for cables with SWA, braid- and tape-type steel and aluminium armouring. They are sealed by means of a liquid compound barrier ( RapidEx ), which reduces the amount of time, the costs and the risks involved in installation and affords increased reliability. They feature a multi-functional holder for the armouring and various seals. They are also EMC-tested.
  • Highlights - Greater reliability: Flood seal with integral protection, controlled outer load retention seal and over-rotation protection RapidEx compound barrier for easy installation and greater reliability Worldwide certification in accordance with IECEx, ATEX and cCSAus, EMC-tested
  • Product Description - Cable gland With RapidEx compound
  • Product Type - CMP-50-PX2KREX
  • Title Product Variant Technical Data - CMP-50PX2K-REX gland NB M50
  • WebCode - PX2KB

Mechanical Data

  • Armouring type - All armouring
  • Armouring type 2 - without lead sheath
  • Armouring type 3 - with barrier seal
  • Clamping range - 40.40 - 53.00 mm
  • Clamping range max. - 53.00 mm
  • Clamping range min. - 40.40 mm
  • Construction type - BS 6121, IEC/EN 62444
  • Degree of protection (IP) - IP66
  • Degree of protection note - IP67 and IP68 mounting in accordance with the specifications of the manufacturer, CMP
  • Gland size - 50
  • Grooved cone - 0.60 … 1.60 mm
  • Inner conduit diameter max. - 41.30 mm
  • Inner sheath - 41.00 mm
  • Lot size - 1
  • Material - Nickel-plated brass
  • Material sealing ring - Viton
  • Max. number of cores - 89
  • Outer sheath - 40.40 … 53.00 mm
  • Protrusion length - 77.00 mm
  • PVC-shroud - PVC21
  • Sealing material - SOLO LSF
  • Silicone-free - No
  • Stepped cone - 2.00 … 2.50 mm
  • Thread length - 15.000 mm
  • Thread pitch - 1,5
  • Thread size - M50
  • Thread standard - metric
  • Weight - 1.190 kg
  • Width across corners - 77.00 mm
  • Width across flats - 70.00 mm
246655
246655
R. STAHL Cable Gland with RapidEx Compound
Greater reliability: Flood seal with integral protection, controlled outer load retention seal and over-rotation protection

RapidExcompound barrier for easy installation and greater reliability

Worldwide certification in accordance with IECEx, ATEX and cCSAus, EMC-tested

Ambient Conditions

  • Ambient temperature - -60 °C ... +85 °C
  • Ambient temperature max. - +85 °C
  • Ambient temperature min. - -60 °C

Electrical Data

  • Ex version - Ex e & Ex d & Ex nR & Ex ta

Explosion Protection

  • Ambient temperature °C - -60 - 85 °C
  • Application range (zones) - 1, 2, 20, 21, 22
  • ATEX dust certificate - SIRA 13 ATEX 1072 X
  • ATEX firedamp certificate - SIRA 13 ATEX 1072 X
  • ATEX gas certificate - SIRA 13 ATEX 1072 X
  • ATEX restricted breathing certificate - SIRA 13 ATEX 4078 X
  • Certificate EAC - TS RU S-GB.AA87.B.00487
  • Dust explosion protection ATEX - II 1 D Ex ta IIIC Da
  • Dust explosion protection EAC - Ex ta IIIC Da X
  • Dust explosion protection IECEx - Ex ta IIIC Da
  • Firedamp protection ATEX - I M2 Ex d I Mb
  • Firedamp protection ATEX 2 - I M2 Ex e I Mb
  • Firedamp protection IECEx - Ex d I Mb
  • Firedamp protection IECEx 2 - Ex e I Mb
  • Gas explosion protection ATEX - II 2 G Ex d IIC Gb
  • Gas explosion protection ATEX 2 - II 2 G Ex e Gb
  • Gas explosion protection EAC - 1 Ex d e IIC Gb X 2 Ex nR IIC Gc X
  • Gas explosion protection IECEx - Ex d IIC Gb
  • Gas explosion protection IECEx 2 - Ex e Gb
  • IECEX dust certificate - IECEx SIR 13.0027 X
  • IECEx firedamp certificate - IECEx SIM 14.0008 X
  • IECEX gas certificate - IECEx SIR 13.0027 X
  • IECEx restricted breathing certificate - IECEx SIR 13.0027 X
  • Note - The product certification and certificates can be downloaded from the manufacturer’s homepage (www.cmp-products.com)
  • Restricted breathing ATEX - II 3 G Ex nR IIC Gc
  • Restricted breathing IECEx - Ex nR IIC Gc

General

  • Functional Description - PX2K REX series metal Ex d and Ex e barrier cable entries are suitable for cables with SWA, braid- and tape-type steel and aluminium armouring. They are sealed by means of a liquid compound barrier ( RapidEx ), which reduces the amount of time, the costs and the risks involved in installation and affords increased reliability. They feature a multi-functional holder for the armouring and various seals. They are also EMC-tested.
  • Highlights - Greater reliability: Flood seal with integral protection, controlled outer load retention seal and over-rotation protection RapidEx compound barrier for easy installation and greater reliability Worldwide certification in accordance with IECEx, ATEX and cCSAus, EMC-tested
  • Product Description - Cable gland With RapidEx compound
  • Product Type - CMP-63S-PX2KREX
  • Title Product Variant Technical Data - CMP-63sPX2K-REX gland NB M63
  • WebCode - PX2KB

Mechanical Data

  • Armouring type - All armouring
  • Armouring type 2 - without lead sheath
  • Armouring type 3 - with barrier seal
  • Clamping range - 45.60 - 59.40 mm
  • Clamping range max. - 59.40 mm
  • Clamping range min. - 45.60 mm
  • Construction type - BS 6121, IEC/EN 62444
  • Degree of protection (IP) - IP66
  • Degree of protection note - IP67 and IP68 mounting in accordance with the specifications of the manufacturer, CMP
  • Gland size - 63s
  • Grooved cone - 0.60 … 1.60 mm
  • Inner conduit diameter max. - 48.40 mm
  • Inner sheath - 47.90 mm
  • Lot size - 1
  • Material - Nickel-plated brass
  • Material sealing ring - Viton
  • Max. number of cores - 115
  • Outer sheath - 45.60 … 59.40 mm
  • Protrusion length - 79.70 mm
  • PVC-shroud - PVC23
  • Sealing material - SOLO LSF
  • Silicone-free - No
  • Stepped cone - 2.00 … 2.50 mm
  • Thread length - 15.000 mm
  • Thread pitch - 1,5
  • Thread size - M63
  • Thread standard - metric
  • Weight - 1.390 kg
  • Width across corners - 82.50 mm
  • Width across flats - 75.00 mm
246656
246656
R. STAHL Cable Gland with RapidEx Compound
Greater reliability: Flood seal with integral protection, controlled outer load retention seal and over-rotation protection

RapidExcompound barrier for easy installation and greater reliability

Worldwide certification in accordance with IECEx, ATEX and cCSAus, EMC-tested

Ambient Conditions

  • Ambient temperature - -60 °C ... +85 °C
  • Ambient temperature max. - +85 °C
  • Ambient temperature min. - -60 °C

Electrical Data

  • Ex version - Ex e & Ex d & Ex nR & Ex ta

Explosion Protection

  • Ambient temperature °C - -60 - 85 °C
  • Application range (zones) - 1, 2, 20, 21, 22
  • ATEX dust certificate - SIRA 13 ATEX 1072 X
  • ATEX firedamp certificate - SIRA 13 ATEX 1072 X
  • ATEX gas certificate - SIRA 13 ATEX 1072 X
  • ATEX restricted breathing certificate - SIRA 13 ATEX 4078 X
  • Certificate EAC - TS RU S-GB.AA87.B.00487
  • Dust explosion protection ATEX - II 1 D Ex ta IIIC Da
  • Dust explosion protection EAC - Ex ta IIIC Da X
  • Dust explosion protection IECEx - Ex ta IIIC Da
  • Firedamp protection ATEX - I M2 Ex d I Mb
  • Firedamp protection ATEX 2 - I M2 Ex e I Mb
  • Firedamp protection IECEx - Ex d I Mb
  • Firedamp protection IECEx 2 - Ex e I Mb
  • Gas explosion protection ATEX - II 2 G Ex d IIC Gb
  • Gas explosion protection ATEX 2 - II 2 G Ex e Gb
  • Gas explosion protection EAC - 1 Ex d e IIC Gb X 2 Ex nR IIC Gc X
  • Gas explosion protection IECEx - Ex d IIC Gb
  • Gas explosion protection IECEx 2 - Ex e Gb
  • IECEX dust certificate - IECEx SIR 13.0027 X
  • IECEx firedamp certificate - IECEx SIM 14.0008 X
  • IECEX gas certificate - IECEx SIR 13.0027 X
  • IECEx restricted breathing certificate - IECEx SIR 13.0027 X
  • Note - The product certification and certificates can be downloaded from the manufacturer’s homepage (www.cmp-products.com)
  • Restricted breathing ATEX - II 3 G Ex nR IIC Gc
  • Restricted breathing IECEx - Ex nR IIC Gc

General

  • Functional Description - PX2K REX series metal Ex d and Ex e barrier cable entries are suitable for cables with SWA, braid- and tape-type steel and aluminium armouring. They are sealed by means of a liquid compound barrier ( RapidEx ), which reduces the amount of time, the costs and the risks involved in installation and affords increased reliability. They feature a multi-functional holder for the armouring and various seals. They are also EMC-tested.
  • Highlights - Greater reliability: Flood seal with integral protection, controlled outer load retention seal and over-rotation protection RapidEx compound barrier for easy installation and greater reliability Worldwide certification in accordance with IECEx, ATEX and cCSAus, EMC-tested
  • Product Description - Cable gland With RapidEx compound
  • Product Type - CMP-63-PX2KREX
  • Title Product Variant Technical Data - CMP-63PX2K-REX gland NB M63
  • WebCode - PX2KB

Mechanical Data

  • Armouring type - All armouring
  • Armouring type 2 - without lead sheath
  • Armouring type 3 - with barrier seal
  • Clamping range - 54.60 - 65.80 mm
  • Clamping range max. - 65.80 mm
  • Clamping range min. - 54.60 mm
  • Construction type - BS 6121, IEC/EN 62444
  • Degree of protection (IP) - IP66
  • Degree of protection note - IP67 and IP68 mounting in accordance with the specifications of the manufacturer, CMP
  • Gland size - 63
  • Grooved cone - 0.60 … 1.60 mm
  • Inner conduit diameter max. - 54.00 mm
  • Inner sheath - 53.70 mm
  • Lot size - 1
  • Material - Nickel-plated brass
  • Material sealing ring - Viton
  • Max. number of cores - 115
  • Outer sheath - 54.60 … 65.80 mm
  • Protrusion length - 80.30 mm
  • PVC-shroud - PVC25
  • Sealing material - SOLO LSF
  • Silicone-free - No
  • Stepped cone - 2.00 … 2.50 mm
  • Thread length - 15.000 mm
  • Thread pitch - 1,5
  • Thread size - M63
  • Thread standard - metric
  • Weight - 1.410 kg
  • Width across corners - 88.00 mm
  • Width across flats - 80.00 mm
246657
246657
R. STAHL Cable Gland with RapidEx Compound
Greater reliability: Flood seal with integral protection, controlled outer load retention seal and over-rotation protection

RapidExcompound barrier for easy installation and greater reliability

Worldwide certification in accordance with IECEx, ATEX and cCSAus, EMC-tested

Ambient Conditions

  • Ambient temperature - -60 °C ... +85 °C
  • Ambient temperature max. - +85 °C
  • Ambient temperature min. - -60 °C

Electrical Data

  • Ex version - Ex e & Ex d & Ex nR & Ex ta

Explosion Protection

  • Ambient temperature °C - -60 - 85 °C
  • Application range (zones) - 1, 2, 20, 21, 22
  • ATEX dust certificate - SIRA 13 ATEX 1072 X
  • ATEX firedamp certificate - SIRA 13 ATEX 1072 X
  • ATEX gas certificate - SIRA 13 ATEX 1072 X
  • ATEX restricted breathing certificate - SIRA 13 ATEX 4078 X
  • Certificate EAC - TS RU S-GB.AA87.B.00487
  • Dust explosion protection ATEX - II 1 D Ex ta IIIC Da
  • Dust explosion protection EAC - Ex ta IIIC Da X
  • Dust explosion protection IECEx - Ex ta IIIC Da
  • Firedamp protection ATEX - I M2 Ex d I Mb
  • Firedamp protection ATEX 2 - I M2 Ex e I Mb
  • Firedamp protection IECEx - Ex d I Mb
  • Firedamp protection IECEx 2 - Ex e I Mb
  • Gas explosion protection ATEX - II 2 G Ex d IIC Gb
  • Gas explosion protection ATEX 2 - II 2 G Ex e Gb
  • Gas explosion protection EAC - 1 Ex d e IIC Gb X 2 Ex nR IIC Gc X
  • Gas explosion protection IECEx - Ex d IIC Gb
  • Gas explosion protection IECEx 2 - Ex e Gb
  • IECEX dust certificate - IECEx SIR 13.0027 X
  • IECEx firedamp certificate - IECEx SIM 14.0008 X
  • IECEX gas certificate - IECEx SIR 13.0027 X
  • IECEx restricted breathing certificate - IECEx SIR 13.0027 X
  • Note - The product certification and certificates can be downloaded from the manufacturer’s homepage (www.cmp-products.com)
  • Restricted breathing ATEX - II 3 G Ex nR IIC Gc
  • Restricted breathing IECEx - Ex nR IIC Gc

General

  • Functional Description - PX2K REX series metal Ex d and Ex e barrier cable entries are suitable for cables with SWA, braid- and tape-type steel and aluminium armouring. They are sealed by means of a liquid compound barrier ( RapidEx ), which reduces the amount of time, the costs and the risks involved in installation and affords increased reliability. They feature a multi-functional holder for the armouring and various seals. They are also EMC-tested.
  • Highlights - Greater reliability: Flood seal with integral protection, controlled outer load retention seal and over-rotation protection RapidEx compound barrier for easy installation and greater reliability Worldwide certification in accordance with IECEx, ATEX and cCSAus, EMC-tested
  • Product Description - Cable gland With RapidEx compound
  • Product Type - CMP-75S-PX2KREX
  • Title Product Variant Technical Data - CMP-75sPX2K-REX gland NB M75
  • WebCode - PX2KB

Mechanical Data

  • Armouring type - All armouring
  • Armouring type 2 - without lead sheath
  • Armouring type 3 - with barrier seal
  • Clamping range - 59.00 - 72.00 mm
  • Clamping range max. - 72.00 mm
  • Clamping range min. - 59.00 mm
  • Construction type - BS 6121, IEC/EN 62444
  • Degree of protection (IP) - IP66
  • Degree of protection note - IP67 and IP68 mounting in accordance with the specifications of the manufacturer, CMP
  • Gland size - 75s
  • Grooved cone - 0.60 … 1.60 mm
  • Inner conduit diameter max. - 60.20 mm
  • Inner sheath - 59.90 mm
  • Lot size - 1
  • Material - Nickel-plated brass
  • Material sealing ring - Viton
  • Max. number of cores - 140
  • Outer sheath - 59.00 … 72.00 mm
  • Protrusion length - 86.80 mm
  • PVC-shroud - PVC28
  • Sealing material - SOLO LSF
  • Silicone-free - No
  • Stepped cone - 2.00 … 2.50 mm
  • Thread length - 15.000 mm
  • Thread pitch - 1,5
  • Thread size - M75
  • Thread standard - metric
  • Weight - 2.090 kg
  • Width across corners - 99.00 mm
  • Width across flats - 90.00 mm
246658
246658
R. STAHL Cable Gland with RapidEx Compound
Greater reliability: Flood seal with integral protection, controlled outer load retention seal and over-rotation protection

RapidExcompound barrier for easy installation and greater reliability

Worldwide certification in accordance with IECEx, ATEX and cCSAus, EMC-tested

Ambient Conditions

  • Ambient temperature - -60 °C ... +85 °C
  • Ambient temperature max. - +85 °C
  • Ambient temperature min. - -60 °C

Electrical Data

  • Ex version - Ex e & Ex d & Ex nR & Ex ta

Explosion Protection

  • Ambient temperature °C - -60 - 85 °C
  • Application range (zones) - 1, 2, 20, 21, 22
  • ATEX dust certificate - SIRA 13 ATEX 1072 X
  • ATEX firedamp certificate - SIRA 13 ATEX 1072 X
  • ATEX gas certificate - SIRA 13 ATEX 1072 X
  • ATEX restricted breathing certificate - SIRA 13 ATEX 4078 X
  • Certificate EAC - TS RU S-GB.AA87.B.00487
  • Dust explosion protection ATEX - II 1 D Ex ta IIIC Da
  • Dust explosion protection EAC - Ex ta IIIC Da X
  • Dust explosion protection IECEx - Ex ta IIIC Da
  • Firedamp protection ATEX - I M2 Ex d I Mb
  • Firedamp protection ATEX 2 - I M2 Ex e I Mb
  • Firedamp protection IECEx - Ex d I Mb
  • Firedamp protection IECEx 2 - Ex e I Mb
  • Gas explosion protection ATEX - II 2 G Ex d IIC Gb
  • Gas explosion protection ATEX 2 - II 2 G Ex e Gb
  • Gas explosion protection EAC - 1 Ex d e IIC Gb X 2 Ex nR IIC Gc X
  • Gas explosion protection IECEx - Ex d IIC Gb
  • Gas explosion protection IECEx 2 - Ex e Gb
  • IECEX dust certificate - IECEx SIR 13.0027 X
  • IECEx firedamp certificate - IECEx SIM 14.0008 X
  • IECEX gas certificate - IECEx SIR 13.0027 X
  • IECEx restricted breathing certificate - IECEx SIR 13.0027 X
  • Note - The product certification and certificates can be downloaded from the manufacturer’s homepage (www.cmp-products.com)
  • Restricted breathing ATEX - II 3 G Ex nR IIC Gc
  • Restricted breathing IECEx - Ex nR IIC Gc

General

  • Functional Description - PX2K REX series metal Ex d and Ex e barrier cable entries are suitable for cables with SWA, braid- and tape-type steel and aluminium armouring. They are sealed by means of a liquid compound barrier ( RapidEx ), which reduces the amount of time, the costs and the risks involved in installation and affords increased reliability. They feature a multi-functional holder for the armouring and various seals. They are also EMC-tested.
  • Highlights - Greater reliability: Flood seal with integral protection, controlled outer load retention seal and over-rotation protection RapidEx compound barrier for easy installation and greater reliability Worldwide certification in accordance with IECEx, ATEX and cCSAus, EMC-tested
  • Product Description - Cable gland With RapidEx compound
  • Product Type - CMP-75-PX2KREX
  • Title Product Variant Technical Data - CMP-75PX2K-REX gland NB M75
  • WebCode - PX2KB

Mechanical Data

  • Armouring type - All armouring
  • Armouring type 2 - without lead sheath
  • Armouring type 3 - with barrier seal
  • Clamping range - 66.70 - 78.40 mm
  • Clamping range max. - 78.40 mm
  • Clamping range min. - 66.70 mm
  • Construction type - BS 6121, IEC/EN 62444
  • Degree of protection (IP) - IP66
  • Degree of protection note - IP67 and IP68 mounting in accordance with the specifications of the manufacturer, CMP
  • Gland size - 75
  • Grooved cone - 0.60 … 1.60 mm
  • Inner conduit diameter max. - 64.20 mm
  • Inner sheath - 64.20 mm
  • Lot size - 1
  • Material - Nickel-plated brass
  • Material sealing ring - Viton
  • Max. number of cores - 140
  • Outer sheath - 66.70 … 78.40 mm
  • Protrusion length - 88.30 mm
  • PVC-shroud - PVC30
  • Sealing material - SOLO LSF
  • Silicone-free - No
  • Stepped cone - 2.50 … 3.00 mm
  • Thread length - 15.000 mm
  • Thread pitch - 1,5
  • Thread size - M75
  • Thread standard - metric
  • Weight - 2.540 kg
  • Width across corners - 110.00 mm
  • Width across flats - 100.00 mm
246659
246659
R. STAHL Cable Gland with RapidEx Compound
Greater reliability: Flood seal with integral protection, controlled outer load retention seal and over-rotation protection

RapidExcompound barrier for easy installation and greater reliability

Worldwide certification in accordance with IECEx, ATEX and cCSAus, EMC-tested

Ambient Conditions

  • Ambient temperature - -60 °C ... +85 °C
  • Ambient temperature max. - +85 °C
  • Ambient temperature min. - -60 °C

Electrical Data

  • Ex version - Ex e & Ex d & Ex nR & Ex ta

Explosion Protection

  • Ambient temperature °C - -60 - 85 °C
  • Application range (zones) - 1, 2, 20, 21, 22
  • ATEX dust certificate - SIRA 13 ATEX 1072 X
  • ATEX firedamp certificate - SIRA 13 ATEX 1072 X
  • ATEX gas certificate - SIRA 13 ATEX 1072 X
  • ATEX restricted breathing certificate - SIRA 13 ATEX 4078 X
  • Certificate EAC - TS RU S-GB.AA87.B.00487
  • Dust explosion protection ATEX - II 1 D Ex ta IIIC Da
  • Dust explosion protection EAC - Ex ta IIIC Da X
  • Dust explosion protection IECEx - Ex ta IIIC Da
  • Firedamp protection ATEX - I M2 Ex d I Mb
  • Firedamp protection ATEX 2 - I M2 Ex e I Mb
  • Firedamp protection IECEx - Ex d I Mb
  • Firedamp protection IECEx 2 - Ex e I Mb
  • Gas explosion protection ATEX - II 2 G Ex d IIC Gb
  • Gas explosion protection ATEX 2 - II 2 G Ex e Gb
  • Gas explosion protection EAC - 1 Ex d e IIC Gb X 2 Ex nR IIC Gc X
  • Gas explosion protection IECEx - Ex d IIC Gb
  • Gas explosion protection IECEx 2 - Ex e Gb
  • IECEX dust certificate - IECEx SIR 13.0027 X
  • IECEx firedamp certificate - IECEx SIM 14.0008 X
  • IECEX gas certificate - IECEx SIR 13.0027 X
  • IECEx restricted breathing certificate - IECEx SIR 13.0027 X
  • Note - The product certification and certificates can be downloaded from the manufacturer’s homepage (www.cmp-products.com)
  • Restricted breathing ATEX - II 3 G Ex nR IIC Gc
  • Restricted breathing IECEx - Ex nR IIC Gc

General

  • Functional Description - PX2K REX series metal Ex d and Ex e barrier cable entries are suitable for cables with SWA, braid- and tape-type steel and aluminium armouring. They are sealed by means of a liquid compound barrier ( RapidEx ), which reduces the amount of time, the costs and the risks involved in installation and affords increased reliability. They feature a multi-functional holder for the armouring and various seals. They are also EMC-tested.
  • Highlights - Greater reliability: Flood seal with integral protection, controlled outer load retention seal and over-rotation protection RapidEx compound barrier for easy installation and greater reliability Worldwide certification in accordance with IECEx, ATEX and cCSAus, EMC-tested
  • Product Description - Cable gland With RapidEx compound
  • Product Type - CMP-20S16-PX2KREX-1/2
  • Title Product Variant Technical Data - CMP-20s/16PX2K-REX gland NB NPT 1/2"
  • WebCode - PX2KB

Mechanical Data

  • Armouring type - All armouring
  • Armouring type 2 - without lead sheath
  • Armouring type 3 - with barrier seal
  • Clamping range - 6.10 - 13.10 mm
  • Clamping range max. - 13.10 mm
  • Clamping range min. - 6.10 mm
  • Construction type - BS 6121, IEC/EN 62444
  • Degree of protection (IP) - IP66
  • Degree of protection note - IP67 and IP68 mounting in accordance with the specifications of the manufacturer, CMP
  • Gland size - 20s/16
  • Grooved cone - 0.30 … 1.00 mm
  • Inner conduit diameter max. - 11.70 mm
  • Inner sheath - 11.70 mm
  • Lot size - 1
  • Material - Nickel-plated brass
  • Material sealing ring - Viton
  • Max. number of cores - 11
  • Outer sheath - 6.10 … 13.10 mm
  • Protrusion length - 62.00 mm
  • PVC-shroud - PVC06
  • Sealing material - SOLO LSF
  • Silicone-free - No
  • Stepped cone - 0.80 … 1.25 mm
  • Thread length - 19.900 mm
  • Thread pitch - 14 TPI
  • Thread size - NPT1/2
  • Thread standard - NPT
  • Weight - 0.240 kg
  • Width across corners - 33.60 mm
  • Width across flats - 30.50 mm
246660
246660
R. STAHL Cable Gland with RapidEx Compound
Greater reliability: Flood seal with integral protection, controlled outer load retention seal and over-rotation protection

RapidExcompound barrier for easy installation and greater reliability

Worldwide certification in accordance with IECEx, ATEX and cCSAus, EMC-tested

Ambient Conditions

  • Ambient temperature - -60 °C ... +85 °C
  • Ambient temperature max. - +85 °C
  • Ambient temperature min. - -60 °C

Electrical Data

  • Ex version - Ex e & Ex d & Ex nR & Ex ta

Explosion Protection

  • Ambient temperature °C - -60 - 85 °C
  • Application range (zones) - 1, 2, 20, 21, 22
  • ATEX dust certificate - SIRA 13 ATEX 1072 X
  • ATEX firedamp certificate - SIRA 13 ATEX 1072 X
  • ATEX gas certificate - SIRA 13 ATEX 1072 X
  • ATEX restricted breathing certificate - SIRA 13 ATEX 4078 X
  • Certificate EAC - TS RU S-GB.AA87.B.00487
  • Dust explosion protection ATEX - II 1 D Ex ta IIIC Da
  • Dust explosion protection EAC - Ex ta IIIC Da X
  • Dust explosion protection IECEx - Ex ta IIIC Da
  • Firedamp protection ATEX - I M2 Ex d I Mb
  • Firedamp protection ATEX 2 - I M2 Ex e I Mb
  • Firedamp protection IECEx - Ex d I Mb
  • Firedamp protection IECEx 2 - Ex e I Mb
  • Gas explosion protection ATEX - II 2 G Ex d IIC Gb
  • Gas explosion protection ATEX 2 - II 2 G Ex e Gb
  • Gas explosion protection EAC - 1 Ex d e IIC Gb X 2 Ex nR IIC Gc X
  • Gas explosion protection IECEx - Ex d IIC Gb
  • Gas explosion protection IECEx 2 - Ex e Gb
  • IECEX dust certificate - IECEx SIR 13.0027 X
  • IECEx firedamp certificate - IECEx SIM 14.0008 X
  • IECEX gas certificate - IECEx SIR 13.0027 X
  • IECEx restricted breathing certificate - IECEx SIR 13.0027 X
  • Note - The product certification and certificates can be downloaded from the manufacturer’s homepage (www.cmp-products.com)
  • Restricted breathing ATEX - II 3 G Ex nR IIC Gc
  • Restricted breathing IECEx - Ex nR IIC Gc

General

  • Functional Description - PX2K REX series metal Ex d and Ex e barrier cable entries are suitable for cables with SWA, braid- and tape-type steel and aluminium armouring. They are sealed by means of a liquid compound barrier ( RapidEx ), which reduces the amount of time, the costs and the risks involved in installation and affords increased reliability. They feature a multi-functional holder for the armouring and various seals. They are also EMC-tested.
  • Highlights - Greater reliability: Flood seal with integral protection, controlled outer load retention seal and over-rotation protection RapidEx compound barrier for easy installation and greater reliability Worldwide certification in accordance with IECEx, ATEX and cCSAus, EMC-tested
  • Product Description - Cable gland With RapidEx compound
  • Product Type - CMP-20-PX2KREX-1/2
  • Title Product Variant Technical Data - CMP-20PX2K-REX gland NB NPT 1/2"
  • WebCode - PX2KB

Mechanical Data

  • Armouring type - All armouring
  • Armouring type 2 - without lead sheath
  • Armouring type 3 - with barrier seal
  • Clamping range - 12.50 - 20.90 mm
  • Clamping range max. - 20.90 mm
  • Clamping range min. - 12.50 mm
  • Construction type - BS 6121, IEC/EN 62444
  • Degree of protection (IP) - IP66
  • Degree of protection note - IP67 and IP68 mounting in accordance with the specifications of the manufacturer, CMP
  • Gland size - 20
  • Grooved cone - 0.40 … 1.00 mm
  • Inner conduit diameter max. - 12.90 mm
  • Inner sheath - 12.60 mm
  • Lot size - 1
  • Material - Nickel-plated brass
  • Material sealing ring - Viton
  • Max. number of cores - 11
  • Outer sheath - 12.50 … 20.90 mm
  • Protrusion length - 63.00 mm
  • PVC-shroud - PVC06
  • Sealing material - SOLO LSF
  • Silicone-free - No
  • Stepped cone - 0.80 … 1.25 mm
  • Thread length - 19.900 mm
  • Thread pitch - 14 TPI
  • Thread size - NPT1/2
  • Thread standard - NPT
  • Weight - 0.240 kg
  • Width across corners - 33.60 mm
  • Width across flats - 30.50 mm
1 - 12 of 20 Part Numbers
Instantly populate your store or catalog
CREATE YOUR SITE
or book a demo with the Yodify Team
show more
