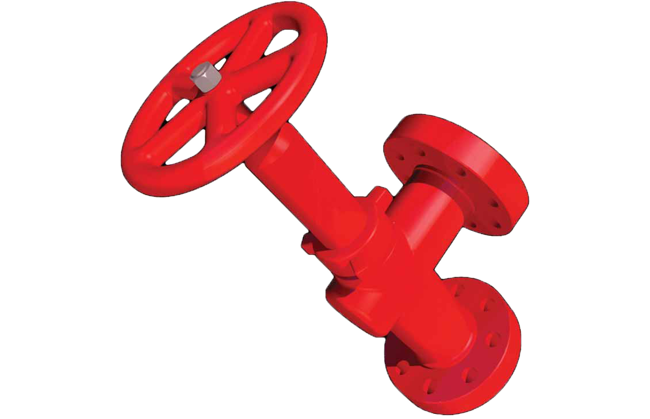

AOP Choke Valve
Brand: CameronAOP chokes are general purpose chokes suitable for a host of applications within the oil and gas industry.
Based upon the proven needle and seat principle, and optimized through design, these choke products offer a comprehensive solution for challenging flow control applications throughout the industry.
AOP chokes are characterized by their robust, clean design features and rugged, easily assembled components.
They are available in pressures ratings up to 10,000 psi and in a combination of threaded, butt-welded and flanged interface connections.
Positive or adjustable trim configurations may also be specified.
As part of a commitment to meeting customer needs, AOP chokes are stocked by a network of authorized distributors and are marketed worldwide through our representatives
Features- Adjustable and positive option
- ANSI Class 150 through 600 and ANSI Class 2000 through 10,000
- Adjustable models easily adaptable to positive configuration
- Forged or cast carbon steel body
- Heat-treated, hardened steel stem and seat with optional stainless steel/tungsten carbide trim
- Series BHF interchangeable with CAMERON® H2 chokes
- Thumbscrew secures stem position at any setting
- Lube fitting enhances corrosion-resistant, smooth stem operation
- Adjustable models available with ¾” maximum orifice or 1” maximum orifice, both adjustable in 1/64” increments
- 100% production testing
- Hammer lug models facilitate quick disassembly – lug is pressure-relief vented for safe removal
