808 Embedded Accelerometer

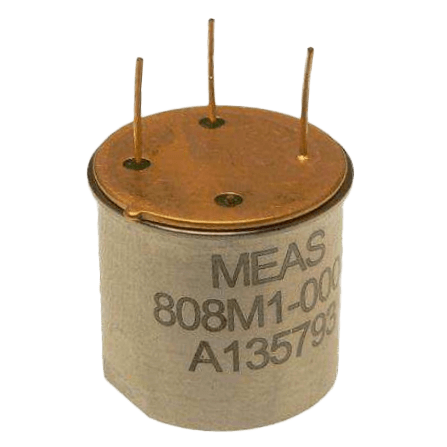

Brand: American Sensor Technologies IncThe Model 808 is a miniature adhesive mount IEPE accelerometer built on a 3-pin TO-8 header.
It is available in ±10g and ±50g dynamic ranges and offers a flat frequency response to 6kHz. The accelerometer features a hermetic construction in a TO-8 header configuration.
The model 808 incorporates a stable piezoceramic crystal and an integrated charge converter amplifier in a 100% shielded housing suitable for many embedded OEM applications. The accelerometer is offered in two configurations; one for adhesive mounting and one for stud mounting.
Features- ±10g and ±50g Range
- Wide bandwidth up to 6kHz
- TO-8 Configuration
- Hermetically Sealed
- -40°C to +100°C Operating Range
- Case Grounded Design
Specifications
Approvals & Certifications
- CE
- RoHS
Element
- Ceramic
Enclosure, Body Material
- Stainless Steel
Frequency
- 0.3 to 6,000 Hz - ± 3 dB
- 1 to 4,000 Hz - ± 1 dB
Mounting
- Adhesive
NACE & NIST
- NIST
Operating Temperature
- -40° to 100° C (-40° to 212° F)
Output Load
- < 100 ohms - Output Impedance
Output Noise
- 0.0008 to 0.001 G RMS - Residual Noise
Power Requirement
- 2 to 10 mA - Excitation Current
Sensitivity
- 100-500 mV/g
- 5 % - Transverse Sensitivity
Sensor, Probe Connection
- 2-Wire
Shock
- 5,000 G
Storage Temperature
- -54° to 125° C (-65° to 257° F)
Supply Voltage
- ± 5 V - Full Scale Output Voltage
- 18-30 Vdc - Compliance Voltage
- 6-13 Vdc - Bias Voltage
Temperature Effect
- ± 10 % - Temperature Response
- Machine Monitoring
- Low-Cost OEM Installation
- Permanent Structural Study
- Embedded Sensing Solution
