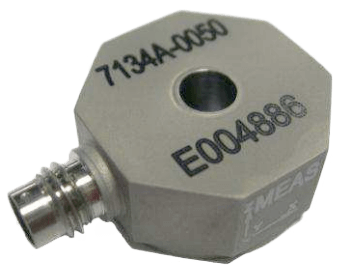

The Model 7134A is a true case isolated triaxial IEPE accelerometer available in ±50 to ±500 g dynamic ranges.

The accelerometer features three internally shielded accelerometer assemblies for superior noise isolation. The assemblies are installed in a hermetically sealed light weight Titanium housing with a 4-pin Microtech connector interface. The model 7134A features piezo-ceramic crystals in annular shear mode which provide a flat frequency response up to >7 kHz.
Features
  • 4-pin Connector Interface
  • Wide Bandwidth up to 7 kHz
  • Screw Mounting
  • Titanium, Light Weight
  • Annular Shear Mode Crystals
  • Stable Temperature Response

1 - 4 of 4 Part Numbers
7134A-0050
7134A-0050
  • Range - ± 50 G
7134A-0100
7134A-0100
  • Range - ± 100 G
7134A-0200
7134A-0200
  • Range - ± 200 G
7134A-0500
7134A-0500
  • Range - ± 500 G
1 - 4 of 4 Part Numbers

Specifications

Approvals & Certifications

  • CE
  • RoHS

Current

  • 2-10 mA - Excitation Current

Electrical Connectors

  • 4-Pin Receptacle

Enclosure, Body Material

  • Titanium

Frequency

  • 0.5 to 6,500 Hz ± 2 dB
  • 1 to 5,000 Hz ± 10 %
  • 43,000 Hz - Natural Frequency

Humidity

  • Hermetically Sealed

Load Impedance

  • < 100 ohms - Output Impedance

Mounting

  • #10-32 Screw Mounting

NACE & NIST

  • NIST Traceable Amplitude Calibration from 20 Hz to ± 2 dB Frequency Response Limit

Non-Linearity

  • ± 1 % of Full Scale Output

Operating Temperature

  • -55° to 125° C (-67° to 257° F)

Operating Voltages

  • 18-30 Vdc - Compliance Voltage

Output

  • ± 5 V - Full Scale Output Voltage

Output Noise

  • 0.0004 to 0.0012 G RMS - Broadband 1 Hz to 10 kHz: Residual Noise

Response Time

  • Discharge Time Constant: 0.8 to 1.2 seconds

Sensitivity

  • < 5 % - Transverse Sensitivity
  • 10 to 100 mV/g

Sensor, Probe Material

  • Ceramic (Shear Mode) - Sensing Element

Shock

  • 5,000 G

Storage Temperature

  • -55° to 125° C (-67° to 257° F)

Supply Voltage

  • 6-13 Vdc - Bias Voltage

Torque

  • 18 In/Lbs

  • Flight Testing
  • Harsh Environments
  • Health Usage Monitoring Systems
  • Laboratory Testing
  • Vibration & Shock Monitoring
