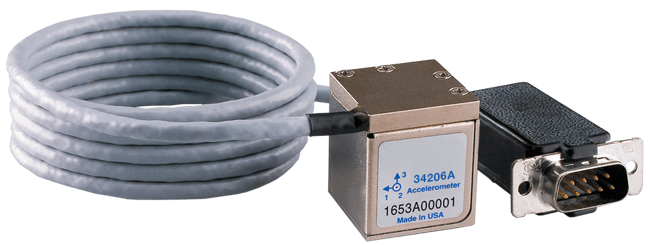

34206A Plug & Play Accelerometer

Brand: American Sensor Technologies Inc

The 4206A accelerometer provides the accuracy required by most measurement applications without any compensation.

Critical applications requiring higher accuracy can use the alignment data provided on the calibration certificate to compensate for any small residual error. Choose the bandwidth option best suited for your application to measure ±100 g accelerations on each of three axes.

Each axial sensor has been tested over the -40 to 85° C temperature range and has a nominal full scale output swing of ±2.25 volts. The zero g output level is nominally 2.5 volts. Precise values for each axis are available on the included calibration certificate.

1 - 6 of 6 Part Numbers
34206A-R100-B1K4-T004
34206A-R100-B1K4-T004
  • Range - ± 100 G
  • Bandwidth - 0 to 1,400 Hz
  • Termination - 4 Feet Cable with DB9M
34206A-R100-B208-T004
34206A-R100-B208-T004
  • Range - ± 100 G
  • Bandwidth - 0 to 208 Hz
  • Termination - 4 Feet Cable with DB9M
34206A-R100-B2K1-T004
34206A-R100-B2K1-T004
  • Range - ± 100 G
  • Bandwidth - 0 to 2,100 Hz
  • Termination - 4 Feet Cable with DB9M
34206A-R100-B2K5-T004
34206A-R100-B2K5-T004
  • Range - ± 100 G
  • Bandwidth - 0 to 2,500 Hz
  • Termination - 4 Feet Cable with DB9M
34206A-R100-B380-T004
34206A-R100-B380-T004
  • Range - ± 100 G
  • Bandwidth - 0 to 380 Hz
  • Termination - 4 Feet Cable with DB9M
34206A-R100-B944-T004
34206A-R100-B944-T004
  • Range - ± 100 G
  • Bandwidth - 0 to 944 Hz
  • Termination - 4 Feet Cable with DB9M
1 - 6 of 6 Part Numbers

Specifications

Accuracy

  • ± 1 % of Full Scale Reading - Non-Linearity
  • ± 1° C (± 1.8° F)

Frequency

  • 0 to 2,500 Hz - Frequency Response

Input

  • 33-50 mA - Input Current
  • 8-18 V - Input Voltage (Operating)

Materials of Construction

  • Aluminum - Nickel-Plated

Mounting

  • Mounting Holes

Output

  • 0.5 - 4.5 V - Output Voltage Swing

Output Noise

  • 100 μg/√Hz at 25° C

Sensitivity

  • 20 mV/g at 25° C
  • 6.45 mV/°C

Shock

  • ± 5,000 G - Any Axis for 0.1 milliseconds, Powered or UnPowered

Temperature Range

  • -40° to 85° C (-40° to 185° F)

Thermal Drift

  • ± 2 % at 25° C

Zero Offset

  • 2.5 ± 0.010 V at 25° C - Zero G Bias Level
