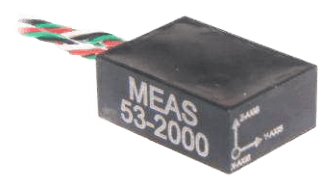

53, 53A Plug & Play Accelerometer
Brand: American Sensor Technologies Inc
The Model 53 Accelerometer is a small, compact triaxial device designed for vehicle impact and road testing.
The accelerometer incorporates gas-damped MEMS sensing elements with mechanical stops for high overload protection. Featuring ranges from ±50 to ±2,000 g and frequency response to 5,000 Hz, this sensor is easily mounted in hard to reach places on vehicles under test.
Features- -20 to 85° C Operating Range
- 2-10 Vdc Excitation
- ±50 mV Zero Measurand Output
- Gas Damping
- Mechanical Overload Stops
- Designed for Adhesive Mounting
Specifications
Accuracy
- ± 1.0 % of Full Scale - Non-Linearity
Applications
- Crash Testing
- Impact Testing
- Off Road Testing
- Vehicle Testing
Approvals & Certifications
- CE
- RoHS
Cable Material
- PFA Insulated
Electrical Connectors
- 30 AWG Conductors PFA Insulated Leads
- 32 AWG Twisted Conductors
Environmental Protection
- IP65
Excitation Voltage
- 2-10 Vdc
Frequency
- 0 to 4,500 Hz
- 4,000 to 26,000 Hz - Resonant Frequency
Insulation Resistance
- > 100 megaohms at 100 Vdc
Mounting
- Adhesive
NACE & NIST
- NIST
Operating Temperature
- -20° to 85° C (-4° to 185° F)
Output
- < ± 50 mV
Output Noise
- 10 µV RMS
Resistance
- 2,400 to 6,000 ohms - Input Resistance
- 2,400 to 6,000 ohms - Output Resistance
Seat / Seal Material
- Epoxy Sealed
Sensitivity
- < 3 % - Transverse Sensitivity
- -0.20 ± 0.05 %/°C - Thermal Sensitivity Shift
Shock
- 5,000 G
Storage Temperature
- -40° to 90° C (-40° to 194° F)
Thermal Drift
- ± 0.05 % of Full Scale/°C
