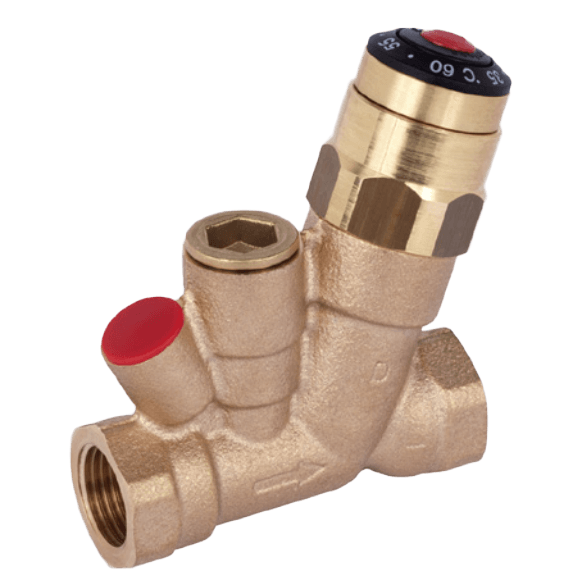

MTCV Multifunctional Thermostatic Circulation Valve
Brand: Danfoss
The MTCV is a multifunctional thermostatic balancing valve used in domestic hot water installations with circulation.
The MTCV provides a thermal balance in hot water installations by keeping a constant temperature in the system, thus limiting the flow in the circulation pipes to the minimum required level.
Specifications
Brand
Cone Material
- Stainless Steel
Enclosure, Body Material
- Rg5 Bronze
Flow Rate
- DN 15: 1.5 m³/hour (Kvs) at 20° C (68° F)
- DN 20: 1.8 m³/hour (Kvs) at 20° C (68° F)
Gasket Material
- Copper
Hysteresis
- 1.5 K
O-Ring Material
- EPDM
Operating Pressure
- psi: 145 (kPa: 1,000, bar: 10) - Max.
Proof Pressure
- psi: 232 (kPa: 1,600, bar: 16)
Sensor / Probe Type
- Pt1000
Spring Material
- Spring Housing: Cuphin Alloy
- Stainless Steel
Temperature Range
- 35° to 60° C (95° to 140° F)
- Maximum
Valve Size
- 1/2” (15 mm)
- 3/4” (20 mm)
- Domestic hot water installations with circulation
