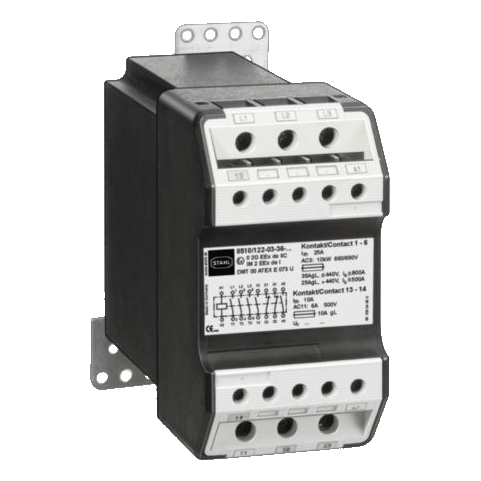

Contactor 4 kW / 400 V with 3 Main Contacts & Max. 4 Auxiliary Contacts Series 8510/122

Brand: R. STAHL AG

R. STAHL Series 8510/122 contactors are robust, type-tested standard components for switching motors in accordance with AC3. They have 3 main contacts which can be supplemented by a maximum of 4 auxiliary contacts.

Easily accessible terminals make installation simple and safe. The enclosure for the anti-vibration screw connection is made of corrosion-resistant material.
Features
  • High availability: Reliable motor contactors: 4 kW/400 V
  • 3 main contacts, up to 4 auxiliary contacts
  • Robust: Anti-vibration components in the corrosion-resistant enclosure

1 - 12 of 22 Part Numbers
145745
145745
R. STAHL Contactor
High availability: Reliable motor contactors: 4 kW/400 V

3 main contacts, up to 4 auxiliary contacts

Robust: Anti-vibration components in the corrosion-resistant enclosure

Ambient Conditions

  • Ambient temperature - -20 °C ... +40 °C
  • Ambient temperature max. - +40 °C
  • Ambient temperature min. - -20 °C

Electrical Data

  • Auxiliary contacts - 1 (1 NO)
  • Conventional thermal current - 20.00 A
  • Main contacts - 3-pole (3 NOs)
  • Switching capacity - 4 kW / 400 V AC3

Explosion Protection

  • Application range (zones) - 1, 2
  • ATEX firedamp certificate - DMT 00 ATEX E 073 U
  • ATEX gas certificate - DMT 00 ATEX E 073 U
  • Certificates - ATEX (BVS), Brazil (ULB), Canada (FM), IECEx (BVS), USA (FM)
  • Firedamp protection ATEX - I M2 Ex de I
  • Firedamp protection IECEx - Ex de I
  • Gas explosion protection ATEX - II 2 G Ex de IIC
  • Gas explosion protection IECEx - Ex de IIC
  • IECEx firedamp certificate - IECEx BVS 07.0029U
  • IECEX gas certificate - IECEx BVS 07.0029U

General

  • Functional Description - R. STAHL Series 8510/122 contactors are robust, type-tested standard components for switching motors in accordance with AC3. They have 3 main contacts which can be supplemented by a maximum of 4 auxiliary contacts. Easily accessible terminals make installation simple and safe. The enclosure for the anti-vibration screw connection is made of corrosion-resistant material.
  • Highlights - High availability: Reliable motor contactors: 4 kW/400 V 3 main contacts, up to 4 auxiliary contacts Robust: Anti-vibration components in the corrosion-resistant enclosure
  • Product Description - Contactor
  • Product Type - 8510/122-03-131-..0
  • Title Product Variant Technical Data - 8510/122-03-131-..0 Contactor 4kW/400V,a
  • WebCode - 8510B

Mechanical Data

  • Connection cross-section of auxiliary contact finely stranded max. - 1.50 mm²
  • Connection cross-section of auxiliary contact min. - 0.75 mm²
  • Connection cross-section of auxiliary contact solid max. - 2.50 mm²
  • Connection terminals finely-stranded max. - 6.00 mm²
  • Connection terminals min. - 1.50 mm²
  • Connection terminals solid max. - 10.00 mm²
  • Degree of protection (IP) - IP20
  • Depth - 168.000 mm
  • Enclosure material - Epoxy resin
  • Height - 130.000 mm
  • Type of connection cable - Finely stranded, solid
  • Weight - 1.860 kg
  • Width - 70.000 mm
145755
145755
R. STAHL Contactor
High availability: Reliable motor contactors: 4 kW/400 V

3 main contacts, up to 4 auxiliary contacts

Robust: Anti-vibration components in the corrosion-resistant enclosure

Ambient Conditions

  • Ambient temperature - -20 °C ... +40 °C
  • Ambient temperature max. - +40 °C
  • Ambient temperature min. - -20 °C

Electrical Data

  • Auxiliary contacts - 1 (1 NC)
  • Conventional thermal current - 20.00 A
  • Main contacts - 3-pole (3 NOs)
  • Switching capacity - 4 kW / 400 V AC3

Explosion Protection

  • Application range (zones) - 1, 2
  • ATEX firedamp certificate - DMT 00 ATEX E 073 U
  • ATEX gas certificate - DMT 00 ATEX E 073 U
  • Certificates - ATEX (BVS), Brazil (ULB), Canada (FM), IECEx (BVS), USA (FM)
  • Firedamp protection ATEX - I M2 Ex de I
  • Firedamp protection IECEx - Ex de I
  • Gas explosion protection ATEX - II 2 G Ex de IIC
  • Gas explosion protection IECEx - Ex de IIC
  • IECEx firedamp certificate - IECEx BVS 07.0029U
  • IECEX gas certificate - IECEx BVS 07.0029U

General

  • Functional Description - R. STAHL Series 8510/122 contactors are robust, type-tested standard components for switching motors in accordance with AC3. They have 3 main contacts which can be supplemented by a maximum of 4 auxiliary contacts. Easily accessible terminals make installation simple and safe. The enclosure for the anti-vibration screw connection is made of corrosion-resistant material.
  • Highlights - High availability: Reliable motor contactors: 4 kW/400 V 3 main contacts, up to 4 auxiliary contacts Robust: Anti-vibration components in the corrosion-resistant enclosure
  • Product Description - Contactor
  • Product Type - 8510/122-03-132-..0
  • Title Product Variant Technical Data - 8510/122-03-132-..0 Contac.4kW/400V+1NC
  • WebCode - 8510B

Mechanical Data

  • Connection cross-section of auxiliary contact finely stranded max. - 1.50 mm²
  • Connection cross-section of auxiliary contact min. - 0.75 mm²
  • Connection cross-section of auxiliary contact solid max. - 2.50 mm²
  • Connection terminals finely-stranded max. - 6.00 mm²
  • Connection terminals min. - 1.50 mm²
  • Connection terminals solid max. - 10.00 mm²
  • Degree of protection (IP) - IP20
  • Depth - 168.000 mm
  • Enclosure material - Epoxy resin
  • Height - 130.000 mm
  • Type of connection cable - Finely stranded, solid
  • Weight - 1.860 kg
  • Width - 70.000 mm
145868
145868
R. STAHL Contactor
High availability: Reliable motor contactors: 4 kW/400 V

3 main contacts, up to 4 auxiliary contacts

Robust: Anti-vibration components in the corrosion-resistant enclosure

Ambient Conditions

  • Ambient temperature - -20 °C ... +40 °C
  • Ambient temperature max. - +40 °C
  • Ambient temperature min. - -20 °C

Electrical Data

  • Conventional thermal current - 20.00 A
  • Main contacts - 3-pole (3 NOs)
  • Switching capacity - 4 kW / 400 V AC3

Explosion Protection

  • Application range (zones) - 1, 2
  • ATEX firedamp certificate - DMT 00 ATEX E 073 U
  • ATEX gas certificate - DMT 00 ATEX E 073 U
  • Certificates - ATEX (BVS), Brazil (ULB), Canada (FM), IECEx (BVS), USA (FM)
  • Firedamp protection ATEX - I M2 Ex de I
  • Firedamp protection IECEx - Ex de I
  • Gas explosion protection ATEX - II 2 G Ex de IIC
  • Gas explosion protection IECEx - Ex de IIC
  • IECEx firedamp certificate - IECEx BVS 07.0029U
  • IECEX gas certificate - IECEx BVS 07.0029U

General

  • Functional Description - R. STAHL Series 8510/122 contactors are robust, type-tested standard components for switching motors in accordance with AC3. They have 3 main contacts which can be supplemented by a maximum of 4 auxiliary contacts. Easily accessible terminals make installation simple and safe. The enclosure for the anti-vibration screw connection is made of corrosion-resistant material.
  • Highlights - High availability: Reliable motor contactors: 4 kW/400 V 3 main contacts, up to 4 auxiliary contacts Robust: Anti-vibration components in the corrosion-resistant enclosure
  • Product Description - Contactor
  • Product Type - 8510/122-03-13.-..0
  • Title Product Variant Technical Data - 8510/122-03-13.-..0 SCH 4kW/400V Contact
  • WebCode - 8510B

Mechanical Data

  • Connection cross-section of auxiliary contact finely stranded max. - 1.50 mm²
  • Connection cross-section of auxiliary contact min. - 0.75 mm²
  • Connection cross-section of auxiliary contact solid max. - 2.50 mm²
  • Connection terminals finely-stranded max. - 6.00 mm²
  • Connection terminals min. - 1.50 mm²
  • Connection terminals solid max. - 10.00 mm²
  • Degree of protection (IP) - IP20
  • Depth - 168.000 mm
  • Enclosure material - Epoxy resin
  • Height - 130.000 mm
  • Type of connection cable - Finely stranded, solid
  • Weight - 1.860 kg
  • Width - 70.000 mm
215790
215790
R. STAHL Contactor
High availability: Reliable motor contactors: 4 kW/400 V

3 main contacts, up to 4 auxiliary contacts

Robust: Anti-vibration components in the corrosion-resistant enclosure

Ambient Conditions

  • Ambient temperature - -20 °C ... +40 °C
  • Ambient temperature max. - +40 °C
  • Ambient temperature min. - -20 °C

Electrical Data

  • Auxiliary contacts - 2 (1 NO + 1 NC)
  • Conventional thermal current - 20.00 A
  • Main contacts - 3-pole (3 NOs)
  • Rated actuating voltage - 230 / 240 V AC
  • Switching capacity - 4 kW / 400 V AC3

Explosion Protection

  • Application range (zones) - 1, 2
  • ATEX firedamp certificate - DMT 00 ATEX E 073 U
  • ATEX gas certificate - DMT 00 ATEX E 073 U
  • Certificates - ATEX (BVS), Brazil (ULB), Canada (FM), IECEx (BVS), USA (FM)
  • Firedamp protection ATEX - I M2 Ex de I
  • Firedamp protection IECEx - Ex de I
  • Gas explosion protection ATEX - II 2 G Ex de IIC
  • Gas explosion protection IECEx - Ex de IIC
  • IECEx firedamp certificate - IECEx BVS 07.0029U
  • IECEX gas certificate - IECEx BVS 07.0029U

General

  • Functional Description - R. STAHL Series 8510/122 contactors are robust, type-tested standard components for switching motors in accordance with AC3. They have 3 main contacts which can be supplemented by a maximum of 4 auxiliary contacts. Easily accessible terminals make installation simple and safe. The enclosure for the anti-vibration screw connection is made of corrosion-resistant material.
  • Highlights - High availability: Reliable motor contactors: 4 kW/400 V 3 main contacts, up to 4 auxiliary contacts Robust: Anti-vibration components in the corrosion-resistant enclosure
  • Product Description - Contactor
  • Product Type - 8510/122-03-135-070
  • Title Product Variant Technical Data - 8510/122-03-135-070 230/240V AC 1NO+1NC
  • WebCode - 8510B

Mechanical Data

  • Connection cross-section of auxiliary contact finely stranded max. - 1.50 mm²
  • Connection cross-section of auxiliary contact min. - 0.75 mm²
  • Connection cross-section of auxiliary contact solid max. - 2.50 mm²
  • Connection terminals finely-stranded max. - 6.00 mm²
  • Connection terminals min. - 1.50 mm²
  • Connection terminals solid max. - 10.00 mm²
  • Degree of protection (IP) - IP20
  • Depth - 168.000 mm
  • Enclosure material - Epoxy resin
  • Height - 130.000 mm
  • Type of connection cable - Finely stranded, solid
  • Weight - 1.620 kg
  • Width - 70.000 mm
215803
215803
R. STAHL Contactor
High availability: Reliable motor contactors: 4 kW/400 V

3 main contacts, up to 4 auxiliary contacts

Robust: Anti-vibration components in the corrosion-resistant enclosure

Ambient Conditions

  • Ambient temperature - -20 °C ... +40 °C
  • Ambient temperature max. - +40 °C
  • Ambient temperature min. - -20 °C

Electrical Data

  • Auxiliary contacts - 4 (2 NO + 2 NC)
  • Conventional thermal current - 20.00 A
  • Main contacts - 3-pole (3 NOs)
  • Rated actuating voltage - 230 / 240 V AC
  • Switching capacity - 4 kW / 400 V AC3

Explosion Protection

  • Application range (zones) - 1, 2
  • ATEX firedamp certificate - DMT 00 ATEX E 073 U
  • ATEX gas certificate - DMT 00 ATEX E 073 U
  • Certificates - ATEX (BVS), Brazil (ULB), Canada (FM), IECEx (BVS), USA (FM)
  • Firedamp protection ATEX - I M2 Ex de I
  • Firedamp protection IECEx - Ex de I
  • Gas explosion protection ATEX - II 2 G Ex de IIC
  • Gas explosion protection IECEx - Ex de IIC
  • IECEx firedamp certificate - IECEx BVS 07.0029U
  • IECEX gas certificate - IECEx BVS 07.0029U

General

  • Functional Description - R. STAHL Series 8510/122 contactors are robust, type-tested standard components for switching motors in accordance with AC3. They have 3 main contacts which can be supplemented by a maximum of 4 auxiliary contacts. Easily accessible terminals make installation simple and safe. The enclosure for the anti-vibration screw connection is made of corrosion-resistant material.
  • Highlights - High availability: Reliable motor contactors: 4 kW/400 V 3 main contacts, up to 4 auxiliary contacts Robust: Anti-vibration components in the corrosion-resistant enclosure
  • Product Description - Contactor
  • Product Type - 8510/122-03-136-070
  • Title Product Variant Technical Data - 8510/122-03-136-070 230/240V AC 2NO+2NC
  • WebCode - 8510B

Mechanical Data

  • Connection cross-section of auxiliary contact finely stranded max. - 1.50 mm²
  • Connection cross-section of auxiliary contact min. - 0.75 mm²
  • Connection cross-section of auxiliary contact solid max. - 2.50 mm²
  • Connection terminals finely-stranded max. - 6.00 mm²
  • Connection terminals min. - 1.50 mm²
  • Connection terminals solid max. - 10.00 mm²
  • Degree of protection (IP) - IP20
  • Depth - 168.000 mm
  • Enclosure material - Epoxy resin
  • Height - 130.000 mm
  • Type of connection cable - Finely stranded, solid
  • Weight - 1.620 kg
  • Width - 70.000 mm
215805
215805
R. STAHL Contactor
High availability: Reliable motor contactors: 4 kW/400 V

3 main contacts, up to 4 auxiliary contacts

Robust: Anti-vibration components in the corrosion-resistant enclosure

Ambient Conditions

  • Ambient temperature - -20 °C ... +40 °C
  • Ambient temperature max. - +40 °C
  • Ambient temperature min. - -20 °C

Electrical Data

  • Auxiliary contacts - 4 (2 NO + 2 NC)
  • Conventional thermal current - 20.00 A
  • Main contacts - 3-pole (3 NOs)
  • Rated actuating voltage - 24 V DC
  • Switching capacity - 4 kW / 400 V AC3

Explosion Protection

  • Application range (zones) - 1, 2
  • ATEX firedamp certificate - DMT 00 ATEX E 073 U
  • ATEX gas certificate - DMT 00 ATEX E 073 U
  • Certificates - ATEX (BVS), Brazil (ULB), Canada (FM), IECEx (BVS), USA (FM)
  • Firedamp protection ATEX - I M2 Ex de I
  • Firedamp protection IECEx - Ex de I
  • Gas explosion protection ATEX - II 2 G Ex de IIC
  • Gas explosion protection IECEx - Ex de IIC
  • IECEx firedamp certificate - IECEx BVS 07.0029U
  • IECEX gas certificate - IECEx BVS 07.0029U

General

  • Functional Description - R. STAHL Series 8510/122 contactors are robust, type-tested standard components for switching motors in accordance with AC3. They have 3 main contacts which can be supplemented by a maximum of 4 auxiliary contacts. Easily accessible terminals make installation simple and safe. The enclosure for the anti-vibration screw connection is made of corrosion-resistant material.
  • Highlights - High availability: Reliable motor contactors: 4 kW/400 V 3 main contacts, up to 4 auxiliary contacts Robust: Anti-vibration components in the corrosion-resistant enclosure
  • Product Description - Contactor
  • Product Type - 8510/122-03-136-210
  • Title Product Variant Technical Data - 8510/122-03-136-210 4KW 24V DC 2NO+2NC
  • WebCode - 8510B

Mechanical Data

  • Connection cross-section of auxiliary contact finely stranded max. - 1.50 mm²
  • Connection cross-section of auxiliary contact min. - 0.75 mm²
  • Connection cross-section of auxiliary contact solid max. - 2.50 mm²
  • Connection terminals finely-stranded max. - 6.00 mm²
  • Connection terminals min. - 1.50 mm²
  • Connection terminals solid max. - 10.00 mm²
  • Degree of protection (IP) - IP20
  • Depth - 168.000 mm
  • Enclosure material - Epoxy resin
  • Height - 130.000 mm
  • Type of connection cable - Finely stranded, solid
  • Weight - 1.620 kg
  • Width - 70.000 mm
215810
215810
R. STAHL Contactor
High availability: Reliable motor contactors: 4 kW/400 V

3 main contacts, up to 4 auxiliary contacts

Robust: Anti-vibration components in the corrosion-resistant enclosure

Ambient Conditions

  • Ambient temperature - -20 °C ... +40 °C
  • Ambient temperature max. - +40 °C
  • Ambient temperature min. - -20 °C

Electrical Data

  • Auxiliary contacts - 4 (3 NO + 1 NC)
  • Conventional thermal current - 20.00 A
  • Main contacts - 3-pole (3 NOs)
  • Rated actuating voltage - 220 / 230 V AC
  • Switching capacity - 4 kW / 400 V AC3

Explosion Protection

  • Application range (zones) - 1, 2
  • ATEX firedamp certificate - DMT 00 ATEX E 073 U
  • ATEX gas certificate - DMT 00 ATEX E 073 U
  • Certificates - ATEX (BVS), Brazil (ULB), Canada (FM), IECEx (BVS), USA (FM)
  • Firedamp protection ATEX - I M2 Ex de I
  • Firedamp protection IECEx - Ex de I
  • Gas explosion protection ATEX - II 2 G Ex de IIC
  • Gas explosion protection IECEx - Ex de IIC
  • IECEx firedamp certificate - IECEx BVS 07.0029U
  • IECEX gas certificate - IECEx BVS 07.0029U

General

  • Functional Description - R. STAHL Series 8510/122 contactors are robust, type-tested standard components for switching motors in accordance with AC3. They have 3 main contacts which can be supplemented by a maximum of 4 auxiliary contacts. Easily accessible terminals make installation simple and safe. The enclosure for the anti-vibration screw connection is made of corrosion-resistant material.
  • Highlights - High availability: Reliable motor contactors: 4 kW/400 V 3 main contacts, up to 4 auxiliary contacts Robust: Anti-vibration components in the corrosion-resistant enclosure
  • Product Description - Contactor
  • Product Type - 8510/122-03-133-040
  • Title Product Variant Technical Data - 8510/122-03-133-040 220/230V AC 3NO+1NC
  • WebCode - 8510B

Mechanical Data

  • Connection cross-section of auxiliary contact finely stranded max. - 1.50 mm²
  • Connection cross-section of auxiliary contact min. - 0.75 mm²
  • Connection cross-section of auxiliary contact solid max. - 2.50 mm²
  • Connection terminals finely-stranded max. - 6.00 mm²
  • Connection terminals min. - 1.50 mm²
  • Connection terminals solid max. - 10.00 mm²
  • Degree of protection (IP) - IP20
  • Depth - 168.000 mm
  • Enclosure material - Epoxy resin
  • Height - 130.000 mm
  • Type of connection cable - Finely stranded, solid
  • Weight - 1.620 kg
  • Width - 70.000 mm
215811
215811
R. STAHL Contactor
High availability: Reliable motor contactors: 4 kW/400 V

3 main contacts, up to 4 auxiliary contacts

Robust: Anti-vibration components in the corrosion-resistant enclosure

Ambient Conditions

  • Ambient temperature - -20 °C ... +40 °C
  • Ambient temperature max. - +40 °C
  • Ambient temperature min. - -20 °C

Electrical Data

  • Auxiliary contacts - 4 (2 NO + 2 NC)
  • Conventional thermal current - 20.00 A
  • Main contacts - 3-pole (3 NOs)
  • Rated actuating voltage - 110 V AC
  • Switching capacity - 4 kW / 400 V AC3

Explosion Protection

  • Application range (zones) - 1, 2
  • ATEX firedamp certificate - DMT 00 ATEX E 073 U
  • ATEX gas certificate - DMT 00 ATEX E 073 U
  • Certificates - ATEX (BVS), Brazil (ULB), Canada (FM), IECEx (BVS), USA (FM)
  • Firedamp protection ATEX - I M2 Ex de I
  • Firedamp protection IECEx - Ex de I
  • Gas explosion protection ATEX - II 2 G Ex de IIC
  • Gas explosion protection IECEx - Ex de IIC
  • IECEx firedamp certificate - IECEx BVS 07.0029U
  • IECEX gas certificate - IECEx BVS 07.0029U

General

  • Functional Description - R. STAHL Series 8510/122 contactors are robust, type-tested standard components for switching motors in accordance with AC3. They have 3 main contacts which can be supplemented by a maximum of 4 auxiliary contacts. Easily accessible terminals make installation simple and safe. The enclosure for the anti-vibration screw connection is made of corrosion-resistant material.
  • Highlights - High availability: Reliable motor contactors: 4 kW/400 V 3 main contacts, up to 4 auxiliary contacts Robust: Anti-vibration components in the corrosion-resistant enclosure
  • Product Description - Contactor
  • Product Type - 8510/122-03-136-030
  • Title Product Variant Technical Data - 8510/122-03-136-030 4KW 110V AC 2NO+2NC
  • WebCode - 8510B

Mechanical Data

  • Connection cross-section of auxiliary contact finely stranded max. - 1.50 mm²
  • Connection cross-section of auxiliary contact min. - 0.75 mm²
  • Connection cross-section of auxiliary contact solid max. - 2.50 mm²
  • Connection terminals finely-stranded max. - 6.00 mm²
  • Connection terminals min. - 1.50 mm²
  • Connection terminals solid max. - 10.00 mm²
  • Degree of protection (IP) - IP20
  • Depth - 168.000 mm
  • Enclosure material - Epoxy resin
  • Height - 130.000 mm
  • Type of connection cable - Finely stranded, solid
  • Weight - 1.620 kg
  • Width - 70.000 mm
215813
215813
R. STAHL Contactor
High availability: Reliable motor contactors: 4 kW/400 V

3 main contacts, up to 4 auxiliary contacts

Robust: Anti-vibration components in the corrosion-resistant enclosure

Ambient Conditions

  • Ambient temperature - -20 °C ... +40 °C
  • Ambient temperature max. - +40 °C
  • Ambient temperature min. - -20 °C

Electrical Data

  • Auxiliary contacts - 4 (4 NO)
  • Conventional thermal current - 20.00 A
  • Main contacts - 3-pole (3 NOs)
  • Rated actuating voltage - 230 / 240 V AC
  • Switching capacity - 4 kW / 400 V AC3

Explosion Protection

  • Application range (zones) - 1, 2
  • ATEX firedamp certificate - DMT 00 ATEX E 073 U
  • ATEX gas certificate - DMT 00 ATEX E 073 U
  • Certificates - ATEX (BVS), Canada (FM), USA (FM)
  • Firedamp protection ATEX - I M2 Ex de I
  • Firedamp protection IECEx - Ex de I
  • Gas explosion protection ATEX - II 2 G Ex de IIC
  • Gas explosion protection IECEx - Ex de IIC
  • IECEx firedamp certificate - IECEx BVS 07.0029U
  • IECEX gas certificate - IECEx BVS 07.0029U

General

  • Functional Description - R. STAHL Series 8510/122 contactors are robust, type-tested standard components for switching motors in accordance with AC3. They have 3 main contacts which can be supplemented by a maximum of 4 auxiliary contacts. Easily accessible terminals make installation simple and safe. The enclosure for the anti-vibration screw connection is made of corrosion-resistant material.
  • Highlights - High availability: Reliable motor contactors: 4 kW/400 V 3 main contacts, up to 4 auxiliary contacts Robust: Anti-vibration components in the corrosion-resistant enclosure
  • Product Description - Contactor
  • Product Type - 8510/122-03-134-070
  • Title Product Variant Technical Data - 8510/122-03-134-070 230/240V AC + 4NO
  • WebCode - 8510B

Mechanical Data

  • Connection cross-section of auxiliary contact finely stranded max. - 1.50 mm²
  • Connection cross-section of auxiliary contact min. - 0.75 mm²
  • Connection cross-section of auxiliary contact solid max. - 2.50 mm²
  • Connection terminals finely-stranded max. - 6.00 mm²
  • Connection terminals min. - 1.50 mm²
  • Connection terminals solid max. - 10.00 mm²
  • Degree of protection (IP) - IP20
  • Depth - 168.000 mm
  • Enclosure material - Epoxy resin
  • Height - 130.000 mm
  • Type of connection cable - Finely stranded, solid
  • Weight - 1.620 kg
  • Width - 70.000 mm
215827
215827
R. STAHL Contactor
High availability: Reliable motor contactors: 4 kW/400 V

3 main contacts, up to 4 auxiliary contacts

Robust: Anti-vibration components in the corrosion-resistant enclosure

Ambient Conditions

  • Ambient temperature - -20 °C ... +40 °C
  • Ambient temperature max. - +40 °C
  • Ambient temperature min. - -20 °C

Electrical Data

  • Auxiliary contacts - 4 (2 NO + 2 NC)
  • Conventional thermal current - 20.00 A
  • Main contacts - 3-pole (3 NOs)
  • Rated actuating voltage - 24 V AC
  • Switching capacity - 4 kW / 400 V AC3

Explosion Protection

  • Application range (zones) - 1, 2
  • ATEX firedamp certificate - DMT 00 ATEX E 073 U
  • ATEX gas certificate - DMT 00 ATEX E 073 U
  • Certificates - ATEX (BVS), Brazil (ULB), Canada (FM), IECEx (BVS), USA (FM)
  • Firedamp protection ATEX - I M2 Ex de I
  • Firedamp protection IECEx - Ex de I
  • Gas explosion protection ATEX - II 2 G Ex de IIC
  • Gas explosion protection IECEx - Ex de IIC
  • IECEx firedamp certificate - IECEx BVS 07.0029U
  • IECEX gas certificate - IECEx BVS 07.0029U

General

  • Functional Description - R. STAHL Series 8510/122 contactors are robust, type-tested standard components for switching motors in accordance with AC3. They have 3 main contacts which can be supplemented by a maximum of 4 auxiliary contacts. Easily accessible terminals make installation simple and safe. The enclosure for the anti-vibration screw connection is made of corrosion-resistant material.
  • Highlights - High availability: Reliable motor contactors: 4 kW/400 V 3 main contacts, up to 4 auxiliary contacts Robust: Anti-vibration components in the corrosion-resistant enclosure
  • Product Description - Contactor
  • Product Type - 8510/122-03-136-010
  • Title Product Variant Technical Data - 8510/122-03-136-010 4KW 24V AC + 2NO+2NC
  • WebCode - 8510B

Mechanical Data

  • Connection cross-section of auxiliary contact finely stranded max. - 1.50 mm²
  • Connection cross-section of auxiliary contact min. - 0.75 mm²
  • Connection cross-section of auxiliary contact solid max. - 2.50 mm²
  • Connection terminals finely-stranded max. - 6.00 mm²
  • Connection terminals min. - 1.50 mm²
  • Connection terminals solid max. - 10.00 mm²
  • Degree of protection (IP) - IP20
  • Depth - 168.000 mm
  • Enclosure material - Epoxy resin
  • Height - 130.000 mm
  • Type of connection cable - Finely stranded, solid
  • Weight - 1.620 kg
  • Width - 70.000 mm
215830
215830
R. STAHL Contactor
High availability: Reliable motor contactors: 4 kW/400 V

3 main contacts, up to 4 auxiliary contacts

Robust: Anti-vibration components in the corrosion-resistant enclosure

Ambient Conditions

  • Ambient temperature - -20 °C ... +40 °C
  • Ambient temperature max. - +40 °C
  • Ambient temperature min. - -20 °C

Electrical Data

  • Auxiliary contacts - 1 (1 NO)
  • Conventional thermal current - 20.00 A
  • Main contacts - 3-pole (3 NOs)
  • Rated actuating voltage - 220 / 230 V AC
  • Switching capacity - 4 kW / 400 V AC3

Explosion Protection

  • Application range (zones) - 1, 2
  • ATEX firedamp certificate - DMT 00 ATEX E 073 U
  • ATEX gas certificate - DMT 00 ATEX E 073 U
  • Certificates - ATEX (BVS), Brazil (ULB), Canada (FM), IECEx (BVS), USA (FM)
  • Firedamp protection ATEX - I M2 Ex de I
  • Firedamp protection IECEx - Ex de I
  • Gas explosion protection ATEX - II 2 G Ex de IIC
  • Gas explosion protection IECEx - Ex de IIC
  • IECEx firedamp certificate - IECEx BVS 07.0029U
  • IECEX gas certificate - IECEx BVS 07.0029U

General

  • Functional Description - R. STAHL Series 8510/122 contactors are robust, type-tested standard components for switching motors in accordance with AC3. They have 3 main contacts which can be supplemented by a maximum of 4 auxiliary contacts. Easily accessible terminals make installation simple and safe. The enclosure for the anti-vibration screw connection is made of corrosion-resistant material.
  • Highlights - High availability: Reliable motor contactors: 4 kW/400 V 3 main contacts, up to 4 auxiliary contacts Robust: Anti-vibration components in the corrosion-resistant enclosure
  • Product Description - Contactor
  • Product Type - 8510/122-03-131-040
  • Title Product Variant Technical Data - 8510/122-03-131-040 4KW 220/230V AC 1NO
  • WebCode - 8510B

Mechanical Data

  • Connection cross-section of auxiliary contact finely stranded max. - 1.50 mm²
  • Connection cross-section of auxiliary contact min. - 0.75 mm²
  • Connection cross-section of auxiliary contact solid max. - 2.50 mm²
  • Connection terminals finely-stranded max. - 6.00 mm²
  • Connection terminals min. - 1.50 mm²
  • Connection terminals solid max. - 10.00 mm²
  • Degree of protection (IP) - IP20
  • Depth - 168.000 mm
  • Enclosure material - Epoxy resin
  • Height - 130.000 mm
  • Type of connection cable - Finely stranded, solid
  • Weight - 1.620 kg
  • Width - 70.000 mm
215831
215831
R. STAHL Contactor
High availability: Reliable motor contactors: 4 kW/400 V

3 main contacts, up to 4 auxiliary contacts

Robust: Anti-vibration components in the corrosion-resistant enclosure

Ambient Conditions

  • Ambient temperature - -20 °C ... +40 °C
  • Ambient temperature max. - +40 °C
  • Ambient temperature min. - -20 °C

Electrical Data

  • Auxiliary contacts - 1 (1 NO)
  • Conventional thermal current - 20.00 A
  • Main contacts - 3-pole (3 NOs)
  • Rated actuating voltage - 24 V DC
  • Switching capacity - 4 kW / 400 V AC3

Explosion Protection

  • Application range (zones) - 1, 2
  • ATEX firedamp certificate - DMT 00 ATEX E 073 U
  • ATEX gas certificate - DMT 00 ATEX E 073 U
  • Certificates - ATEX (BVS), Brazil (ULB), Canada (FM), IECEx (BVS), USA (FM)
  • Firedamp protection ATEX - I M2 Ex de I
  • Firedamp protection IECEx - Ex de I
  • Gas explosion protection ATEX - II 2 G Ex de IIC
  • Gas explosion protection IECEx - Ex de IIC
  • IECEx firedamp certificate - IECEx BVS 07.0029U
  • IECEX gas certificate - IECEx BVS 07.0029U

General

  • Functional Description - R. STAHL Series 8510/122 contactors are robust, type-tested standard components for switching motors in accordance with AC3. They have 3 main contacts which can be supplemented by a maximum of 4 auxiliary contacts. Easily accessible terminals make installation simple and safe. The enclosure for the anti-vibration screw connection is made of corrosion-resistant material.
  • Highlights - High availability: Reliable motor contactors: 4 kW/400 V 3 main contacts, up to 4 auxiliary contacts Robust: Anti-vibration components in the corrosion-resistant enclosure
  • Product Description - Contactor
  • Product Type - 8510/122-03-131-210
  • Title Product Variant Technical Data - 8510/122-03-131-210 4KW 24V DC + 1NO
  • WebCode - 8510B

Mechanical Data

  • Connection cross-section of auxiliary contact finely stranded max. - 1.50 mm²
  • Connection cross-section of auxiliary contact min. - 0.75 mm²
  • Connection cross-section of auxiliary contact solid max. - 2.50 mm²
  • Connection terminals finely-stranded max. - 6.00 mm²
  • Connection terminals min. - 1.50 mm²
  • Connection terminals solid max. - 10.00 mm²
  • Degree of protection (IP) - IP20
  • Depth - 168.000 mm
  • Enclosure material - Epoxy resin
  • Height - 130.000 mm
  • Type of connection cable - Finely stranded, solid
  • Weight - 1.620 kg
  • Width - 70.000 mm
1 - 12 of 22 Part Numbers
Instantly populate your store or catalogĀ
CREATE YOUR SITE
or book a demo with the Yodify Team
show more
