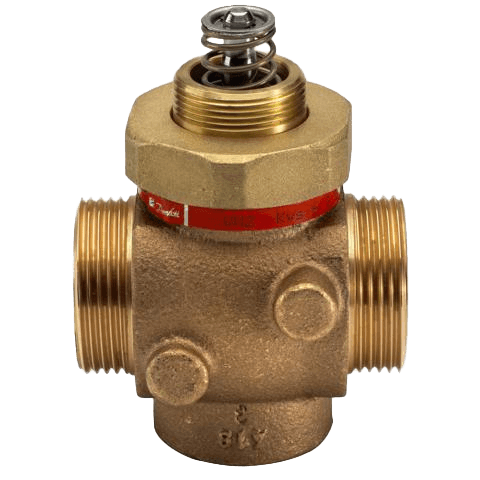

VM 2 2-Way Pressure Balanced Valve
Brand: Danfoss
VM 2 is a two-way valve designed to work with Danfoss electric actuators AMV(E) 10, AMV(E) 20, AMV(E) 30 or Danfoss electric actuators with spring return function AMV(E) 13, AMV(E) 23 and AMV(E) 33.
These VM 2 valves are generally recommended for use in most demanding conditions in systems such as:
- district heating
- heating
- hot water service with heat exchanger or storage tank where they ensure long and unproblematic performance
- SPLIT characteristic developed for most demanding applications
- High closing Δp with small sized actuators
- Several Kvs values
- Push connection for easy mechanical connection with actuator
- Control range minimum 50:1
1 - 12 of 16 Part Numbers
065B20
- Nominal Diameter - DN 15
- Flow Rate - 4 m³/hour
065B2010
- Nominal Diameter - DN 15
- Connection - G 3/4" A
- Flow Rate - 0.25 m³/hour
065B2011
- Nominal Diameter - DN 15
- Connection - G 3/4" A
- Flow Rate - 0.4 m³/hour
065B2012
- Nominal Diameter - DN 15
- Connection - G 3/4" A
- Flow Rate - 0.63 m³/hour
065B2013
- Nominal Diameter - DN 15
- Connection - G 3/4" A
- Flow Rate - 1 m³/hour
065B2014
- Nominal Diameter - DN 15
- Connection - G 3/4" A
- Flow Rate - 1.6 m³/hour
065B2015
- Nominal Diameter - DN 15
- Connection - G 3/4" A
- Flow Rate - 2.5 m³/hour
065B2016
- Nominal Diameter - DN 20
- Connection - G 1" A
- Flow Rate - 4 m³/hour
065B2017
- Nominal Diameter - DN 25
- Connection - G1-1/4" A
- Flow Rate - 6.3 m³/hour
065B2018
- Nominal Diameter - DN 32
- Connection - G1-1/2" A
- Flow Rate - 10 m³/hour
065B2019
- Nominal Diameter - DN 40
- Connection - G 2" A
- Flow Rate - 16 m³/hour
065B2020
- Nominal Diameter - DN 50
- Connection - G 2-1/2" A
- Flow Rate - 25 m³/hour
1 - 12 of 16 Part Numbers
Specifications
Brand
Applications
- Use in District Heating Systems
- Use in Hot Water Service with Heat Exchanger
Approvals & Certifications
- EN 1092-2- Flange Connection
- EN-GJS-400-18-LT (GGG-40.3) - Ductile Iron
BSP Connection
- G 1" A Male
- G 1-1/2" A Male
- G 1-1/4" A Male
- G 1-3/4" A Male
- G 2" A Male
- G 2-1/2" A Male
- G 3/4" A Male
Cone Material
- Valve Cone: Stainless Steel
Control Functions Characteristics
- Split Characteristics
Enclosure, Body Material
- Red Bronze (Rg 5)
Flow Rate
- 0.25 to 25 m³/hour (Kvs)
Materials of Construction
- Valve Cone: Stainless Steel
Measuring Range
- Medium PH: 7 to 10
Media
- Circulation Water, Glycolic Water up to 30 %
Nominal Pressure
- psi: 362.6 (bar: 25, kPa: 2,500)
O-Ring Material
- EPDM
Process Temperature
- 2° to 150° C (35.6° to 302° F)
Seat / Seal Material
- Seat: Stainless Steel
Stem Material
- Stainless Steel
