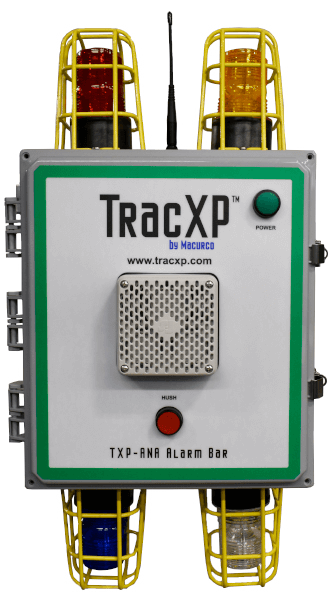

TXP-ANA Alarm Notification Appliance
Brand: AerionicsThe TracXP-ANA: Alarm Notification Assembly is a flexible, cost-effective alarm status annunciation for general purpose applications.
The TXP-ANA offers optional strobe light configurations of one to four strobes, standard 99 dB or optional 120 dB horn, optional configurable Hush/Silence, and optional wireless functionality with the TXP Wireless System.
Features- Modular Design
- Up to four strobe alarm indicators
- NEMA 4X/IP66 Enclosure
- Power indicator light
- 99 dB horn with configurable alarm sequences - Optional 120 dB horn
- Alarm Hush button - Optional
- 900 MHz Radios - Optional
- 24 VDC Power Supply: Wireless version
Specifications
Brand
Size
- 13" (L) x 26.5" (W) x 9.25" (H) Enclosure
- 28" (L) x 26.5" (W) x 9.25" (H) with (4) strobes and 99 dB horn
- 28" (L) x 26.5" (W) x 13.5" (H) with (4) strobes and 120 dB horn
Weight
- 17.6 lb with (4) strobes, wireless, and 99 dB Horn
- 18.2 lb with (4) strobes, wireless, and 120 dB Horn
Power Supply
- 85-264 Vac input, 24 Vdc output, 70 W (3A) (Wireless option only)
Input Power
- 10-30 Vdc, 3 watts Max. (non-Wireless)
- 85-264 Vac (wireless)
Strobe
- Flash rate - 60 to 80 flashes per minute
- Light output - 50 effective candlepower
- Lamp type - Xenon
- Lamp life - 10,000 hour
Wireless Option
- Wireless Input - 900 MHz
- Wireless Output - Frequency-Hopping
- Spread Spectrum (FHSS)
- Four Alarm Relays
- Independent Horn Relay
Temperature
- -40° to +140° F (-40° to +60° C)
Environmental Rating
- NEMA 4X/IP66
Warranty
- 2-year on enclosure and electronics
- 1-year on Xenon strobe lamp
- 10-year on strobe power supply
- Oil & Gas: Upstream, Mid-stream, Downstream
- Refining & chemical production
- Water / waste water treatment plants
- Food & beverage facilities
- Metal manufacturing
- Pulp & paper
- Power generation
