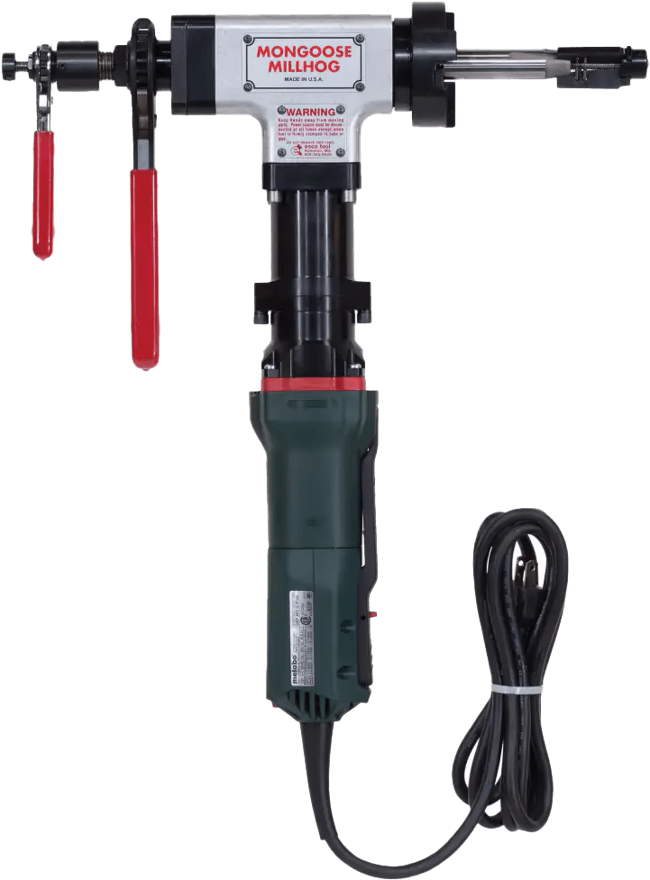

Mongoose MILLHOG
Brand: Esco Tool
The Mongoose MILLHOG is a torque free beveling machine for tube and pipe from 0.625” (15.9mm) I.D. to 3.0” (76.2 mm) O.D. and is only 2.25” (57.15 mm) wide which makes it ideal for power station boiler tube work and constrained situations with limited access.
Featuring a patented push-pull clamp and release mechanism, it allows the clamps to release from a tube as easily as they tighten.
Ideal for beveling, facing and boring on a wide range of tube and pipe alloys, the Mongoose has dual opposed tapered roller bearing and employ the rigid EscoLock blade locking system; which provides chatter-free performance and produces a thick chip without cutting fluids.
Features- Narrow body 2.25" (27.15mm)
- Lightweight and torque-free
- Interchangeable pneumatic, electric and battery motor options
- Patented clamp system, allows the clamps to release from a tube as easily as they tighten
- Permanently attached wrenches
- Bevel, face and bore simultaneously
- Rugged dual-opposed tapered roller bearings support gear drive for non-stop operation
- EscoLock blade holding system reduces vibration and maximizes the number of preps per blade
Specifications
Brand
Working Range
- 0.625” I.D. - 3.0” O.D. (15.9 mm I.D. - 76.2 mm O.D.)
Blade Series
- G-Series Blades
Width
- 2.25” (57.2 mm)
Length
- 15.25” (387.4 mm)
Motor
- Pneumatic
- Electric
- Battery
Cutterhead Speed
- 114 rpm
- 14-58 rpm
- 43 rpm
Working Weight
- 14.8 - 16.4 lbs (6.7 - 7.4 kg)
Shipping Weight
- 32.1 - 40.6 lbs (14.5 - 18.41 kg)
Shipping Dimensions
- 20” x 18” x 5” (508 mm x 457 mm x 127 mm)
- 24” x 20” x 6” (610 mm x 508 mm x 152 mm)
