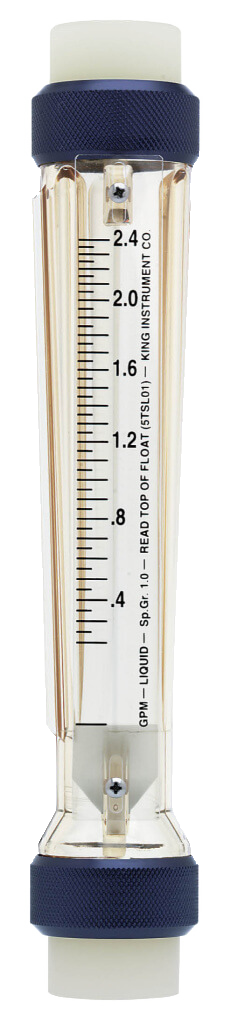

7330 Series Polysulfone Tube Flowmeter
Brand: King Instrument CompanyUnion ends simplify installation and maintenance. With the Teflon® float option these meters are excellent for applications where no metal is preferred. Socket weld end connections are available
Features- Union Ends for Ease of Installation
- Polysulfone Meter with Alarm Options
- 316L SS, Hastelloy®C, or Teflon® Internals
- 127mm Detachable, Direct Reading Scale
- 0.5 – 150 GPM Water
1 - 12 of 592 Part Numbers
7331-3-2-1-0-43W
- Fitting Material - PVC
- Float Material - 316L SS
- O-ring Material - EPR
- Alarm - No Alarm
- Flow Range - 1.5 GPM
7331-3-2-1-0-44W
- Fitting Material - PVC
- Float Material - 316L SS
- O-ring Material - EPR
- Alarm - No Alarm
- Flow Range - 3 GPM
7331-3-2-1-0-53W
- Fitting Material - PVC
- Float Material - 316L SS
- O-ring Material - EPR
- Alarm - No Alarm
- Flow Range - 6 GPM
7331-3-2-1-0-54W
- Fitting Material - PVC
- Float Material - 316L SS
- O-ring Material - EPR
- Alarm - No Alarm
- Flow Range - 10 GPM
7331-3-2-1-0-65W
- Fitting Material - PVC
- Float Material - 316L SS
- O-ring Material - EPR
- Alarm - No Alarm
- Flow Range - 12 GPM
7331-3-2-1-0-66W
- Fitting Material - PVC
- Float Material - 316L SS
- O-ring Material - EPR
- Alarm - No Alarm
- Flow Range - 18 GPM
7331-3-2-1-0-67W
- Fitting Material - PVC
- Float Material - 316L SS
- O-ring Material - EPR
- Alarm - No Alarm
- Flow Range - 25 GPM
7331-3-2-1-0-68W
- Fitting Material - PVC
- Float Material - 316L SS
- O-ring Material - EPR
- Alarm - No Alarm
- Flow Range - 35 GPM
7331-3-2-1-0-95W
- Fitting Material - PVC
- Float Material - 316L SS
- O-ring Material - EPR
- Alarm - No Alarm
- Flow Range - 80 GPM
7331-3-2-1-0-96W
- Fitting Material - PVC
- Float Material - 316L SS
- O-ring Material - EPR
- Alarm - No Alarm
- Flow Range - 100 GPM
7331-3-2-1-0-97W
- Fitting Material - PVC
- Float Material - 316L SS
- O-ring Material - EPR
- Alarm - No Alarm
- Flow Range - 120 GPM
7331-3-2-1-0-98W
- Fitting Material - PVC
- Float Material - 316L SS
- O-ring Material - EPR
- Alarm - No Alarm
- Flow Range - 150 GPM
1 - 12 of 592 Part Numbers
Specifications
Brand
Metering Tube
- Molded polysulfone
Internal Components
- 316L SS
- Teflon®
- Polysulfone
- Hastelloy® C-276
Fitting Material
- Standard: PVC
- Optional: PVDF
Inlet/Outlet Fittings
- FNPT
- Vertical
O-Ring
- Viton®
- Buna N
- EPR
- Kalrez®
Capacities
- Water (PVDF float): 0.5 GPM
- Water (Teflon® float): 1 to 100 GPM
- Water (Metal float): 1.5 to 160 GPM
Scale
- 127 mm (5”) direct reading, detachable
Accuracy
- ± 3% to of full scale flow
- ± 5% of full scale flow (120 & 150 GPM Metal floats)
- ± 6% of full scale flow (Teflon® & PVDF floats)
Turndown
- 10:1
Maximum Temperature
- PVC fittings 130 °F
- PVDF fittings 200 °F
Ambient Temperature
- 33 °F to 125 °F
Maximum Pressure
- PVC fittings: 150 psig
- PVDF fittings: 125 psig
