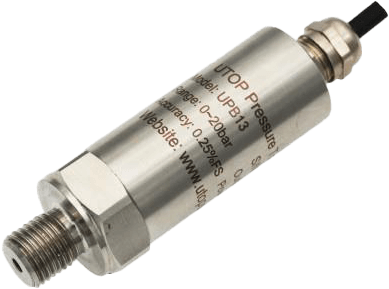

Piezoresistive Pressure Transmitter
Brand: Xi'an UTOP Measurement Instrument Co, Ltd
UPB13 piezoresistive pressure transmitter uses UPX19 piezo-resistive silicon sensor as sensing element.
It adopts the newest DSP digital signal conditioning algorithm circuit, which is featured with high anti-jamming & anti-impact performance, and good non-linearity correction for sensors.
This makes the piezoresistive pressure transmitter have excellent linearity characteristics.
This piezoresistive pressure transmitter is designed with full stainless steel construction, and its installation is very easy. It is a good cost- effective product.
Features- Full digital circuit, good performance
- High cost performance, highly cost-effective
- Wide measuring pressure range: -1...0~0.1...1000 bar
- Strong anti-jamming
Specifications
Pressure Medium
- Gas or Liquid Compatible with Stainless Steel
Pressure Ranges
- -1...0 ~ 0.1...1000 bar
Overload Pressure
- 150 % Full Scale
Output Signal
- 4 ~ 20 mA, 0 ~ 5 V, 0 ~ 10 V, 1 ~ 5 V
Accuracy
- 0.25 % Full Scale, 0.5 % Full Scale
Load Resistance
- RL= (U-9 V)/0.02 A (4~20 mA Current Output), U-Loop Voltage (V)
Supply Voltage
- 9~36 Vdc
Compensated Temperature Range
- -10° ~ +70° C
Operating Temperature Range
- -30° to +100° C
Measured Media Temperature Range
- -40° ~ +125° C
Process Connection
- G1/4” or others
Electrical Connection
- Hirschmann Connectors or others
Material of Wetted Part
- 304 Stainless Steel
Material of Pressure Membrane
- 316L Stainless Steel
Material of Housing
- 304 Stainless Steel
- UPB13 Piezoresistive Pressure Transmitter is widely used for Pressure Measurement and Control of Petroleum, Chemical Industry, Metallurgy, Power Station and Hydrology, etc.
