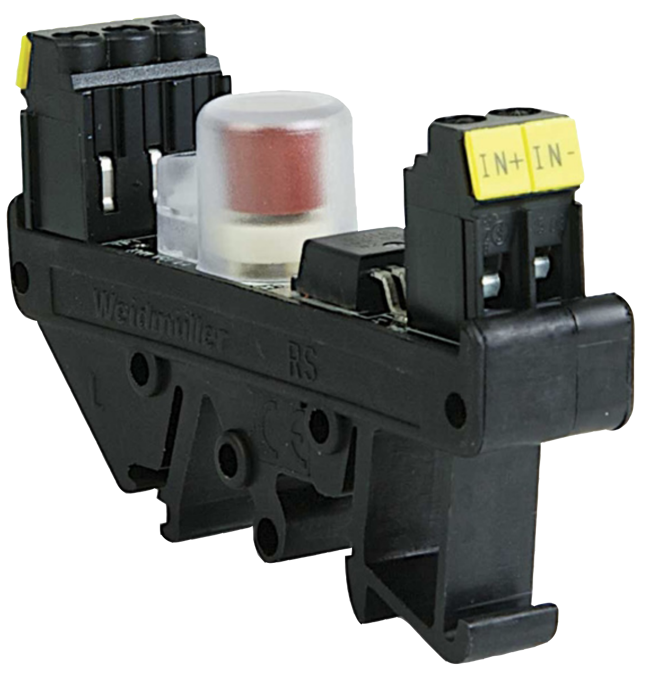

DEPRO-FSMM-24A-5A Solid State Relay.png

DEPRO-FSMM/24A/5A Solid State Relay

Brand: Emphatec
Add Product to My Catalog

This module is the perfect power supply accessory. Solid state switches, in this case a MOSFET, offer faster switching times and longer operating life than mechanical relays.

The onboard fuse eliminates the need for an additional fuse terminal, saving panel space and cost.

The fuse is a TR5 micro style. These are available with ratings up to 5 A continuous and a 50 A interrupting capacity. Each module comes with a 5 A, slow blow fuse installed.

Socket mounting makes replacement quick and easy. When properly sized the occurrence of a fault causes the fuse to fail before the 24 Vdc power supply shuts off (the user may need to select a fuse with a lower rating).

The micro style fuse keeps the module size as small as possible.
Features
  • 24 Vdc at 5 A max.

  • Low power dissipation

  • Compact, just 16.2 mm wide

  • Built in fuse

  • Overcurrent and back-EMF protection

  • cCSAus certified for Class 1 Division 2 applications

    • Specifications

    Brand

    Applications

    • Low Power Consumption

    Approvals & Certifications

    • CSA Class I, Div. 2, Groups A, B, C, D Temperature Code T6, Ex NA IIC, Zone 2, AEx NA IIC

    Circuit Protection

    • Overcurrent Protection: Fuse & Internal Electronic Protection. MOSFET Turns Off if Load Current > 10 A for > 150 ms

    Dissipation

    • Power Dissipation (Fuse+MOSFET): < 2 W

    Electrical Connectors

    • 26 to 12 AWG (0.13 to 4 mm²)

    Indication

    • Indication: LED (Green Indicates Output is Active. Illuminated when the Fuse is Healthy & Current is Flowing to the Load)

    Input

    • 20-30 Vdc
    • 24 Vdc at 3 mA

    Isolation

    • Input-Output Isolation: 1,500 V for 1 Minute

    Output

    • 20-30 Vdc, 5 A, Max.

    Process Temperature

    • -25° to 60° C (-13° to 140° F)

    Response Time

    • Switching Time: 150 µs Nom. Turn-Off
    • Switching Time: 60 µs Nom. Turn-On

    Torque

    • 0.5 to 0.6 Nm

    Documentation

    Data Sheets
