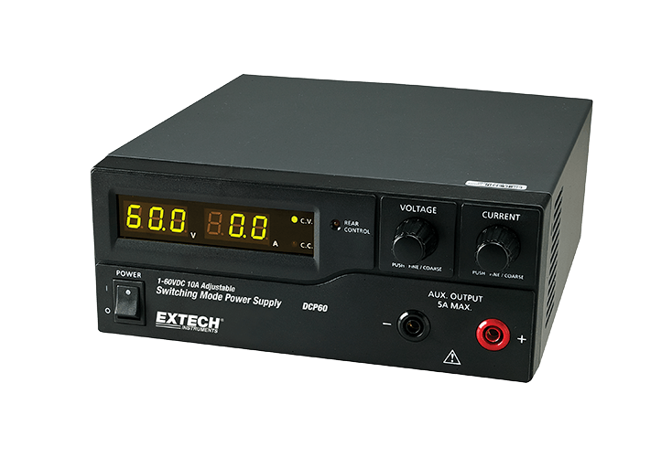

DCP60-220 600W Switching Power Supply (220V)
Brand: ExtechHigh Efficiency Switching Power Supply with Low Ripple and Noise.
Features- Designed for Laboratory use but excellent for bench technicians, engineers, and educational facilities.
- 60V/10A output.
- Maximum current can be limited to 5A using the auxiliary output on the front panel (10A main output is on the back panel).
- Three user-defined Voltage and Current presets.
- Dual action rotary encoder control with push knob for fine and coarse tuning.
- Remote control for Output Voltage\Current and On/Off.
- Complete with power cords.
Specifications
Brand
Basic Accuracy
- ± (0.2 % + 3-Digits)
Dimensions, Weight
- 7.9 x 3.5 x 8.5" (200 x 90 x 215 mm) / 5.7 lb (2.6 kgs)
Line Current Regulation
- 50 mA
Line Voltage Regulation
- 20 mV
Load Current Regulation
- 100 mA
Load Voltage Regulation
- 50 mV
Output Current
- 1-10 A
Output Voltage
- 1-60 V
Ripple & Noise
- ≤ 5 M Vrms, ≤ 100 M V Peak-to-Peak
