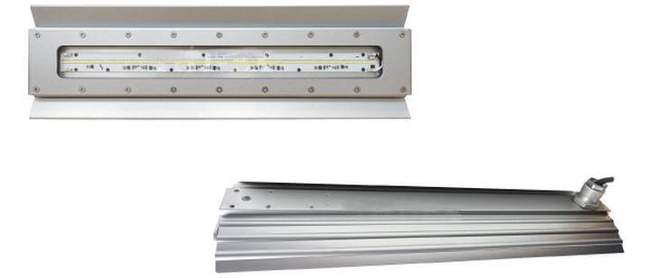

L1319C (SMD) 2 ft Hazardous Location Linear Light
Brand: Top Hi-Tech IncSpecification:
- Volt.: 110 V / 120 V / 220 V / 277 V AC
- Watt.: 40 W / 60 W
- Amps: 40 W (0.14 ~ 0.36 A) / 60 W (0.22 ~ 0.55 A)
- Frequency: 50 Hz / 60 Hz
- Power Factor: cos ≧ 0.9
Ambient Temperature:
- -20°C ~ +55°C, T6
- CID2: -40° C ~ +55° C, T4 / CIID2: +55° C, T5 (UL Certification)
Protection
Degree of Protection - IP68 / NEMA 6P
IECEx Certification
- Ex nR IIC T6 Gc
- Ex tb IIIC T85°C Db
ATEX Certification
- II 3 G Ex nR IIC T6 Gc
- II 2 D Ex tb IIIC T85°C Db
UL Certification
- UL844 - Class I, Division 2 (Group A, B, C and D) / Class II, Division 2 (Group F and G) / Class III
- UL1598
TIIS Certification
- IIC T6 Gc
TS Certification
- Ex nR IIC T5 Gc
- Ex tb IIIC T95°C Db
- Light weight; stream line design
- Heat Resistance 85° C to 100° C
- Product comes with reflector and concentrate light source
Applicable Location
- Zone 2
- Zone 21 & Zone 22
- Class I, Division 2 (Group A, B, C and D)
- Class II, Division 2 (Group F and G)
- Class III
Specifications
Brand
Approvals & Certifications
- ABS - American Bureau Shipping
- ATEX
- GB
- IECEx
Beam
- ≥ 110°
Enclosure, Body Material
- Aluminum Alloy
Environmental Protection
- IP67
- IP68
- NEMA 6
- NEMA 6P
Frequency
- 50/60 Hz
Lens
- Tempered Glass
Lumens
- Per Watt: COB: ≥ 90（W.W.), ≥ 100（C.W.) SMD: 70─80（W.W.）, 80─85（C.W.）
Operating Temperature
- -20° to 40° C (-4° to 104° F)
Voltage
- 110/220 Vac
Wattage
- 40 W (0.14 ~ 0.36 A) 60 W (0.54 A / 0.27 A)
