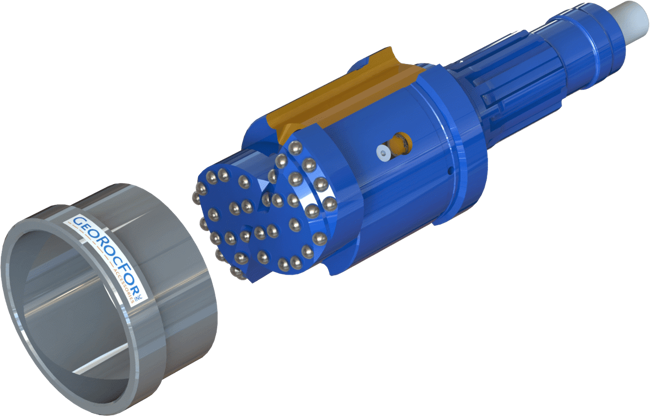

Xs W System
Brand: GeoRocFor Accessories IncGeorocfor offers a complete range of under reamers to perform drilling in soft to medium-soft ground conditions.
The Xs W system is a proven system made by the overburden casing system specialist.
The operation of this type of system is more complex compared to the concentric casing systems.
Casing OD range: 5,500"-24,000"
Specifications
Casing OD
- 5.500”/139.7 mm
- 6.625”/168.3 mm
- 8.625”/219 mm
- 9.625”/244.5 mm
- 10.750”/273 mm
- 12.750”/324 mm
- 14.000”/355.6 mm
- 16.000”/406.4 mm
- 18.000”/457.2 mm
- 20.000”/508 mm
- 22.000”/558.8 mm
- 24.000”/609.6 mm
Maximum Wall
- 0.275”/7 mm
- 0.295”/7.5 mm
- 0.330”/8.4 mm
- 0.375”/9.5 mm
- 0.440”/11 mm
- 0.513”/13 mm
- 0.375”/ 9.5 mm
- 0.437”/11 mm
Extended OD
- 6.000”/152.4 mm
- 7.250”/184.2 mm
- 9.313”/236.5 mm
- 10.375”/263 mm
- 11.500”/292.1 mm
- 13.438”/341.3 mm
- 14.750” / 375.7 mm
- 16.875”/428.6 mm
- 18.875”/479.4 mm
- 21.000”/533.4 mm
- 23.000”/584.2 mm
- 25.000”/635 mm
Retracted OD
- 4.490”/114 mm
- 5.530”/140.5 mm
- 7.380”/187.5 mm
- 8.270”/210 mm
- 9.450”/240 mm
- 11.150”/283.2 mm
- 12.290”/312.2 mm
- 14.365”/365 mm
- 16.300”/414 mm
- 18.230”/463 mm
- 20.120”/511 mm
- 22.100”/561 mm
Driver OD
- 4.920”/125 mm
- 5.970”/151.6 mm
- 7.910”/201 mm
- 8.800”/223.6 mm
- 9.950”/252.8 mm
- 11.810” / 300 mm
- 12.920”/328.2 mm
- 15.100”/383.4 mm
- 17.050”/433 mm
- 18.870”/479.3 mm
- 20.870”/530 mm
- 22.860”/580.6 mm
Driver Shoe I.D.
- 4.580”/116.3 mm
- 5.660”/143.8 mm
- 7.535”/191.4 mm
- 8.350”/212 mm
- 9.510”/241.6 mm
- 11.215”/285 mm
- 12.375”/314.3 mm
- 14.450”/367 mm
- 16.390”/416.3 mm
- 18.310”/465 mm
- 20.200”/513 mm
- 22.170”/563.1 mm
Hammer Size
- 4”/101.6 mm
- 5”/127 mm
- 6”/152.4 mm
- 8”/203.2 mm
- 12”/304.8 mm
- 15”/381 mm
- 18”/457.2 mm
- 24”/609.6 mm
- 16” /406.4 mm
