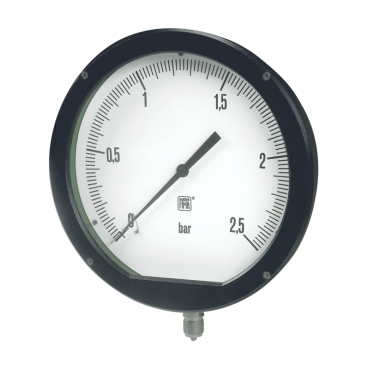

MGS8 DN250 Bourdon Tube Pressure Gauge Aluminium Case
Brand: Nuova FimaThese instruments are designed for use in chemical and petrochemical processing industries, and in conventional power plants, built to resist the most severe operating conditions, to measure gaseous or liquid media which do not have high viscosity or do not crystallize.
Specifications
Brand
Accuracy Class
- 1 as Per EN 837-1
Ambient Temperature Range
- -13° to +149° F (-25° to +65° C)
Bourdon Tube
- AISI 316L Stainless Steel Seamless Tube
Case
- Black Painted Aluminum
Design
- EN 837-1
Dial
- Aluminum, White with Black Markings
IP Protection Rating
- IP55 as Per EN 60529 / IEC 529
Movement
- Stainless Steel
Over Pressure Limit
- 30 % of Full Scale Value (Max. 12 Hours)
Pointer
- Not Adjustable, Aluminum, Black
Process Fluid Temperature
- -40° to +302° F (-40° to +150° C)
Ranges
- From 0 to 1 to 0 to 1000 bar (or Other Equivalent Units)
Ring
- Black Painted Aluminum
Safety Designation
- S1 as Per EN 837-2
Socket Material
- AISI 316L Stainless Steel
Thermal Drift
- ± 0.4 % / 10 K of Range (Starting from 68° F / 20° C)
Window Material
- Tempered Glass
Working Pressure
- 90 % of Full Scale Value for Pulsating Pressure
- FSV for Static Pressure
