ICR System Track and Trace System

Brand: Sick AG
Add Product to My Catalog

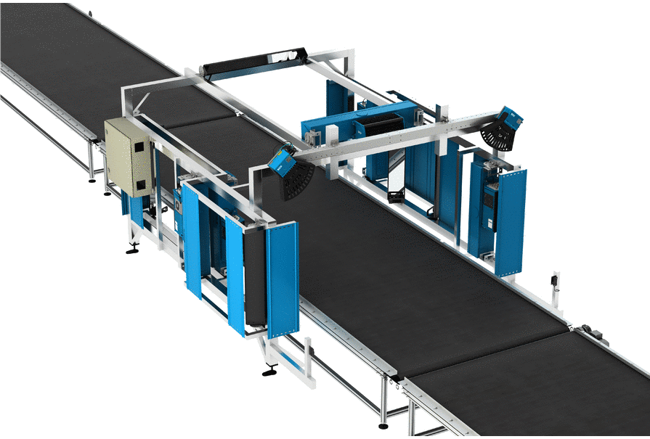

The ICR (image-based code reader) track and trace system is the ideal identification solution for sorting processes at the highest conveyor speeds.

The cubic and irregular shipping objects to be sorted are quickly and reliably identified while all common 1D/2D codes as well as postal codes are taken into account.

The excellent image quality of the integrated camera also enables use in OCR, video coding and vision applications.

The system can be used for thin conveyor widths as well as for widths of up to 1,600 mm and can be expanded to include products such as a volume measurement system.
Features
  • Throughput of more than 18,000 objects/h at conveyor speeds of up to 4 m/s
  • Conveyor belt widths of up to 1,600 mm are covered
  • High-resolution image quality (200 dpi) for the best read rates, OCR results, video coding and vision applications
  • Completely integrated code reading and vision solutions without requiring an additional PC/server
  • Monitoring option thanks to decentralized image archiving
  • Reduced shadow effects and minimal system footprint thanks to the 55° camera skew angle
  • Simplified and cost-efficient cabling due to Ethernet line network topology

1 - 3 of 3 Part Numbers
ICR890-4 12K Prime
ICR890-4 12K Prime
Track and trace systems, Image-based code readers

  • Sensor resolution: 12,288 px
  • Read field width: 1,600 mm
  • Conveyor type: Belt, crossbelt, roller, tilt tray, others on request
  • Transport speed: 0 m/s ... 4.5 m/s
ICR890-4 8K Core
ICR890-4 8K Core
Track and trace systems, Image-based code readers

  • Sensor resolution: 8,192 px
  • Read field width: 1,200 mm
  • Conveyor type: Belt, crossbelt, roller, tilt tray, others on request
  • Transport speed: 0 m/s ... 4.5 m/s
ICR890-4 8K Prime
ICR890-4 8K Prime
Track and trace systems, Image-based code readers

  • Sensor resolution: 8,192 px
  • Read field width: 1,200 mm
  • Conveyor type: Belt, crossbelt, roller, tilt tray, others on request
  • Transport speed: 0 m/s ... 4.5 m/s
1 - 3 of 3 Part Numbers

Specifications

Brand

Certifications & Approvals

  • CE

Transport Speed

  • 0 to 4.5 m/s

Minimum Object Distance

  • ≥ 50 mm

Read Field Width

  • 1,600 mm / 1,200 mm

Sensor Resolution

  • 8,192 px
  • 12,288 px
