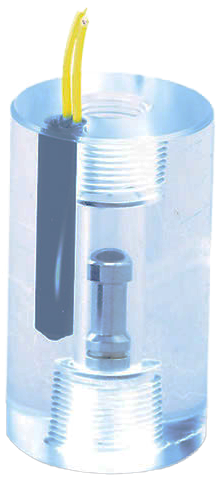

LPH Non-Adjustable Flow Monitor
Brand: ChemTec Equipment Company, IncWhen air/water flows through the unit it causes the magnetic piston to move up at the calibration point. This displacement is caused by the pressure differential from the air/water flowing through the unit. The magnetic piston actuates a hermetically sealed reed switch, which is encapsulated in the body of the unit, out of the air/water path. Decreasing the flow below the calibration point causes the reed switch to de-actuate.
Features- Close On-Off Differential
- Visual Indication of Flow with Acrylic Model
- No Seals
- In Line Vertical Plumbing
- Materials: Acrylic, Brass, 316SS or Teflon
- Confirms: Normal Flow Conditions
- Senses: High Flow and Low Flow Conditions
- Output: Switch Contact
Specifications
Repeatability
- ± 1 %
Accuracy
- ± 10 % of Calibration Points
Enclosure / Body Material
- Teflon
- 316 Stainless Steel
- Brass
- Acrylic
Wetted Material
- Teflon
- Brass
- Acrylic
- 316 Stainless Steel
- Epoxy
Operating Temperature
- 32° to 160° F (0° to 71° C) for Acrylic
- 0° to 220° F (-17° to 104° C) for 316 Stainless Steel, Brass and Teflon
Certifications & Approvals
- cRUus
- CE
Switch Type
- SPDT
- SPST
Port Size
- 1/8" FNPT
- 1/4" FNPT
- Analysers
- Kidney Dialysis Machines
- Micro Biomedical Machines
- Laser Cooling Systems
- Bubbler Systems
- Pollution Sampling Equipment
