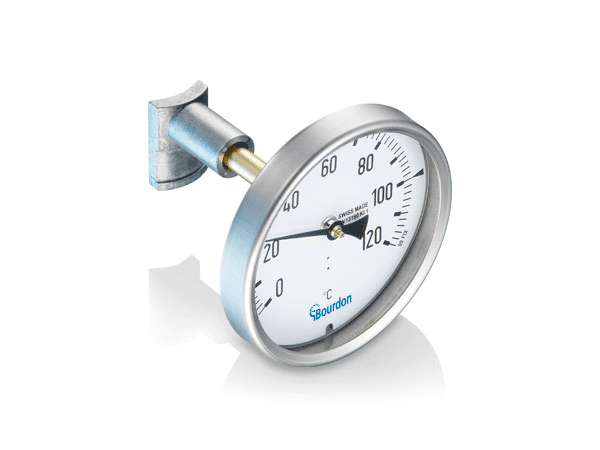

TBHA080 Bi-Metal Thermometer
Brand: Bourdon
Features
- For clamp-on mounting on isolated pipes
- Pipe diameter 3/4" to 2"
- Class 1 according to EN 13190
Specifications
Brand
Accuracy According to EN 13190
- Class 1
Base
- Fixing Tube: Brass
- Socket: Zinc Casting
Bezel Ring Material
- Stainless Steel 1.4301, AISI 304
Case Material
- Stainless Steel 1.4301, AISI 304
Dial
- White, Aluminum
Hose Clamp
- Steel, Zinc-Plated
Immersion Tube Material
- Stainless Steel 1.4571, AISI 316Ti
IP Protection Rating
- IP50
Nominal Size
- 80 mm
Pointer
- Black, Aluminum
Temperature Range
- -20° to +120° C
Thermometer
- 150 G
Window Material
- Instrument Glass
- Water & Waste water
- Energy
- Machinery
- HVAC
