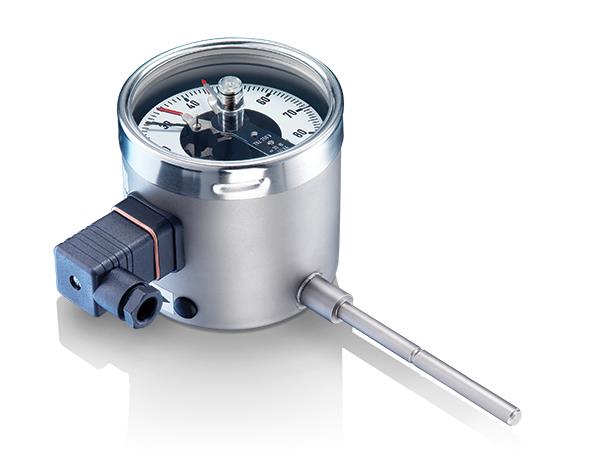

TSSE100 Gas Filled Thermometer

Brand: Bourdon

Features
  • For corrosive gasses and liquids
  • Class 1 according to EN 13190
  • Wetted parts and case material stainless steel
  • Mechanical or inductive contacts
  • Option: Case material 1.4404 (316L) for aggressive atmosphere

Specifications

Brand

Accessories

  • Sliding Connections & Thermowells, See Datasheets: B51.01 (AGF/AGW) & T6.215 (Ø 8)

Accuracy According to EN 13190

  • Class 1

Approvals & Certifications

  • ATEX

Bezel Ring Material

  • Stainless Steel 1.4301, AISI 304

Case Material

  • Stainless Steel 1.4301, AISI 304

Dial

  • White, Aluminum

Immersion Tube Material

  • Stainless Steel 1.4541, AISI 321

IP Protection Rating

  • IP65

Movement Material

  • Brass

Nominal Size

  • 100 mm

Pointer

  • Black, Aluminum

Temperature Limitation

  • 130 % of Full Scale

Temperature Range

  • -200° to +800° C

Window Gasket

  • Elastomer

Window Material

  • Laminated Safety Glass

  • Food & Beverage
  • Oil & Gas / Chemical
  • Laboratory & Medical
  • Energy
