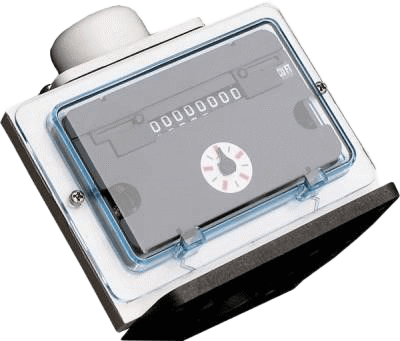

210/220 Pulse Transmitter
Brand: Honeywell Process SolutionsModels 210 and 212 pulse transmitters are designed for use with turbine, rotary and diaphragm gas meters equipped with an instrument-mounting facility.
The products transmit uncorrected volume to a remote location.
Both the pulse transmitters from Mercury Instruments are self-contained and can be used in conjunction with a chart recorder or correcting device.
They use a magnetically operated reed switch, create a torque load on the meter of less than 0.5 inch ounces, and require standard mounting bolts and hardware to adapt to the meter.
FeaturesModel 210 Pulse Transmitter
- Produces one pulse for each revolution of the meter output drive
- Has an instrument drive output
- Is bidirectional without internal gears and index
Model 212 Pulse Transmitter
- Can provide single- or multiple-pulse outputs for each meter wriggler rotation
- Comes with an uncorrected index in the housing
- Can be mounted on both clockwise and counter-clockwise rotating instrument drive due to a reversing gear mechanism
