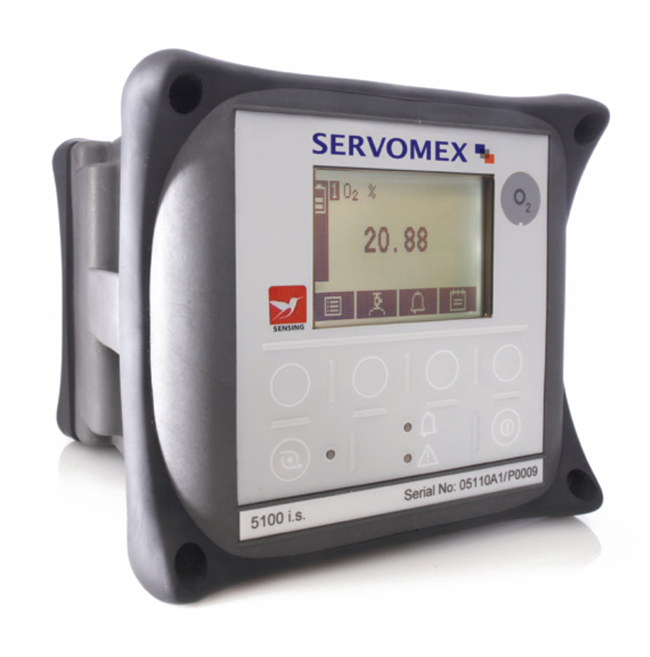

SERVOFLEX Micro i.s. (5100 i.s.) Oxygen, Carbon Monoxide & Carbon Dioxide Portable Gas Analyzer
Brand: SERVOMEXDesigned to meet the demands of the most dangerous environments, Micro i.s. delivers ultra-sensitive percentage measurements for oxygen, carbon monoxide and carbon dioxide. A tough, life-proof design and feature-rich performance ensures maximum operational flexibility.
Micro i.s. is Intrinsically Safe (i.s.) and is able to analyze both flammable and toxic samples. This intelligent design means that no purge is required prior to device use.
Micro i.s. also provides an intuitive user interface, the ability to store up to 200 measurements and up to 18 hours battery run time.
Specifications
Brand
Accuracy
- ± 0.05 % Oxygen
- ± 0.1 % Oxygen
- ± 2 % of Full Scale Range
Approvals & Certifications
- ATEX: Ex ia (Intrinsically Safe) IIC T4 Ga (-10° C≤ Ta≤ 50° C) (14° F≤ Ta≤ 122° F)
- CE Marked 100-240 V, 43 to 70 Hz AC Power Supply
- CSA: [IS / I / 1 / ABCD / T4, -10° C≤ Ta≤ 50° C: IP65 (Div. 1)], [IS / I / 0 / Ex ia / IIC / T4, -10° C≤ Ta≤ 50° C: IP65 (Zone 0)]
- EMC Directive
- FM: [IS/I/1/ABCD/T4, -10° C≤ Ta≤ 50° C: IP65 (Div. 1)], [IS/I/0/AEx ia/IIC/T4, -10° C≤ Ta≤ 50° C: IP65 (Zone 0)]
- IEC: Ex ia (Intrinsically Safe) IIC T4 Ga (-10° C≤ Ta≤ 50° C) (14° F≤ Ta≤ 122° F)
- UL
- WEEE Directive
Environmental Protection
- IP65
Materials of Construction
- Cell: 316 Stainless Steel
Operating Temperature
- -10° to 50° C (14° to 122° F)
