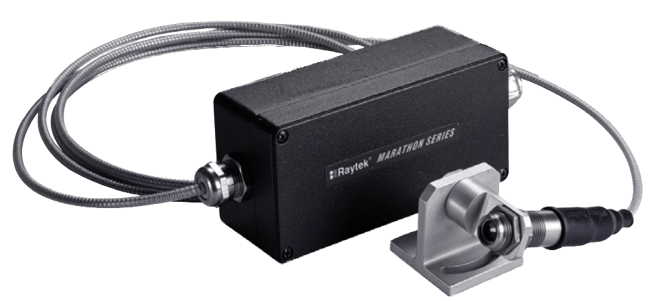

FR1 Fiber Optic Noncontact Thermometer
Brand: Raytek
Features
- Fiber optic cable field-replaceable without blackbody recalibration (non-laser modules)
- Laser aiming available on selected models
- Provides accurate measurement of targets that: are obstructed by smoke, steam or particulates, or are either moving or smaller than the instrument's field of view
- Measures from 500° to 2,500° C (932° to 4,532° F) with three models
- Fast response time of 10 mSec
- One or two-color operation
- Simultaneous Analog and digital outputs
Specifications
Brand
Accuracy
- 0.3%
- 1%
- 1.3%
Ambient Temperature Range
- 0° to 315° C (32° to 599° F)
Communication
- RS-485
Enclosure, Body Material
- Stainless Steel
Humidity
- 10 to 95 % Relative Humidity, Non-Condensing
Output
- 0-20 mA
Power Requirement
- 110 Vac
- 24 Vdc
- 500 mA
Repeatability
- ± 1° C (± 2° F)
Resolution
- ± 1° C
Response Time
- 10 milliseconds
Storage Temperature
- -20° to 70° C (-4° to 158° F)
Temperature Range
- 500° to 2,500° C (932° to 4,532° F)
