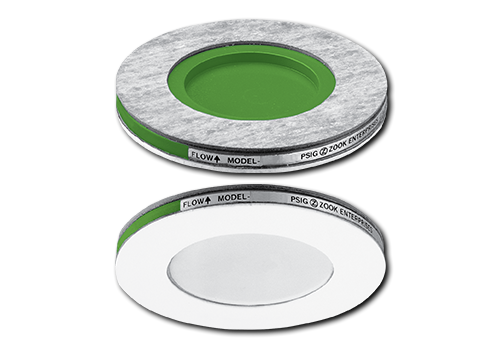

TD Series Transportation Rupture Disks
Brand: ZOOKThe TD Series is designed specifically for use in over-the-road tank trailer applications.
Features- Superior fatigue resistance allows extended use for a full year without change-out regardless of number of trips logged.
- High Visibility Green TFE Coating: Visual indication of disk integrity and easy inspection.
- Designed specifically for use in over-the-road tank trailer applications.
- Provides reliable high performance at low cost.
- Unaffected by virtually all corrosives except elemental Fluorine.
- Replaces lesser performing metal and graphite type disks.
- Operating pressures to 90% of the disk’s marked burst pressure.
- No disk holder required.
- Fits ANSI Class 150 flanges.
- Temperature ratings to 72°F (22°C) (Contact ZOOK for other sizes, burst and temperature ratings).
- Burst performance: ± 5% of the marked burst rating.
- 0% manufacturing range.
- ASME UD marking available.
Specifications
Brand
Burst Pressure Range
- 30 psig (2.07 barg), 35 psig (2.41 barg), 40 psig (2.76 barg), 45 psig (3.10 barg), 50 psig (3.45 barg)
Sizes
- 2” (50 mm), 3” (75 mm), 4” (100 mm)
Standard Operating Range
- 90%
Vacuum Support Required
- No
