Parmax Multi - Cartridge Filter Vessels

Brand: Domnick Hunter - by Parker

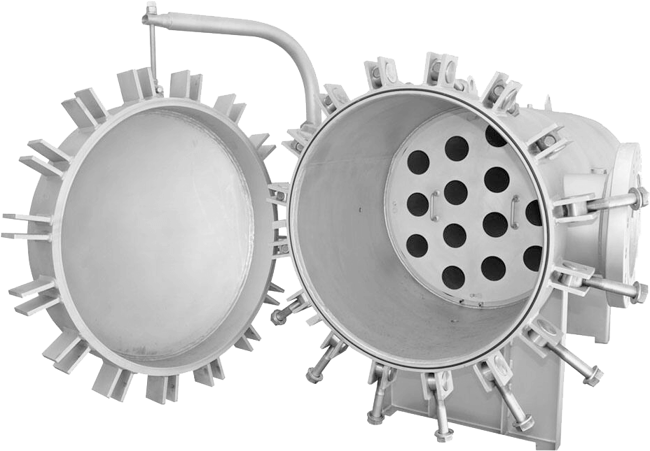

ParMax™ multi-cartridge filter vessels are designed to accept ParMax filter cartridges for high-flow filtration applications of up to 500 gpm (1892 lpm) each 60˝ length. They provide significant size and capital cost reduction compared with vessels containing conventional size filter cartridges.

The horizontal design and coreless cartridge configuration make filter change fast and easy. ParMax filter elements are inside/out flow direction and are available in either 20˝, 40˝ or 60˝ length.

Actual flow rate is dependent on fluid viscosity, micron rating, contaminant, media type, and inlet velocity. Consult ParMax cartridge flow charts for each application.

Features

Horizontal design makes filter change easier and quicker without need for elevated platform. Vertical orientation is also available
Large diameter filter cartridge yields a high flow rate per filter cartridge resulting in fewer filter cartridges, and smaller lower cost vessels
Inside-out flow direction captures contaminates on the inside of the filter which makes changing cartridges less messy and quicker
Built to ASME Boiler and Pressure Code to insure integrity
Filter cartridges have external O-ring for positive seal
Available in carbon steel, 304L & 316L stainless steel for a wide variety of applications. Other alloys also available
O-ring cover seal for quick and positive vessel cover sealing
Cover locating pin for quick and accurate alignment
Available in 150 PSI and 300 PSI pressure ratings: custom pressure ratings available
