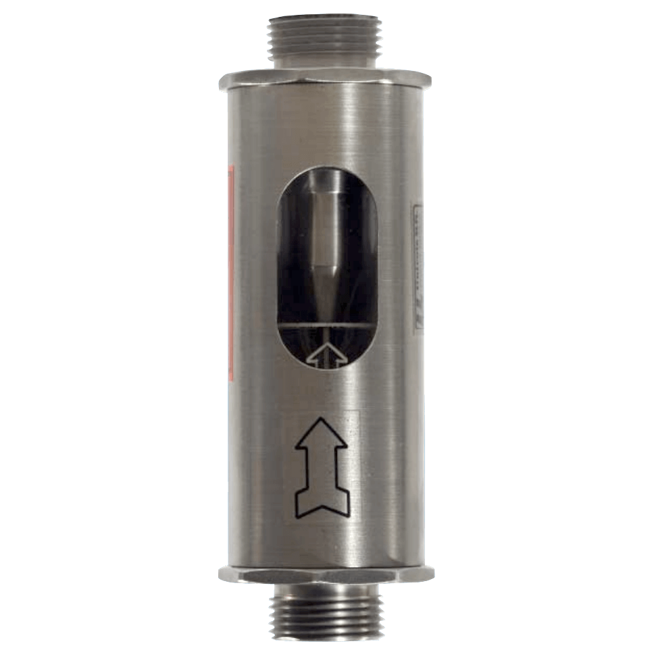

UFJ Flow Indicator
Brand: KOBOLD Instruments, IncThe flow indicator model UFJ for liquids and gases operates on the suspended float principle; i.e. the installation position is vertical and the direction of flow is from bottom to top.
The instrument consists of a measuring tube in which a section around the set value is cut out. It has a marking in its slot comprising of a set value / switching point and ranging from approximately -1% to+5%, whereby the float indicates the presence of flow.
The apparatus is configured in such a way that when the flow is less than approximately -1% of the set value, only the float head is visible through the slot. When the flow is around the set value or greater, the float appears in the sight glass.
Set value: The value given by the customer corresponds to the flow of the medium, where the float top edge is aligned with a line on the sight glass.
Specifications
Brand
Accuracy
- ± 4 % of Set Value
Ambient Temperature Range
- -25° to 70° C (-13° to 158° F)
BSP Connection
- G 1” Female
- G 1” Male
- G 1/2” Female
- G 1/2” Male
- G 1/4” Female
- G 1/4” Male
- G 1-1/2” Female
- G 1-1/2” Male
- G 1-1/4” Female
- G 1-1/4” Male
- G 3/4” Female
- G 3/4” Male
- G 3/8” Female
- G 3/8” Male
Cable Length
- 6.56 feet (2 metres)
Cable Material
- PVC
Connection Material
- 304 Stainless Steel
- POM - C
- PVC
Consumption
- 10 mA - Max.
Electrical Contacts
- N/C Contact
- N/O Contact
Enclosure / Body Material
- 304 Stainless Steel
- 316L Stainless Steel
- POM - C
- PVC
Environmental Protection
- IP65
- IP67
Flow Rate
- 0.2 to 250 Nm³/hour to Gas
- 10 to 8,000 L/hr to Water
Gasket Material
- FPM
- NBR
Hysteresis
- Approximately 1 % of Reading
Materials of Construction
- 304L Stainless Steel
- Borosilicate Glass - Measuring Tube
- Stainless Steel - Float
Maximum System Pressure
- psi: 87.02 (kPa: 600, bar: 6)
Process Temperature
- 65° to 120° C (149° to 248° F)
Supply Voltage
- 12-24 Vdc
Switch Type
- PNP Transistor
Temperature Range
- 120° C (248° F) - Max.
