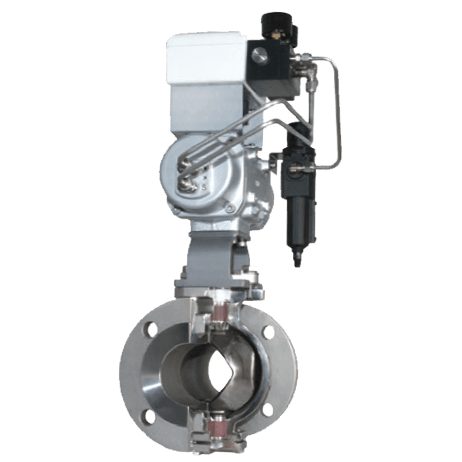

V-Port Ball Valve

Brand: KTM

A rugged, long-life V-port control ball valve with excellent flow characteristics for various fluids including slurries and fibers.
Features
  • Rotary-valve design provides shearing action between the V-notch ball and the seat, promoting a smooth, non-clogging operation.
  • Straight-through flow design provides high capacity for fluids.
  • With a single-seat design, torque is lower than typical trunnion design valves, for ease of operation and reduced actuator cost.
  • Two seat designs:
    • Laminated seat provides ASME/FCI 70-2 class IV shut-off and withstands tough operating conditions.
    • Thick (solid) seat for high-velocity and abrasive or erosive service.
  • Segmented, V-notched ball features high rangeability and smooth throttling action.
  • Choice of full and reduced port, providing the right flow capacity for every application at low cost.
  • Machined ISO 5211 top mounting flange (VA series only).
  • Heavy-duty, stainless steel shaft for high strength and rigidity.
  • Multiple, adjustable ring packing allows easy adjustment without valve disassembly or actuator removal.
  • Shaft bearings assure a durability, smooth and easy valve operation.
  • Positive alignment of split body.
  • The spline connection minimizes the backlash of shaft and disk. It results in excellent control performance.

Specifications

Brand

Direct Mount

  • Yes

Enclosure, Body Material

  • CF8, CF8M Stainless Steel
  • WCB Carbon Steel

Flange Size - 1-1/2” (DN 40)

  • 1-1/2” (DN 40) - 150#
  • 1-1/2” (DN 40) - 300#
  • 1-1/2” (DN 40) - JIS 10K
  • 1-1/2” (DN 40) - JIS 20K

Flange Size - 1” (DN 25)

  • 1” (DN 25) - 150#
  • 1” (DN 25) - 300#
  • 1” (DN 25) - JIS 10K
  • 1” (DN 25) - JIS 20K

Flange Size - 10” (DN 250)

  • 10” (DN 250) - 150#
  • 10” (DN 250) - 300#
  • 10” (DN 250) - JIS 10K
  • 10” (DN 250) - JIS 20K

Flange Size - 12” (DN 300)

  • 12” (DN 300) - 150#
  • 12” (DN 300) - 300#
  • 12” (DN 300) - JIS 10K
  • 12” (DN 300) - JIS 20K

Flange Size - 14” (DN 350)

  • 14” (DN 350) - 150#
  • 14” (DN 350) - 300#
  • 14” (DN 350) - JIS 10K
  • 14” (DN 350) - JIS 20K

Flange Size - 16” (DN 400)

  • 16” (DN 400) - 150#
  • 16” (DN 400) - 300#
  • 16” (DN 400) - JIS 10K
  • 16” (DN 400) - JIS 20K

Flange Size - 18” (DN 450)

  • 18” (DN 450) - 150#
  • 18” (DN 450) - 20K
  • 18” (DN 450) - 300#
  • 18” (DN 450) - JIS 10K

Flange Size - 2-1/2” (DN 65)

  • 2-1/2” (DN 65) - 150#
  • 2-1/2” (DN 65) - 300#
  • 2-1/2” (DN 65) - JIS 10K
  • 2-1/2” (DN 65) - JIS 20K

Flange Size - 2” (DN 50)

  • 2” (DN 50) - 150#
  • 2” (DN 50) - 300#
  • 2” (DN 50) - JIS 10K
  • 2” (DN 50) - JIS 20K

Flange Size - 20” (DN 500)

  • 20” (DN 500) - 150#
  • 20” (DN 500) - 300#
  • 20” (DN 500) - JIS 10K
  • 20” (DN 500) - JIS 20K

Flange Size - 3” (DN 80)

  • 3” (DN 80) - 150#
  • 3” (DN 80) - 300#
  • 3” (DN 80) - JIS 10K
  • 3” (DN 80) - JIS 20K

Flange Size - 4” (DN 100)

  • 4” (DN 100) - 150#
  • 4” (DN 100) - 300#
  • 4” (DN 100) - JIS 10K
  • 4” (DN 100) - JIS 20K

Flange Size - 5” (DN 125)

  • 5” (DN 125) - 150#
  • 5” (DN 125) - 300#
  • 5” (DN 125) - JIS 10K
  • 5” (DN 125) - JIS 20K

Flange Size - 6” (DN 150)

  • 6” (DN 150) - 150#
  • 6” (DN 150) - 300#
  • 6” (DN 150) - JIS 10K
  • 6” (DN 150) - JIS 20K

Flange Size - 8” (DN 200)

  • 8” (DN 200) - 150#
  • 8” (DN 200) - 300#
  • 8” (DN 200) - JIS 10K
  • 8” (DN 200) - JIS20K

Flange Type

  • Raised Face (125 to 250 AARH)

Packing Material

  • PTFE

Port

  • Full
  • Reduced (Standard, Regular)

Seat / Seal Material

  • 316 Stainless Steel
  • 316 Stainless Steel with Stellite

Temperature Range

  • -29° to 350° C (-20° to 662° F)

Valve Type

  • Manual
