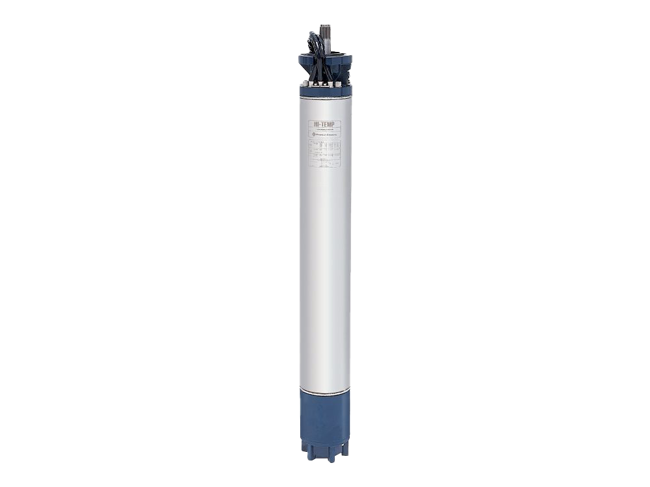

8-Inch Encapsulated High-Temp Motor
Brand: Franklin Electric Co, Inc.This 8-inch high-temp motor, manufactured in ISO 9001 certified facilities, are built for dependable operation in 8"" diameter or larger water wells with ambient temperatures up to 75 °C.
It is fitted with water lubricated radial and thrust bearings for maintenance-free operation. The 8-inch high-temp motor is filled with a special FES92 fluid, providing frost protection down to -15 °C storage temperature.
A special diaphragm ensures pressure compensation inside the motor. The Sandfighter® SiC seal system is standard."
Features- Up to 167 ºF (75 ºC) ambient temperature
- 25% increase in upthrust capability at 30 ºC
- 25% increase in downthrust capability at 30 ºC
- Wet Well, Reservoir, Low Flow approved in 14” diameter or larger wells with ambient water
up to 87 ºF (30 ºC) - High temperature leads
- Hermetically sealed stator
- Innovative high temperature winding encapsulation system
- FE water soluble, high temperature bearing lubrication
- Double-flange NEMA mounting for ease of handling and pump mounting
- Stainless steel splined shaft for maximum shaft/coupling contact
- Full 3525 RPM 60 Hz design point for superior pump performance
- SAND FIGHTER™ Sealing System
- Franklin Electric’s exclusive Water-Bloc™ lead connection
- 316 SS, Y-∆ and non-vertical designs available - consult factory
- Some pumping applications require more – and Franklin’s Hi-Temp Motor line delivers just that – more.
- The Hi-Temp motor was designed and built in response to many requests for a motor that can operate dependably in wells with high temperatures and/or low flow conditions.
- The Hi-Temp 75C 8” motor utilizes a new, premium encapsulation process and new water soluble coolant to allow continuous operation in water temperatures of up to 75 ºC (provided minimum allowable rates of flow past the motor are maintained).
- In addition, this design is capable of handling thrust loads 25% higher than a standard motor without using oil. Franklin’s Hi-Temp 75C is the right choice for your demanding, high temperature well applications.
