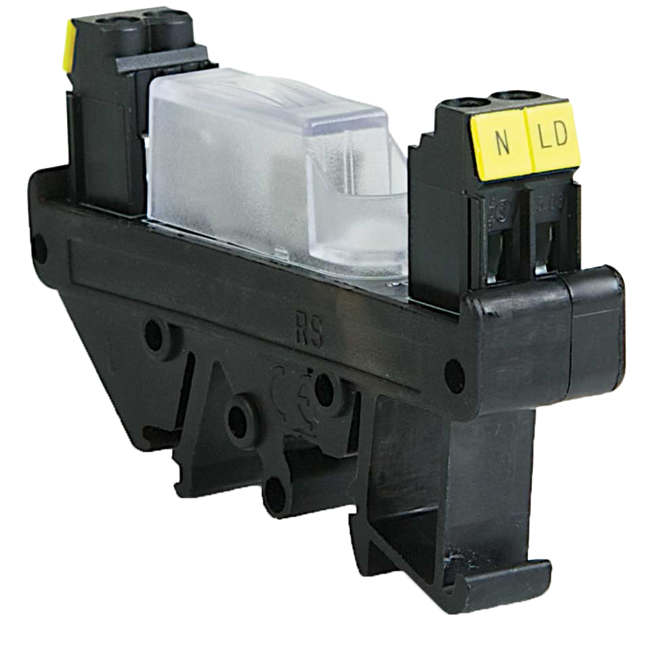

DEPRO-FM5/1 Fuse Module

Brand: Emphatec
Add Product to My Catalog

These modules are intended for any application requiring supplemental fusing. Fuse status indication is included (LED on = fuse healthy). The 24 Vdc versions are ideal accessories to the DC Plus power supplies while the AC versions are intended for control applications where upstream branch protection or control transformers are used.

The 24 Vdc version is just 11.2 mm wide while the 120 Vac/dc version is 16.2 mm wide. These widths are comparable to a fuse terminal plus a feedthrough terminal for the 0 V connection.

The fuse is socket mounted beneath a protective cover. Standard 5 x 20 mm fuses are used and are NOT provided with the module. Glass fuses are recommended as the status LED is under the fuse.
Features
  • Socket mounted 5 x 20 mm fuse module (fuse not provided)

  • 24 Vdc and 120 Vac/dc versions

  • Compact packaging

  • cCSAus Class 1 Division and Zone 2 certified

    • 1 - 1 of 1 Part Numbers
    DEPRO-FM5/1
    DEPRO-FM5/1
    • Electrical Rating - 24 Vdc
    1 - 1 of 1 Part Numbers

    Specifications

    Brand

    Ambient Temperature Range

    • Operating: -25° to 45° C (-13° to 113° F)

    Applications

    • Application: Compact Packaging

    Approvals & Certifications

    • CSA (C,US) Class I, Div. 2, Groups A, B, C, D Temperature Code - 24 Vdc: T6, Temperature Code - 120 Vac: T5, Ex NA IIC, Zone 2 AEx NA IIC

    Electrical Connectors

    • Input/Output: 26 to 12 AWG

    Indication

    • LED: Green (Fuse Healthy)

    Input

    • Input: 120 Vac/dc
    • Input: 24 Vdc Nominal

    Mounting

    • Fuse: Socket Mounted

    Output

    • Output: 2 A, Max.

    Torque

    • 0.5 to 0.6 Nm
