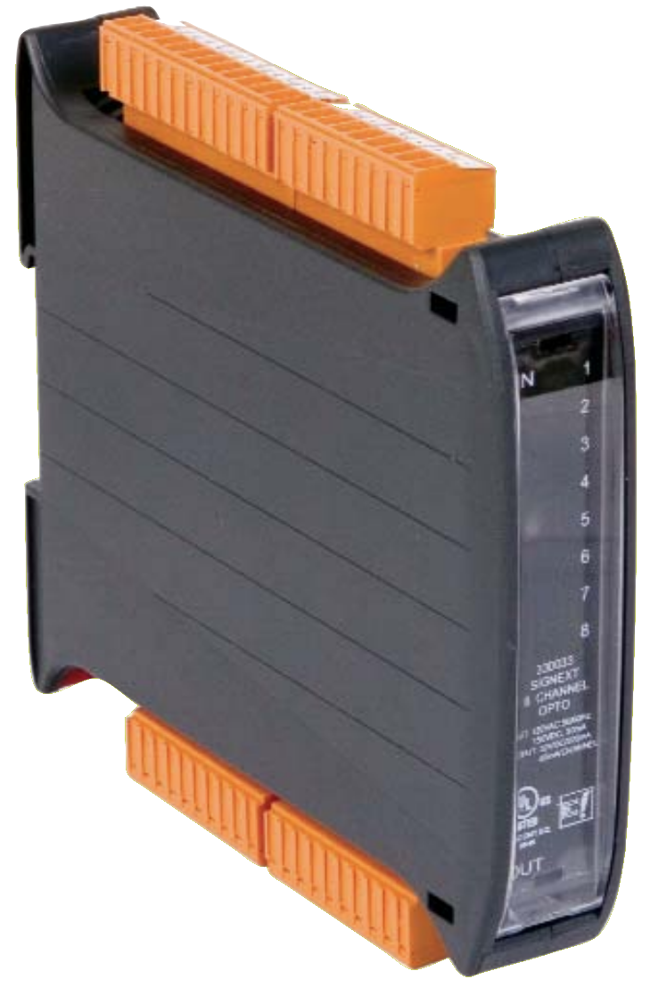

DEPRO 8-Channel Optocoupler Module.png

DEPRO 8-Channel Optocoupler Module

Brand: Emphatec
Add Product to My Catalog

In applications where panel space is limited this module is the ideal solution.

In 22.5 mm of DIN rail space the DEPRO 8 Channel Optocoupler provides 8 isolated optocouplers with wide range and constant current inputs - that’s just 2.8 mm per opto.

The input of each channel accepts signals from 10-150 Vdc or 70-120 Vac meaning one module is suitable for use with 12, 24, 28, 48 and 125 Vdc, as well as 120 Vac.

The input current is constant at approximately 4 mA regardless of the input voltage. The DEPRO 8 Channel Optocoupler is the perfect interface between various field signals and PLC or DCS digital inputs.
Features
  • 8 isolated optocouplers in a 22.5 mm wide housing

  • Wide range input: 10-150 Vdc, 70-120 Vac

  • Outputs rated 24 Vdc at 40 mA maximum per channel

  • All connections via plug & socket connectors

  • Input “L/+” and “N/-” connections grouped together for easy jumping

  • Class 1 Division 2 certified

    • Specifications

    Brand

    Approvals & Certifications

    • CSA (C,US) C22.2 No. 213-M1987, ANSI/ISA
    • UL (C,US) UL 508, CSA C 22.2 No.14-95 E256770

    Electrical Connectors

    • 26 to 12 AWG
    • Termination: Plug & Socket

    Indication

    • LED

    Input

    • AC: 70-130 Vac
    • Current Per Input: 4 mA Regardless of Voltage
    • DC: 10-150 Vdc

    Isolation

    • Isolation: 2 kV Input-Output (Coil-Contacts) for 1 Minute

    Mounting

    • DIN Rail Mounting

    Output

    • Nominal: 24 Vdc
    • Output Current: 40 mA - Max.

    Process Temperature

    • -40° to 50° C (-40° to 122° F)
