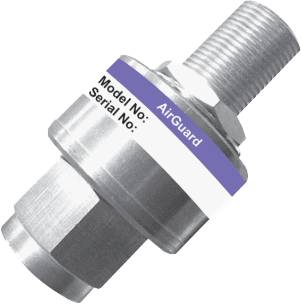

MTL AirGuard Narrowband QuarterWave Tubeless Stubsurge Range Specialist Surge Protection Products
Brand: MTL InstrumentsThe NQWS range : Narrowband Quarterwave Tubeless Stub of surge protection devices prevent surges and transient overvoltages.
The NQWS range uses an innovative “tubeless” design to achieve the superior performance characteristics of a conventional quarterwave stub.
This compact unit has a high transient current capability with extremely low Passive Intermodulation: PIM.
Features- Multi Application
- Low Passive Intermodulation: PIM
- Weatherproof
- Up to 100kA of Surge Current Capacity
- No Discrete Components to Fail
- Models from 420MHz to 6GHz
- Nickel Plated for Corrosion Resistance
Specifications
Brand
Mounting Connectors
- N Bulkhead Female
- 7/16 Bulkhead Female
Second Connector
- N Female
- N Male
- 7/16 Female
- 7/16 Male
Surge Current
- 60 kA
- 100 kA
Bandwidth Frequency
- .411-.494
- .82-.96
- 1.7-2.0
- 2.2-2.6
- 3.0-3.6
- 5.15-5.88
- .82-2.2
- 2.4-6.0
- Protection of Radio Telemetry Systems, Mobile Communications Base Stations and where High Induced Voltages may be Present
