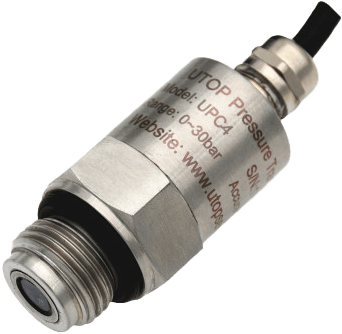

Liquid Pressure Transducer

Brand: Xi'an UTOP Measurement Instrument Co, Ltd
Add Product to My Catalog

UPC4 Liquid Pressure Transducer uses integrated silicon diaphragm as sensing element.

It's effective size is small, and because of the silicon's fine elasticity characteristic, in addition to the transducer's flush structure, therefore, UPC4's dynamic frequency response is extremely high (max. 1MHz), it may response to the lowest to zero frequency, highest to almost natural frequency, and the level rising time is only microsecond.

The overall performance of UPC4 Liquid Pressure Transducer surpasses piezoelectric dynamic pressure transducer.
Features
  • Based on MEMS silicon chips
  • High accuracy, high stability, high reliability
  • Flush structure, good dynamic frequency response
  • Wide measuring ranges

View_Details

Specifications

Brand

Dynamic Frequency

  • Maximum 1 MHz

Pressure Medium

  • Gas or Liquid Compatible to Stainless Steel

Pressure Ranges

  • 0 ~ 0.1...600 bar

Pressure Type

  • Gauge
  • Sealed Gauge

Overload Pressure

  • ≥ 150 % Full Scale

Output Signal

  • 80 ± 20 mV

Accuracy

  • 0.25 % Full Scale, 0.5 % Full Scale (Standard)

Zero Offset

  • ≤ ± 2 mV

Long-Term Stability

  • < 0.2 % Full Scale/year

Excitation

  • 1.5 mA or 10 Vdc

Compensated Temperature Range

  • -10° ~ +70° C

Operating Temperature Range

  • -30° to +100° C

Storage Temperature Range

  • -40° to +100° C

Temperature Coefficient of Zero

  • 0.3 % Full Scale/10° C

Temperature Coefficient of Span

  • 0.2 % Full Scale/10° C

Input/Output Resistance

  • 1~6 kΩ

Insulation Resistance

  • 100 MΩ @ 50 Vdc

Process Connection

  • M20 x 1.5 or others

Electrical Connection

  • Self-Locking Structure or other

Material of Wetted Part

  • 1Cr18Ni9Ti

Material of Housing

  • 1Cr18Ni9Ti

  • This High Frequency Liquid Pressure Transducer has been widely applied in:
    • Scientific Experiments as Military Engineering
    • Melt Exploding Experiment
    • The Wound Medicine
    • Hydraulic Pressure Power Generator Experiments, and in the Modernization Instruments and Meters
    • It is the first choice for Dynamic Pressure Measurement

Documentation

Data Sheets
