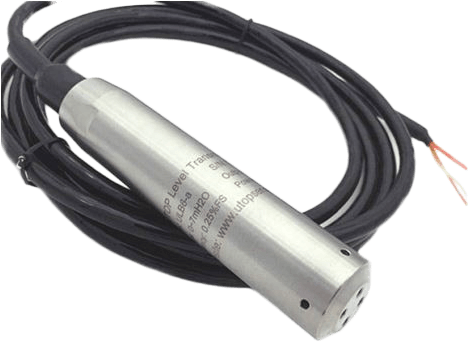

ULB6 Oil Level Sensor is made from stainless steel with rigid and robust construction. The protection case with a small hole not only protect the diaphragm, but also let the liquids contact the diaphragm freely.

The exquisite sealing technology as well as good assembly techniques guarantee ULB6 Oil Level Sensor's outstanding quality & performance.

This Oil Level Sensor has a waterproof cable with vent hose which is designed for submersible applications.
Features
  • Intrinsic safety, or flame-proof safety optional
  • Wide application scope long service life
  • IP68 protection
  • Against thunder stroke, against radio-frequency interference

Specifications

Measuring Ranges

  • 0 ~ 1 mH₂O...200 mH₂O

Output Signal

  • 4~20 mA, 0~5 V, 0~10 V, 1~5 V

Accuracy

  • 0.1 % FS, 0.25 % FS (Standard), 0.5 % FS

Load Resistance

  • RL = (U-12 V)/0.02 A (4~20 mA Current Output), U-Loop Voltage (V)

Supply Voltage

  • 12 ~ 36 Vdc

Compensated Temperature Range

  • -10° ~ 70° C

Storage Temperature Range

  • -40° to 100° C

Electrical Connection

  • Ø 7.2 mm Shielded Cable with Vent Hose

Material of Pressure Membrane

  • 316L or Tantalum

Sealing

  • n-Butyronitrile or Fluoro-Rubber Sealing Ring

  • ULB6 Oil Level Sensor is widely Applied in Petroleum, Chemical, Metallurgy, Hydrology Exploration etc.
