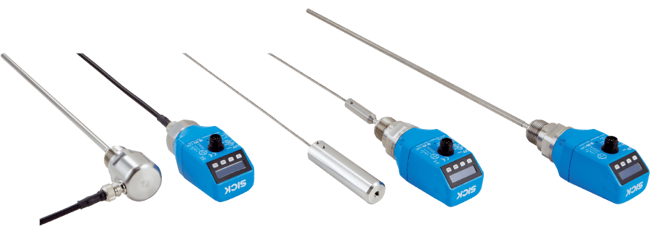

LFP Cubic Level Sensor

The LFP Cubic is a level sensor for liquids using TDR technology – a process for determining the time of flight of electromagnetic waves.

The time difference between the sent pulse and the reflected pulse is used to generate a level signal.

The sensor can emit this a as continuous measured value (analog output) and a freely positionable switching point (switching output).

The LFP Cubic is compatible for use in virtually any liquid.

Thanks to its modular probe, the sensor can be integrated quickly into any application.

It can even be used in deposit-forming and foaming liquids.

The sensor’s intuitive setup uses four pushbuttons and a display to ensure quick and easy adaptation to the application.

Remote amplifier, IO-Link interface, and a design which features a process connection in titanium are additional features for versatile use.

Features

Rugged design increases service life
High flexibility with interchangeable rod probe or cable probe that can be cut to length
Cost savings due to multiple output signals: One system for both point level and continuous level measurement
Maintenance-free and easy to commission without calibration, saving time and money
Titanium process connection is highly resistant to chemicals
Compact, rotatable housing and remote amplifier for flexible installation
High availability, even when several sensors are installed in parallel, since there is no mutual device interference
Universal technology facilitating calibration-free measurement saves time and money

1 - 12 of 384 Part Numbers

per page:

LFP0025-A4BMB

Probe Length - Without Probe
Process Connection/Probe Version - G ¾ A / Rod Probe 1.4404 Interchangeable, 100° C; 10 bar
Housing/Display/Device Connection - Plastic Housing with Display / 1 x M12 Male Connector / 5-Pin
Application Type/Design - Remote Amplifier; Length of Cable 1 m
Signal Output - 4-20 mA / 0-10 V Switchable
Switching Output - 1 x PNP + 1 x PNP/NPN
Device Type - Standard

LFP0025-A4BMBL

Probe Length - Without Probe
Process Connection/Probe Version - G ¾ A / Rod Probe 1.4404 Interchangeable, 100° C; 10 bar
Housing/Display/Device Connection - Plastic Housing with Display / 1 x M12 Male Connector / 5-Pin
Application Type/Design - Remote Amplifier; Length of Cable 1 m
Signal Output - 4-20 mA / 0-10 V Switchable
Switching Output - 1 x PNP + 1 x PNP/NPN
Device Type - LABS-Cleaned

LFP0025-A4BMC

Probe Length - Without Probe
Process Connection/Probe Version - G ¾ A / Rod Probe 1.4404 Interchangeable, 100° C; 10 bar
Housing/Display/Device Connection - Plastic Housing with Display / 1 x M12 Male Connector / 5-Pin
Application Type/Design - Remote Amplifier; Length of Cable 1 m
Signal Output - 4-20 mA / 0-10 V Switchable
Switching Output - 1 x PNP + 3 x PNP/NPN
Device Type - Standard

LFP0025-A4BMCL

Probe Length - Without Probe
Process Connection/Probe Version - G ¾ A / Rod Probe 1.4404 Interchangeable, 100° C; 10 bar
Housing/Display/Device Connection - Plastic Housing with Display / 1 x M12 Male Connector / 5-Pin
Application Type/Design - Remote Amplifier; Length of Cable 1 m
Signal Output - 4-20 mA / 0-10 V Switchable
Switching Output - 1 x PNP + 3 x PNP/NPN
Device Type - LABS-Cleaned

LFP0025-A4CMB

Probe Length - Without Probe
Process Connection/Probe Version - G ¾ A / Rod Probe 1.4404 Interchangeable, 100° C; 10 bar
Housing/Display/Device Connection - Plastic Housing with Display / 1 x M12 Male Connector / 5-Pin
Application Type/Design - Remote Amplifier; Length of Cable 2 m
Signal Output - 4-20 mA / 0-10 V Switchable
Switching Output - 1 x PNP + 1 x PNP/NPN
Device Type - Standard

LFP0025-A4CMBL

Probe Length - Without Probe
Process Connection/Probe Version - G ¾ A / Rod Probe 1.4404 Interchangeable, 100° C; 10 bar
Housing/Display/Device Connection - Plastic Housing with Display / 1 x M12 Male Connector / 5-Pin
Application Type/Design - Remote Amplifier; Length of Cable 2 m
Signal Output - 4-20 mA / 0-10 V Switchable
Switching Output - 1 x PNP + 1 x PNP/NPN
Device Type - LABS-Cleaned

LFP0025-A4CMC

Probe Length - Without Probe
Process Connection/Probe Version - G ¾ A / Rod Probe 1.4404 Interchangeable, 100° C; 10 bar
Housing/Display/Device Connection - Plastic Housing with Display / 1 x M12 Male Connector / 5-Pin
Application Type/Design - Remote Amplifier; Length of Cable 2 m
Signal Output - 4-20 mA / 0-10 V Switchable
Switching Output - 1 x PNP + 3 x PNP/NPN
Device Type - Standard

LFP0025-A4CMCL

Probe Length - Without Probe
Process Connection/Probe Version - G ¾ A / Rod Probe 1.4404 Interchangeable, 100° C; 10 bar
Housing/Display/Device Connection - Plastic Housing with Display / 1 x M12 Male Connector / 5-Pin
Application Type/Design - Remote Amplifier; Length of Cable 2 m
Signal Output - 4-20 mA / 0-10 V Switchable
Switching Output - 1 x PNP + 3 x PNP/NPN
Device Type - LABS-Cleaned

LFP0025-A4DMB

Probe Length - Without Probe
Process Connection/Probe Version - G ¾ A / Rod Probe 1.4404 Interchangeable, 100° C; 10 bar
Housing/Display/Device Connection - Plastic Housing with Display / 1 x M12 Male Connector / 5-Pin
Application Type/Design - Remote Amplifier; Length of Cable 3.3 m
Signal Output - 4-20 mA / 0-10 V Switchable
Switching Output - 1 x PNP + 1 x PNP/NPN
Device Type - Standard

LFP0025-A4DMBL

Probe Length - Without Probe
Process Connection/Probe Version - G ¾ A / Rod Probe 1.4404 Interchangeable, 100° C; 10 bar
Housing/Display/Device Connection - Plastic Housing with Display / 1 x M12 Male Connector / 5-Pin
Application Type/Design - Remote Amplifier; Length of Cable 3.3 m
Signal Output - 4-20 mA / 0-10 V Switchable
Switching Output - 1 x PNP + 1 x PNP/NPN
Device Type - LABS-Cleaned

LFP0025-A4DMC

Probe Length - Without Probe
Process Connection/Probe Version - G ¾ A / Rod Probe 1.4404 Interchangeable, 100° C; 10 bar
Housing/Display/Device Connection - Plastic Housing with Display / 1 x M12 Male Connector / 5-Pin
Application Type/Design - Remote Amplifier; Length of Cable 3.3 m
Signal Output - 4-20 mA / 0-10 V Switchable
Switching Output - 1 x PNP + 3 x PNP/NPN
Device Type - Standard

LFP0025-A4DMCL

Probe Length - Without Probe
Process Connection/Probe Version - G ¾ A / Rod Probe 1.4404 Interchangeable, 100° C; 10 bar
Housing/Display/Device Connection - Plastic Housing with Display / 1 x M12 Male Connector / 5-Pin
Application Type/Design - Remote Amplifier; Length of Cable 3.3 m
Signal Output - 4-20 mA / 0-10 V Switchable
Switching Output - 1 x PNP + 3 x PNP/NPN
Device Type - LABS-Cleaned

1 - 12 of 384 Part Numbers
