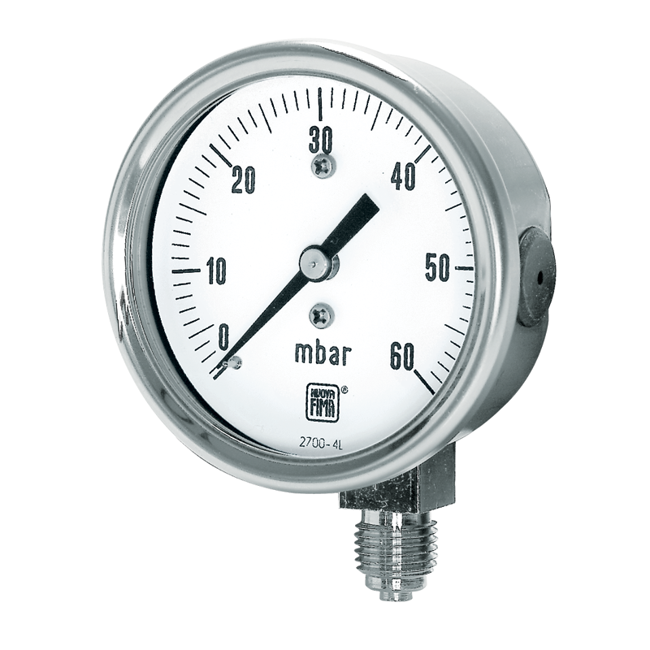

MN9/N DN63 Capsule Pressure Gauge
Brand: Nuova FimaFor measurement of low pressure and vacuum, for use on gas and dry air.
Specifications
Brand
Accuracy Class
- 1.6 as Per EN 837-3
Ambient Temperature Range
- -13° to +149° F (-25° to +65° C)
Case
- Stainless Steel
Dial
- Aluminum, White with Black Markings
Elastic Element
- Copper Alloy
IP Protection Rating
- IP55 as Per EN 60529 / IEC 529
Movement
- Copper Alloy
Over Pressure Limit
- 25 % of Full Scale Value
Pointer
- Aluminum
Process Fluid Temperature
- +212° F, (+100° C)
Ranges
- From 0 to 24 to 0 to 600 INWC (From 0 to 60 Mbar to 0 to 600 Mbar), Vacuum & Combined Vacuum/Pressure (or Equivalent Units)
Ring
- Stainless Steel Polished, Crimped
Socket Material
- Copper Alloy, Nickel-Plated
Thermal Drift
- ± 0.4 % / 10° C of Range (Starting from 68° F / 20° C)
Window Material
- Plastic
Working Pressure
- Maximum
Zero Adjustment
- External
